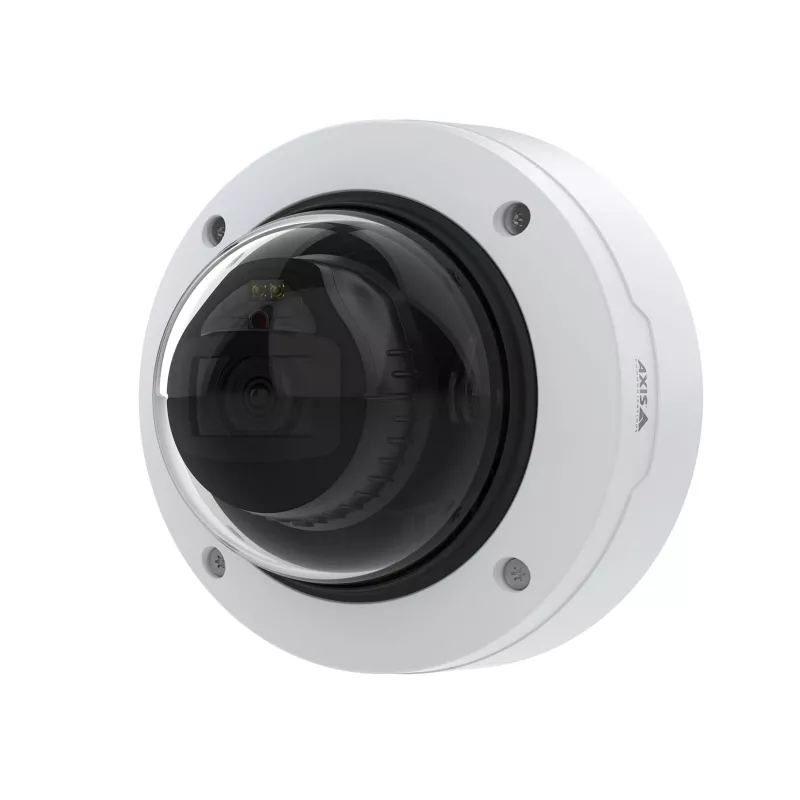

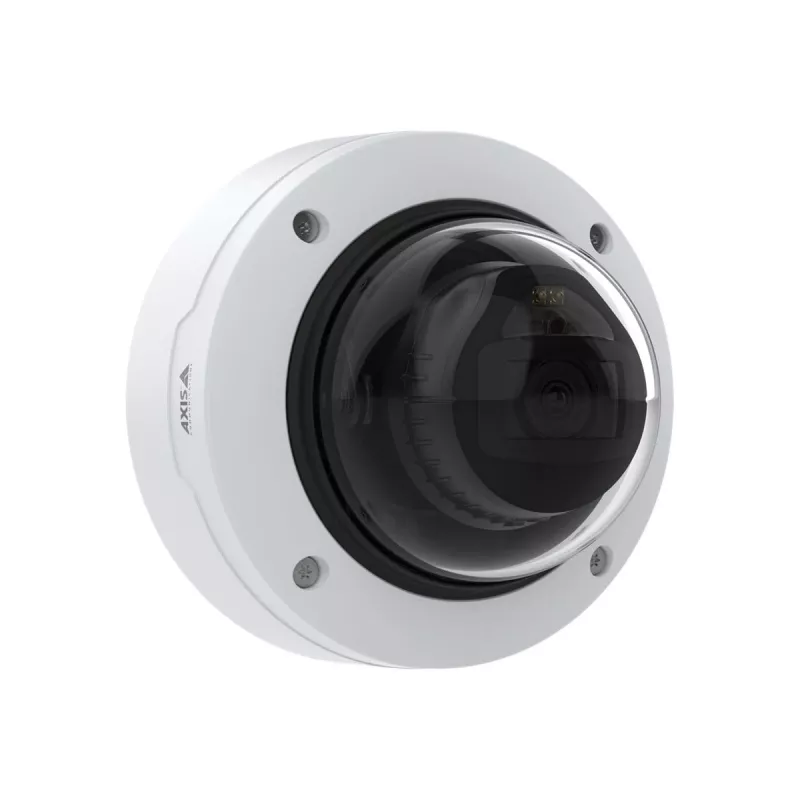

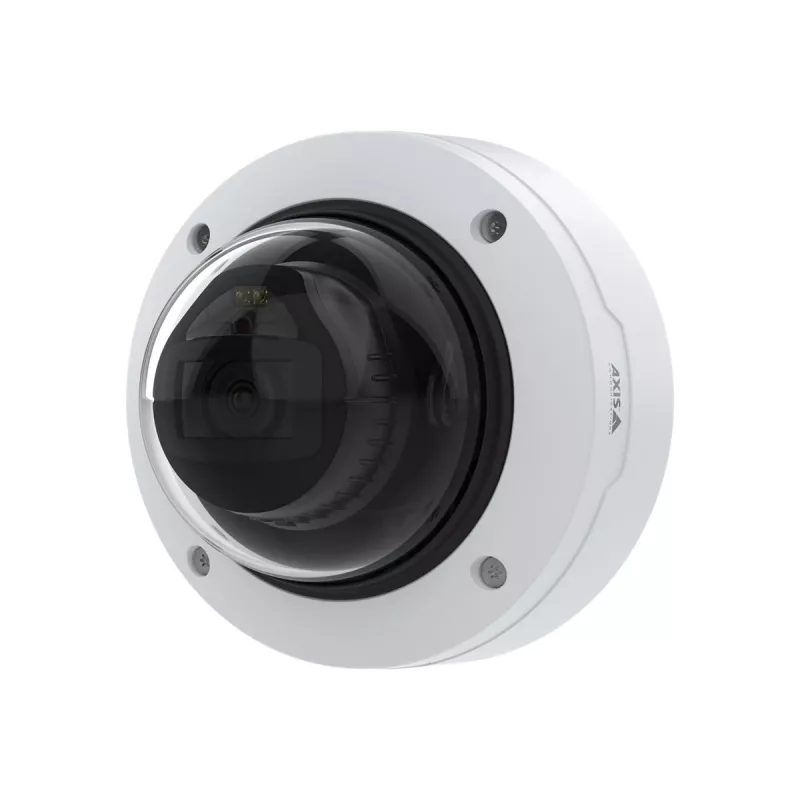

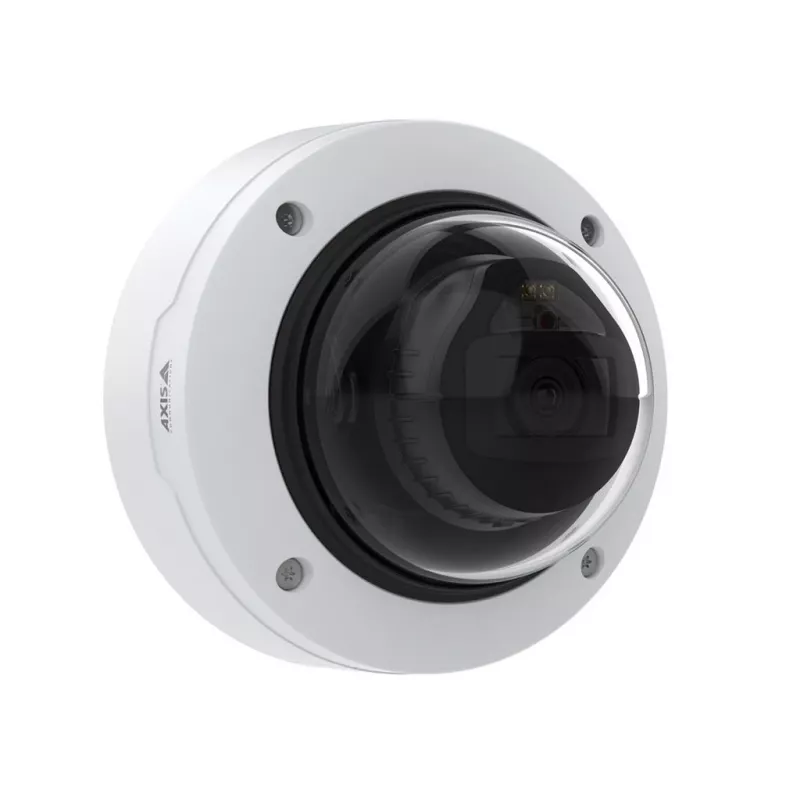

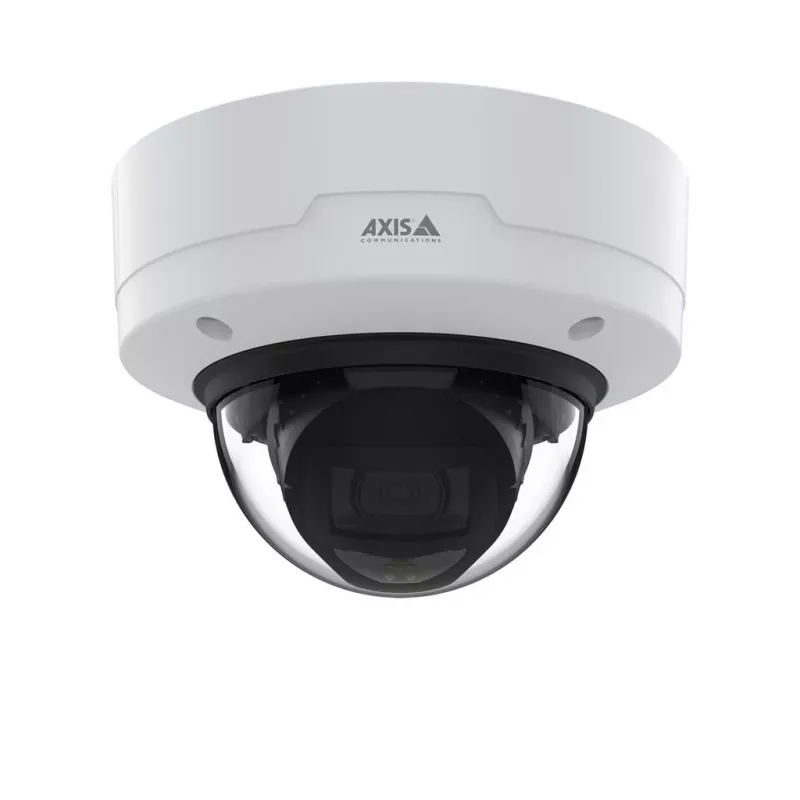

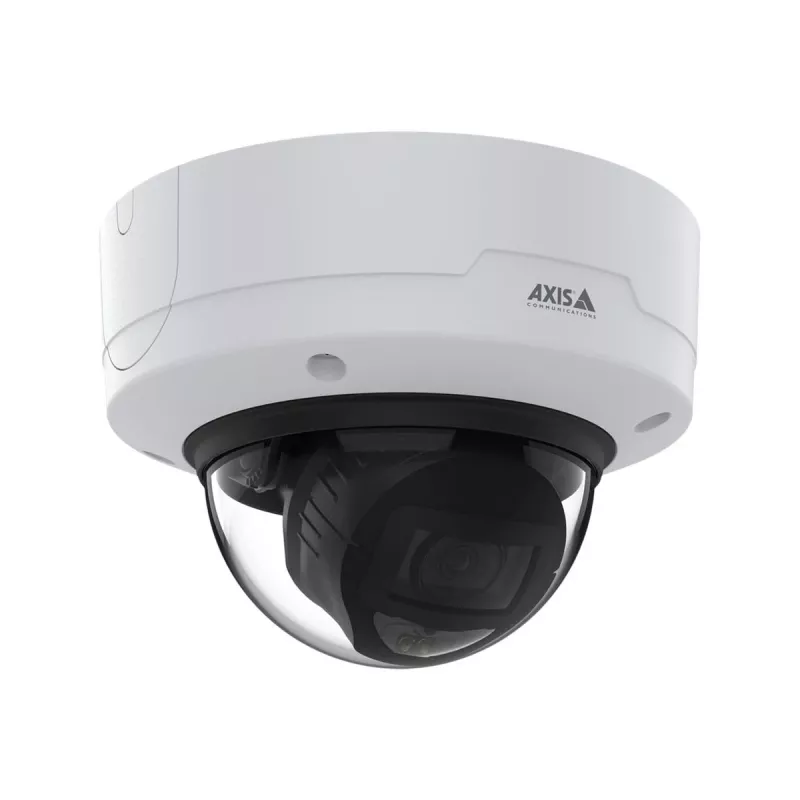

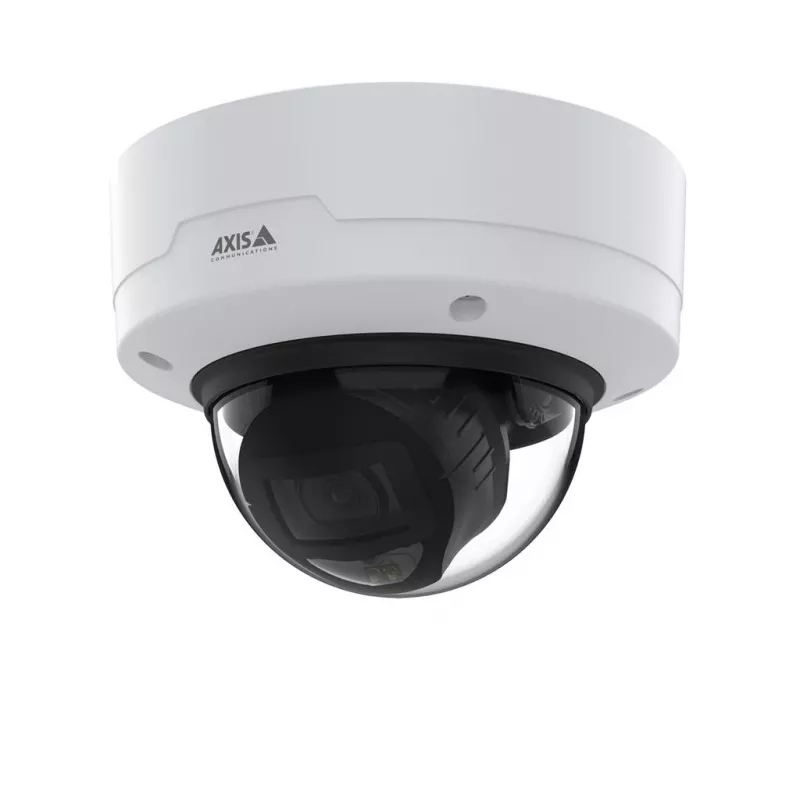

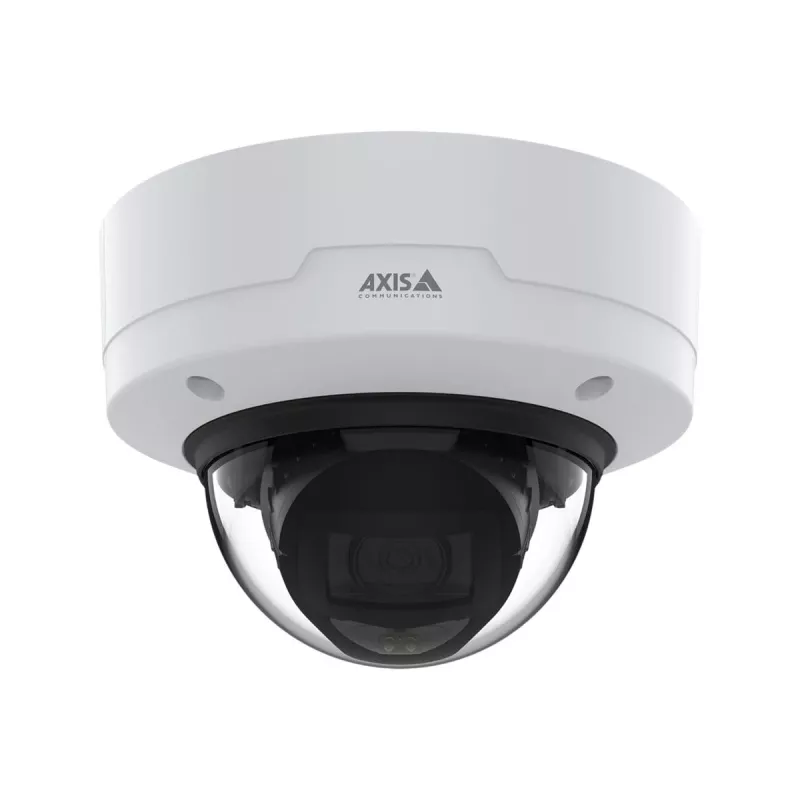

IP security camera Axis 02329-001 Dome 2592 x 1944 pixels

AXIS P3267-LV (model 02329-001) is an indoor dome IP security camera with a 2592 x 1944 resolution and wired Ethernet connectivity. It supports ceiling or wall mounting, uses a 25.4 / 2.7 mm CMOS sensor with a 3–8 mm focal length, and captures smooth video at up to 30 fps with a minimum illumination of 0.13 lx. The camera offers pan range of -190 to 190° and tilt range of -10 to 80°, plus IK10 mechanical protection and built-in cybersecurity features.

Advantages

The camera integrates Axis Lightfinder 2.0, Forensic WDR and OptimizedIR to deliver clear images across varying light conditions, and its latest Axis system-on-chip with a deep learning processing unit enables advanced on-edge analytics. AXIS Object Analytics provides detection and classification of people, vehicles and vehicle types. Audio and I/O connectivity allow system integration and extension, while wired Ethernet ensures reliable network connection for continuous monitoring.

Suitable for

• Indoor surveillance in offices, retail and public buildings
• Entrances and corridors requiring person and vehicle detection
• Ceiling- or wall-mounted monitoring where vandal resistance (IK10) is required

Key specifications

• Resolution: 2592 x 1944 pixels
• Frame rate: up to 30 fps
• Sensor: CMOS, optical size 25.4 / 2.7 mm
• Focal length: 3–8 mm
• Minimum illumination: 0.13 lx
• Pan range: -190° to 190°; Tilt range: -10° to 80°
• Connectivity: wired Ethernet (no Wi‑Fi)
• Placement: indoor; Mounting: ceiling or wall
• Protection rating: IK10
• Color: White; Weight: 0.8 kg

How to use

Mount the AXIS P3267-LV on a ceiling or wall using appropriate fixtures, connect it to a wired Ethernet network and configure basic settings through Axis configuration tools or supported VMS. Adjust pan and tilt to cover the desired area and set analytics profiles (AXIS Object Analytics, detection rules) using the camera interface. Ensure OptimizedIR and Forensic WDR settings match the scene lighting for best image quality.

Recommendations

Install the camera in protected indoor locations and connect to a secured network; enable built-in cybersecurity options and keep firmware updated. For accurate detection, calibrate object analytics for the specific environment and provide sufficient network bandwidth for 2592 x 1944 video streams at 30 fps.
