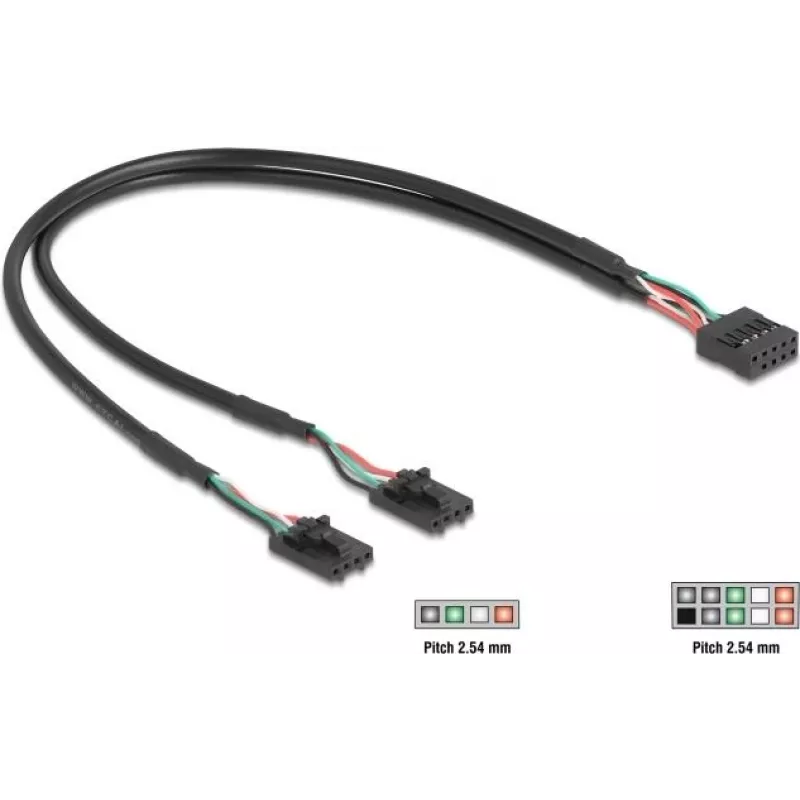

Internal USB cable DELOCK 84513 — USB 2.0 4-pin to 10-pin, 0.3 m, black

DELOCK 84513 is an internal USB cable designed to connect devices or modules with USB pin headers to a motherboard. The cable has a 4-pin USB 2.0 connector on one end and a 10-pin USB 2.0 connector on the other, with a length of 0.3 m and a black jacket. It supports USB 2.0 signaling and is intended for internal connections such as front-panel USB headers, internal hubs or adapters in desktop computer systems.

Advantages

The cable provides a compact, fixed-length internal connection that preserves USB 2.0 signal integrity over short distances inside a computer case. Its 4-pin to 10-pin configuration enables flexible connection options between different header types without the need for external adapters. A black jacket reduces visual contrast inside the chassis and the short 0.3 m length minimizes cable clutter while maintaining reliable data transfer for USB 2.0 devices.

Suitable for

• Connecting front-panel USB ports to the motherboard header
• Linking internal USB hubs or adapters to a single motherboard header
• Extending or adapting USB pin header connections within desktop systems

Key specifications

• Connector A: USB 2.0 4-pin internal header
• Connector B: USB 2.0 10-pin internal header
• USB standard: USB 2.0 signaling
• Cable length: 0.3 m
• Colour: Black

How to use

Disconnect power to the system before connecting internal cables. Identify the motherboard USB header and align the 10-pin connector accordingly, ensuring the orientation matches the header pinout. Connect the 4-pin end to the device or module with the corresponding USB pin header. After secure seating of both connectors, route the cable to avoid interference with fans or moving parts and restore power to verify device detection and functionality under the operating system.

Recommendations

Use this cable only for internal, low-voltage USB 2.0 connections inside a powered-off system. Avoid bending the cable sharply near the connectors and keep the length short to maintain signal quality. For USB 3.x devices or external connections, use a cable and connectors rated for the appropriate USB standard.
