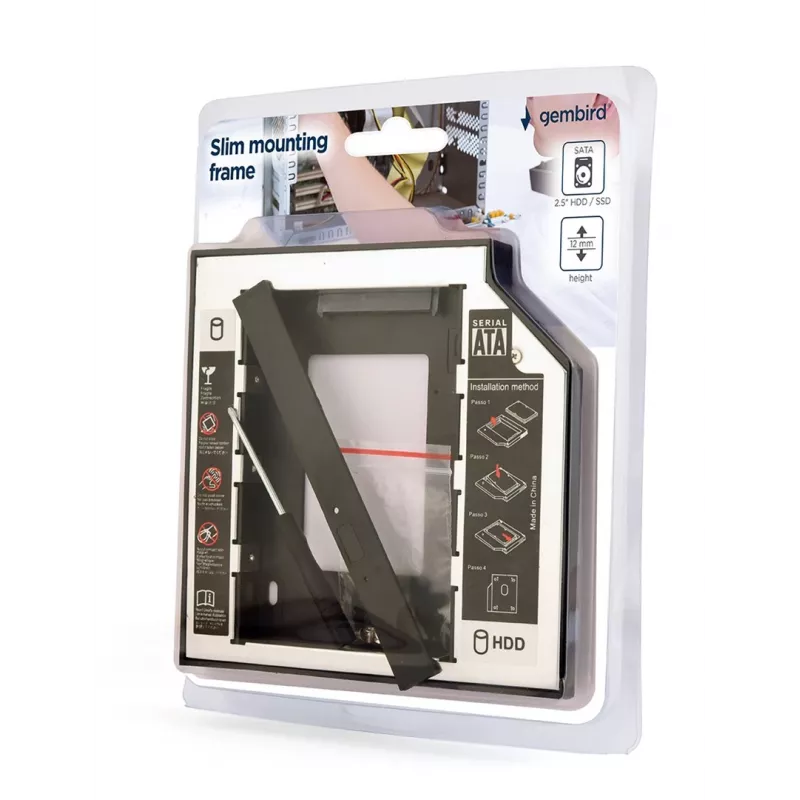

Internal SATA adapter Gembird MF-95-02

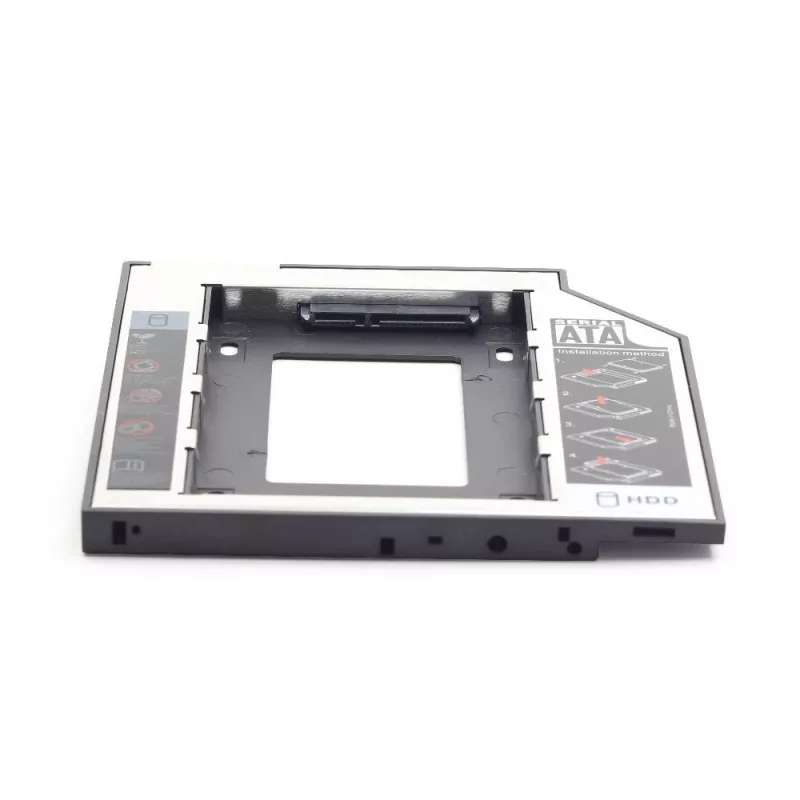

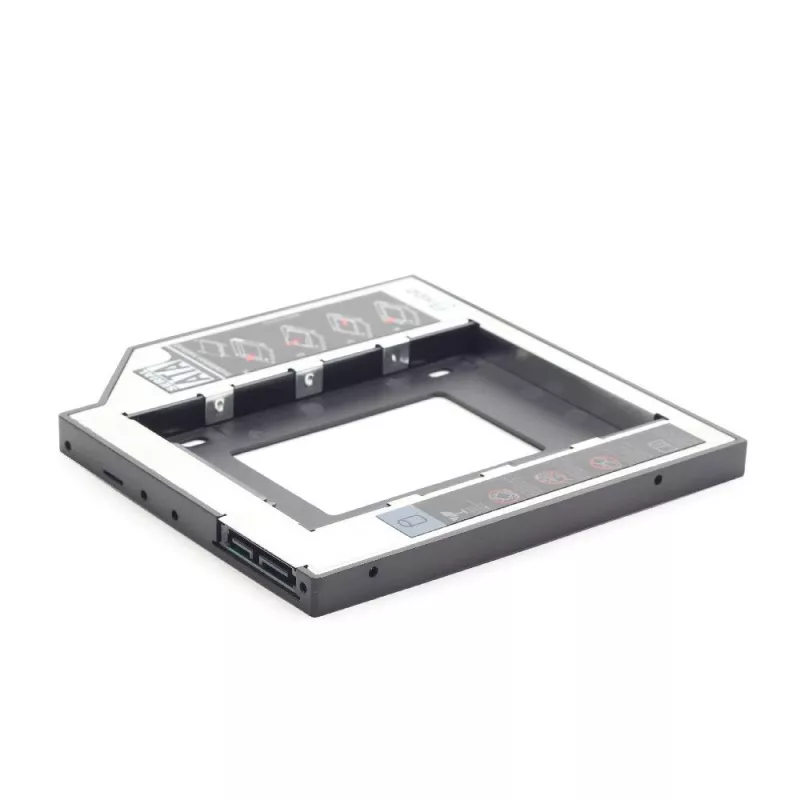

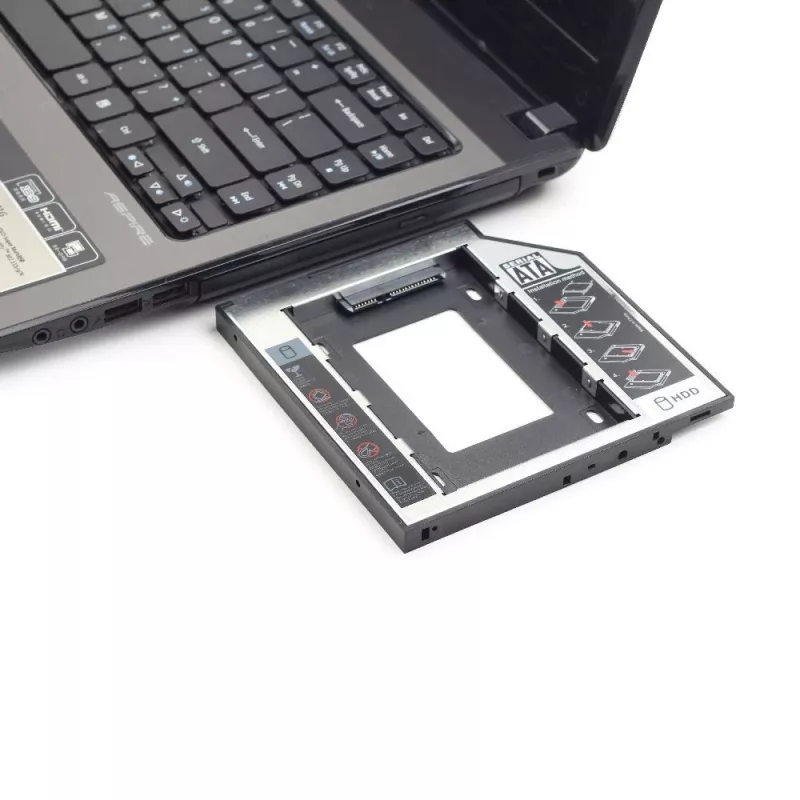

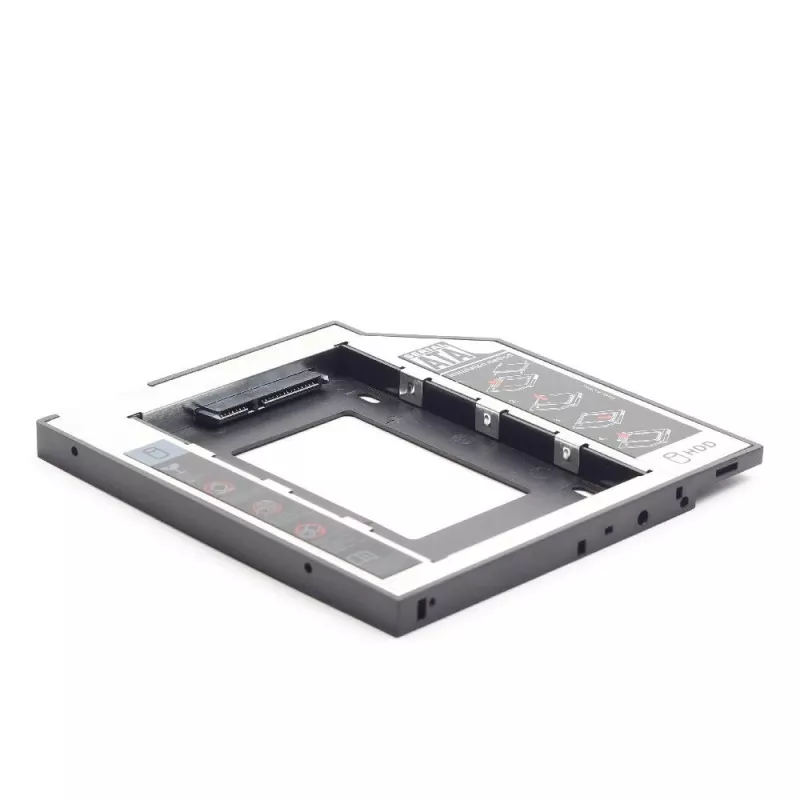

Slim mounting frame for 2.5'' drive to 5.25'' bay, for drive up to 12 mm. The Gembird MF-95-02 internal SATA adapter allows installation of a 2.5" SATA HDD or SSD into a slim 5.25" slim SATA bay, for example replacing a laptop or small-form-factor desktop optical drive. It provides a compact, low-profile solution to add internal storage without external enclosures.

Advantages

The adapter is designed for installation into a 5.25" SATA slim bay and supports drives up to 12 mm thick. It uses standard SATA host and output interfaces, requires no drivers, and has compact dimensions (130 x 127 x 12.7 mm) and low weight (0.081 kg), making it easy to fit into slim PC or laptop chassis.

Suitable for

Key specifications

How to use

Power off the computer and disconnect it from mains. Remove the slim 5.25" optical drive from the drive bay, slide the Gembird MF-95-02 adapter into the bay and secure it according to your chassis screws or mounting mechanism. Install a compatible 2.5" SATA drive (up to 12 mm thick) into the adapter and connect the internal SATA power and data cables to the motherboard and PSU. Reassemble the case and power on the system; the drive should be recognised automatically without additional drivers.

Recommendations

Ensure the installed 2.5" drive does not exceed 12 mm in thickness. When handling internal components, observe electrostatic discharge (ESD) precautions and verify SATA power/data cable connections before powering the system.
