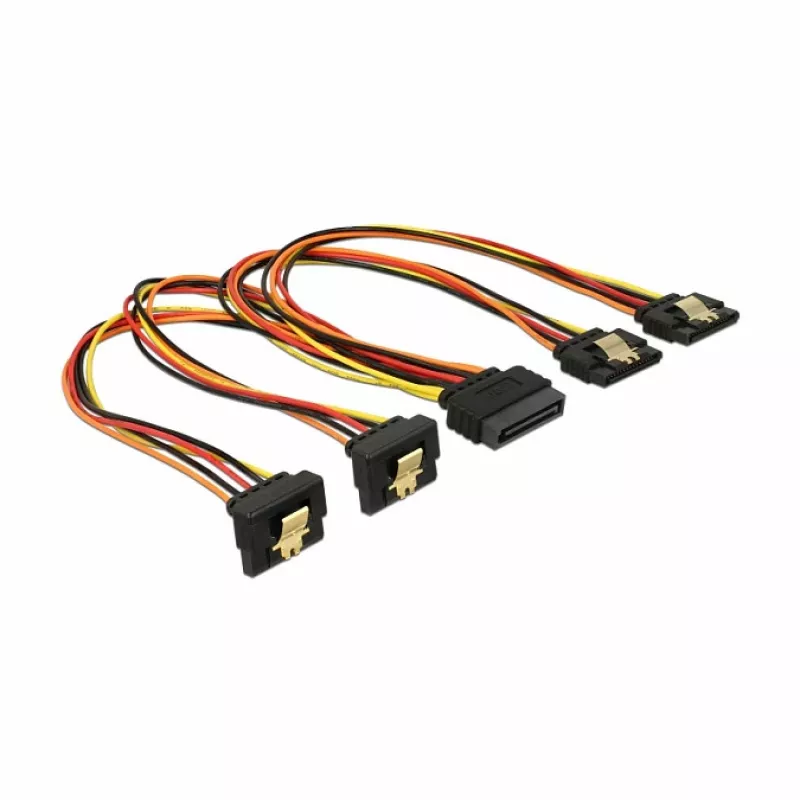

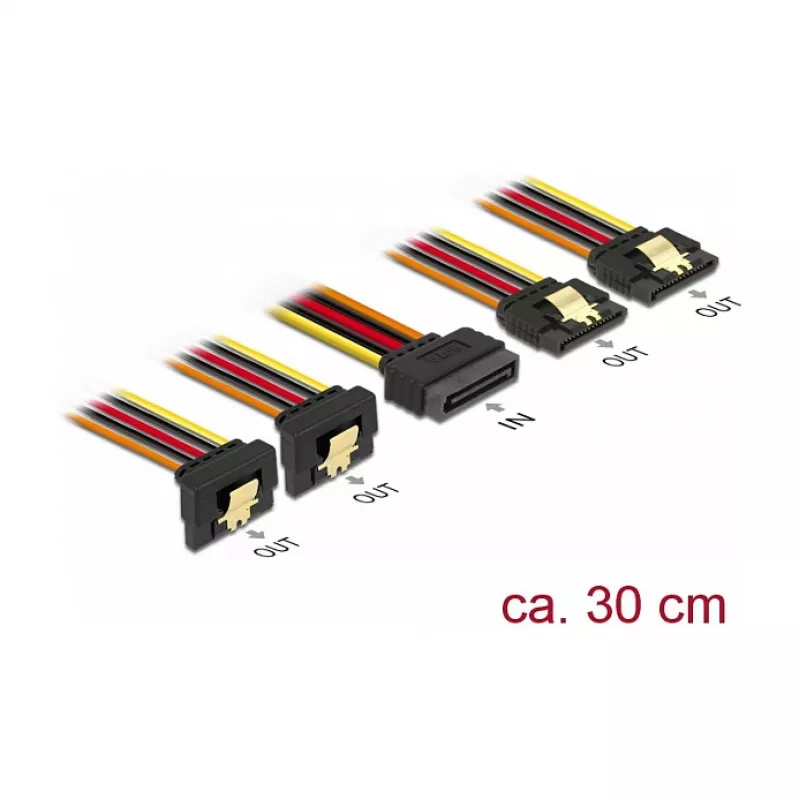

Internal power cable DeLOCK 60151 0.3 m 4 x SATA 15-pin

The DeLOCK 60151 internal power cable is 0.3 m long and provides power distribution from one SATA 15-pin power connector to four SATA devices. It is intended for use inside PC cases where a single power supply connector must feed multiple SATA drives. The cable features secure metal clips on the receptacles and a plug design that ensures a reliable connection.

Advantages

This internal power cable supports powering up to four SATA devices from a single SATA 15-pin power connector, saving free connectors on the power supply. The compact 0.3 m length makes it suitable for use in confined spaces inside a PC case. Metal locking clips on the SATA receptacles and a plug with appropriate clearance help maintain a stable and secure connection during operation.

Suitable for

• Connecting multiple SATA hard drives or SSDs to one SATA power output
• Compact PC builds and small form factor cases
• System upgrades where additional SATA devices are added but PSU connectors are limited

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 60151
• EAN: 4043619601516
• Cable length: 0.3 m
• Connector 1: 4 x SATA 15-pin
• Connector 2: SATA 15-pin
• Product colour: Black, Orange, Red, Yellow

How to use

Locate a free SATA 15-pin power connector from the power supply and insert the plug firmly into it. Route the cable inside the PC case to the target devices and connect each SATA 15-pin receptacle to a SATA power inlet on the drives until each click of the metal locking clip confirms engagement. Ensure connectors are aligned correctly before applying force.

Recommendations

Do not exceed the power capacity of the power supply or the combined current rating of SATA devices connected via this cable. Avoid excessive bending or pulling of the cable and keep it away from moving parts such as cooling fans. If devices draw high current, consider using separate dedicated power connectors from the PSU.
