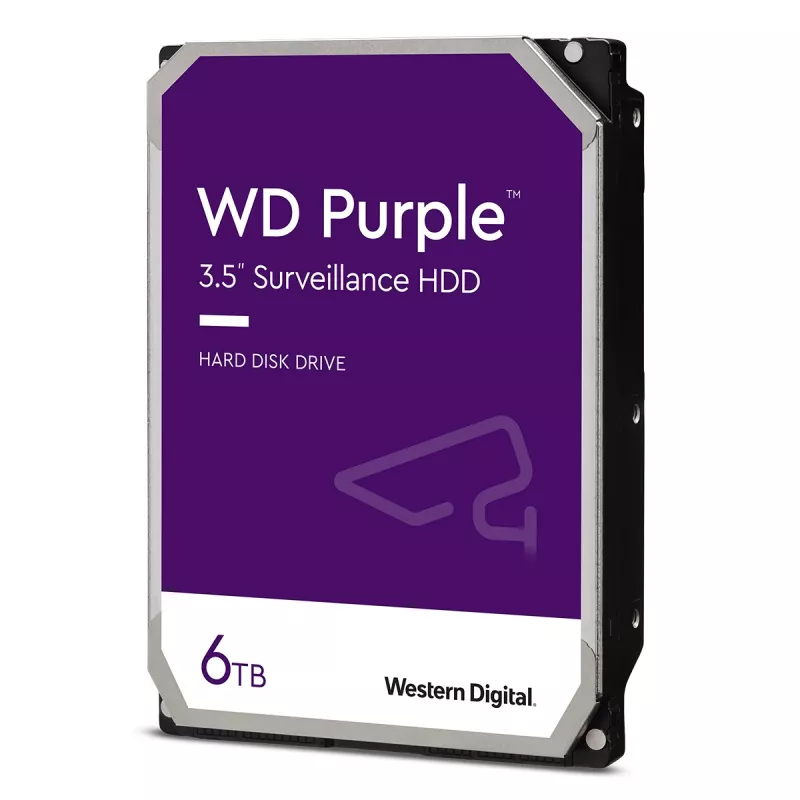

Internal Hard Drive Western Digital 6 TB 3.5 inch Serial ATA WD63PURZ

The Western Digital 6 TB 3.5" Serial ATA WD63PURZ is an internal surveillance-class hard drive designed for 24/7 NVR and DVR systems. Built to tolerate higher operating temperatures and vibration common in security environments, this 6 TB drive provides surveillance-optimized storage with a 3.5" form factor, SATA interface and a 0.256 GB HDD cache for efficient data handling.

Advantages

WD63PURZ is engineered for continuous surveillance use with AllFrame™ technology that improves ATA streaming to reduce frame loss and enhance video playback. The drive offers an increased workload rating (up to 180 TB/year) compared with desktop drives, supports multiple camera streams (up to 64 single-stream HD cameras for capacities 6 TB and above), and has an MTBF of up to 1 million hours. Additional features include improved power efficiency in recent models, tarnish-resistant components, and broad compatibility with a wide range of DVR/NVR enclosures and chipsets.

Suitable for

• NVR and DVR surveillance systems operating 24/7
• Multi-camera installations requiring support for many simultaneous streams
• Security systems where reliable, long-term video retention is needed

Key specifications

• Model: WD63PURZ
• Capacity: 6000 GB (6 TB)
• Form factor: 3.5"
• Interface: Serial ATA (SATA)
• HDD cache: 0.256 GB
• Workload rating: up to 180 TB/year
• MTBF: up to 1,000,000 hours
• Weight: 0.57 kg
• EAN: 718037887968

How to use

Install the WD63PURZ into a compatible 3.5" drive bay of your DVR/NVR or server following the manufacturer's installation guidelines. Connect the drive to the system using the SATA data and power connectors, configure the storage within the recorder's interface, and initialize or format the drive as required by the device. For systems with multiple drives or RAID configurations, follow your recorder or NAS documentation for proper mounting and configuration.

Recommendations

Use WD63PURZ in surveillance systems that support 3.5" SATA drives and are rated for continuous operation; enable device monitoring (for example, via Western Digital Device Analytics where supported) and keep firmware and system software up to date to maintain optimal performance and reliability.
