Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035

Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
Intellinet Industrial IP55 19 inch Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035
R107,332
Industrial Network Cabinet - Floor-standing with IP55 rating - protection against dust ingress and water jetsThe IP55 Free-standing Cabinet from Intellinet Network Solutions is equipped to handle challenging environmental conditions. The cabinet's powder-coated steel housing is compliant with IEC st... Read More
Stock 12 Code 1743801 Brand Intellinet Model 716147 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Industrial Network Cabinet - Floor-standing with IP55 rating - protection against dust ingress and water jets

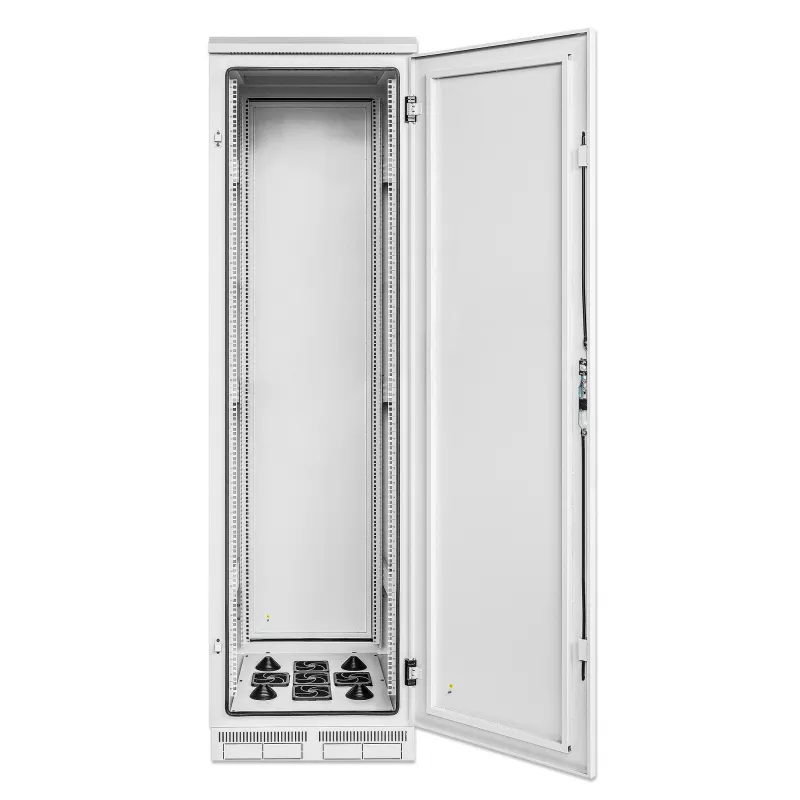

The IP55 Free-standing Cabinet from Intellinet Network Solutions is equipped to handle challenging environmental conditions. The cabinet's powder-coated steel housing is compliant with IEC standard EN 60529 for safe protection against dust ingress and water jets from any direction. Four sealed cable glands on the bottom panel and pre-punched openings on all sides of the plinth allow for cable entry. To ensure the neatly sealed design, the cabinet comes fully assembled, which also makes your installation quick and convenient. The sturdy 19” steel construction holds heavy rack-mounted equipment up to 1000 kg (2200 lbs.) and can be secured with a 3-point door lock on the swing handle. This IP55 19" cabinet is available in 27U and 42U sizes.

Includes four-fan ventilation unit for efficient cooling

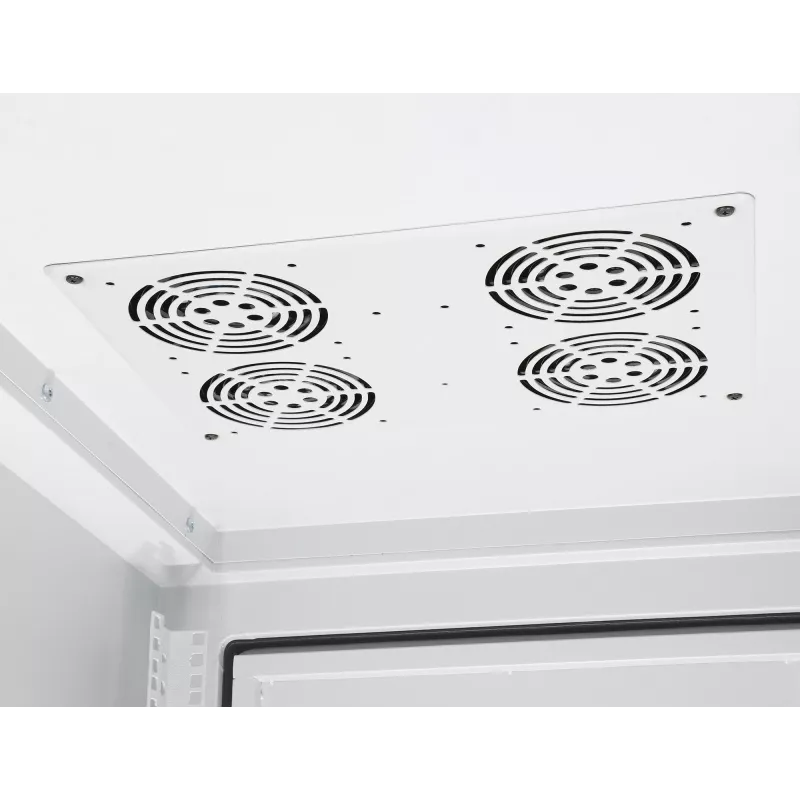

To keep your network equipment cool, this cabinet has a built-in, roof-mounted four-fan ventilation unit. It provides improved performance and longer life to your networking components through reliable cooling and ideal air circulation.

Intellinet Industrial IP55 19" Network Cabinet with Integrated Fans, 42U 800 mm (31.5 in.) Depth, Roof-mounted Four-fan Ventilation Unit, Dust-ingress and Water-jet Protection, Floor-standing, Assembled, Light Gray RAL7035. Type: Wall mounted rack, Rack capacity: 42U, Maximum weight capacity: 1000 kg, Key lock, International Protection (IP) code: IP55. Weight: 115 kg. Product colour: Grey

Key Highlights
  • IP55-rated for industrial applications: protection against dust ingress and water jets from any direction
  • Sturdy, secure steel construction with antistatic powder coating
  • Usable installation depth: 157 mm (6.2 in.) to 687 mm (27 in.)
  • Maximum load capacity of 1000 kg (2200 lbs.)
  • Quiet roof-mounted, four-fan ventilation unit with air filters and a noise level of only 24.9 db (A)
  • Efficient heat dissipation for a wide operating temperature up to 50°C (122°F)

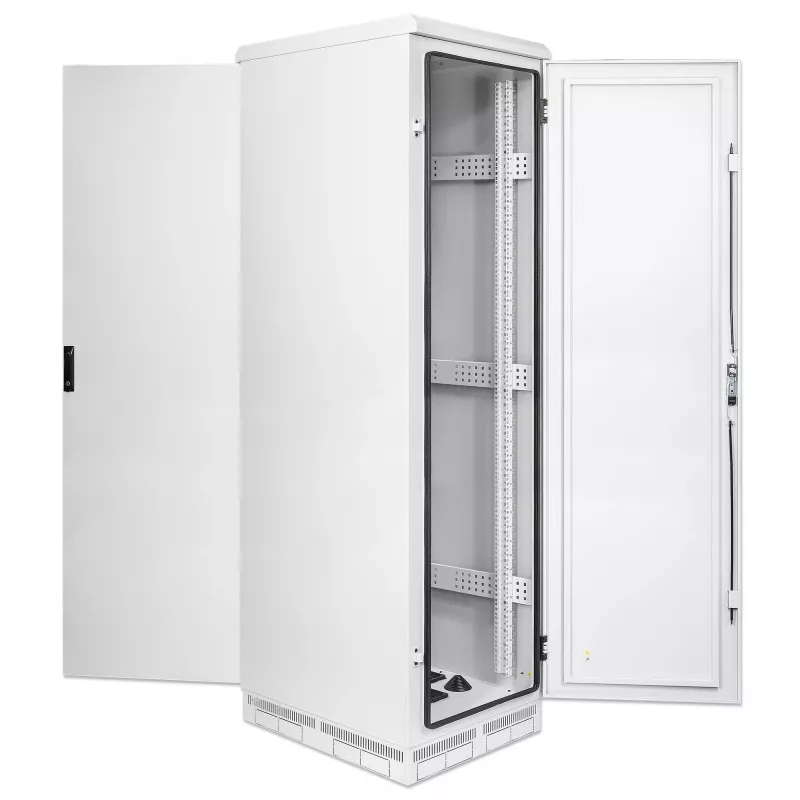

  • Front and rear steel doors that can be opened 120°
  • Earthing kit included
  • Swing handle with three-point door lock and two included keys

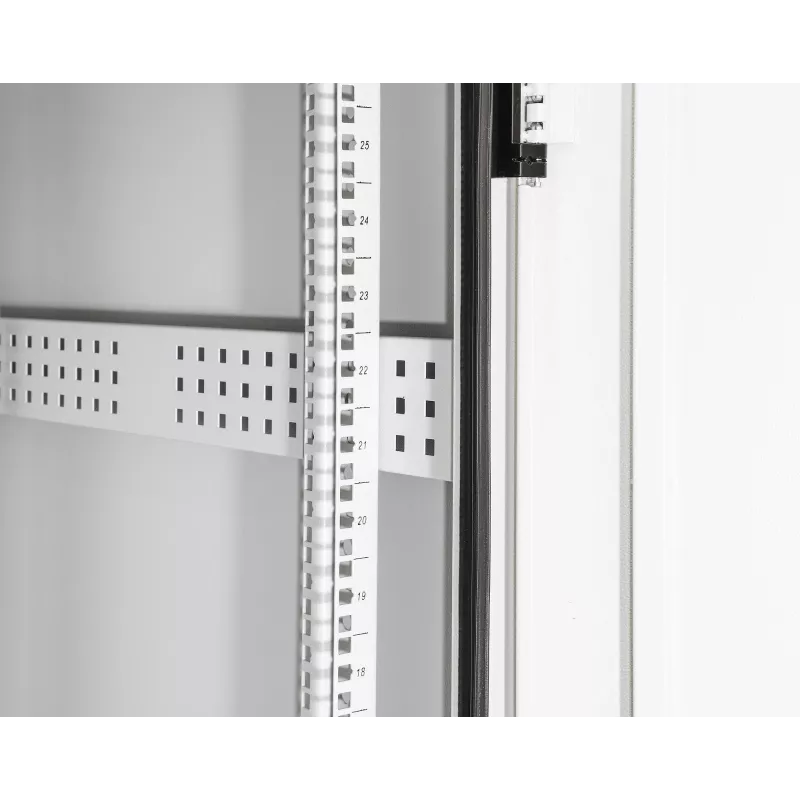

  • Numbered rackmount space height units
  • Bottom panel with four sealed cable-entry opening glands (80 mm/3.2 in. diameter) and five optional fan openings with covers
  • Perforated plinth with pre-punched cable entry openings on front, rear, left and right panels
  • Ships fully assembled for quick installation
  • 42U Wall mounted rack 1000 kg
  • Steel
  • Grey
Specifications
AC input frequency
50 - 60 Hz
AC input voltage
110 - 240 V
Castor wheels
No
Compliance certificates
CE, RoHS
Depth
800 mm
Front door key lock
Yes
Height
2145 mm
Input current
10 A
International Protection (IP) code
IP55
Key lock
Yes
Manual
Yes
Material
Steel
Maximum weight capacity
1000 kg
Mounting kit
Yes
Noise level
24.9 dB
Number of fans
4 fan(s)
Number of nuts
10
Number of screws
10
Nuts included
Yes
Operating temperature (T-T)
-10 - 50 °C
Package weight
128 kg
Product colour
Grey
Rack capacity
42U
Screws included
Yes
Sustainability compliance
Yes
Type
Wall mounted rack
Wall mounting kit
Yes
Warranty period
3 year(s)
Weight
115 kg
Width
600 mm

Leaflet

Open Leaflet

Manual

Open Manual
