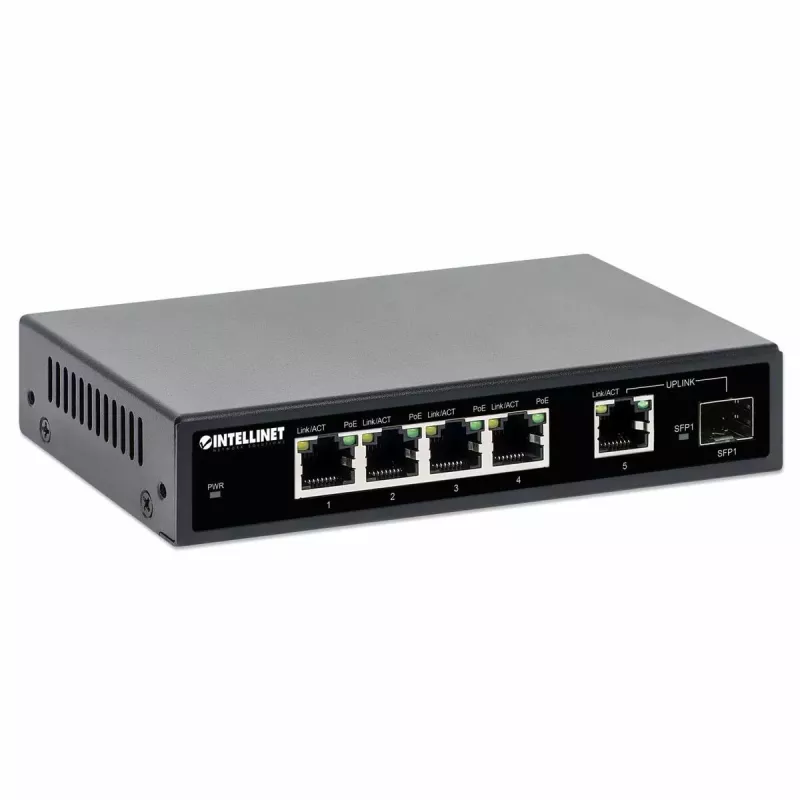

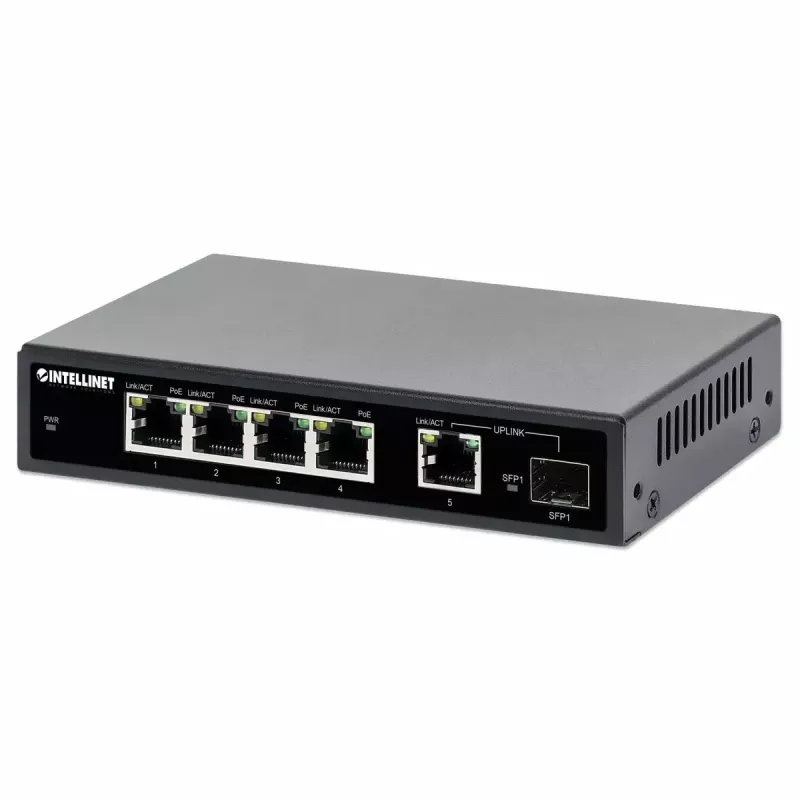

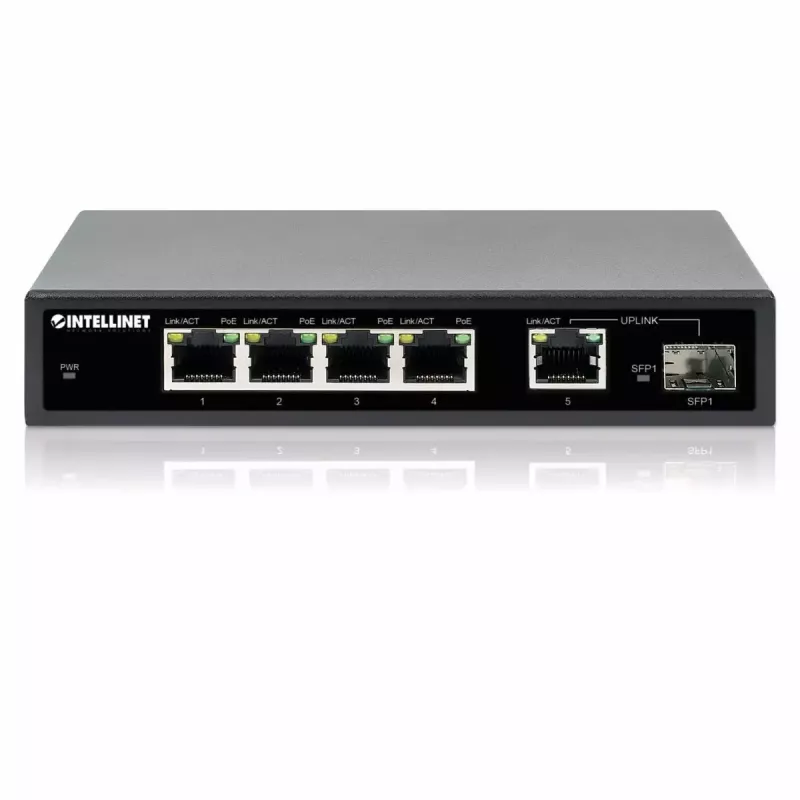

Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Port 91W Power Budget

The Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Port provides five Gigabit Ethernet ports, including four high-power PoE+ PSE ports, and one SFP slot. It supports IEEE 802.3at/af Power over Ethernet to deliver both data and up to 30 W of power per port over Cat5e/Cat6 cables, and offers Gigabit uplinks for connection to a network backbone, server or NVR. The compact desktop unit can also be wall-mounted and has a total PoE power budget of 91 W.

Advantages

This switch supplies IEEE 802.3at-compliant PoE+ power up to 30 W per port enabling direct power to devices such as wireless access points, VoIP phones and IP cameras without separate power adapters. Gigabit RJ45 and SFP uplinks provide high-speed connectivity to core networks or recording devices. Built-in protections against short circuit, overload and high voltage protect connected equipment, and the small form factor supports both desktop placement and wall mounting.

Suitable for

• Powering wireless LAN access points and bridges
• Supplying PoE to VoIP phones
• Connecting and powering IP video cameras and NVR systems
• Small office or branch network edge deployments

Key specifications

• Ports: 5 × Gigabit Ethernet (10/100/1000), 4 PoE+ PSE ports
• SFP: 1 × SFP transceiver slot
• PoE standard: IEEE 802.3at / IEEE 802.3af
• Maximum PoE power per port: up to 30 W
• Total PoE power budget: 91 W
• Switching capacity: 12 Gbit/s
• MAC address table: 2000 entries
• Weight: 0.8 kg
• Colour: Black

How to use

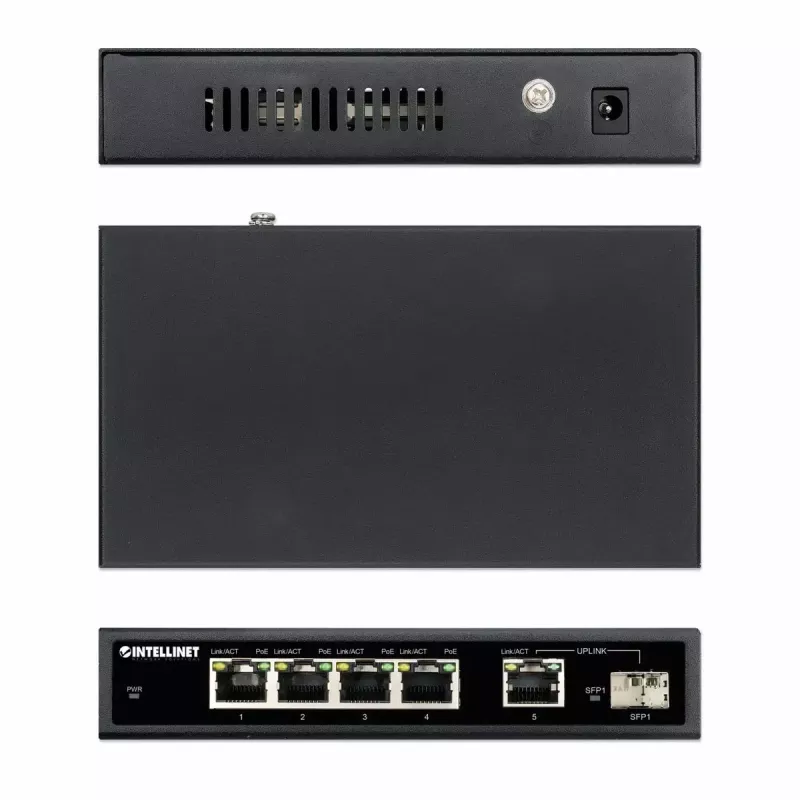

Place the switch on a flat surface using the included rubber feet or mount it on a wall using the four built-in mounting holes. Connect the uplink port (RJ45 or SFP) to your network backbone, server or NVR. Attach PoE-compatible devices to the PoE-enabled RJ45 ports using Cat5e or Cat6 cables; the switch will automatically detect and supply power to IEEE 802.3af/at devices. Non-PoE devices can be connected to any remaining ports without affecting operation.

Recommendations

For reliable operation, distribute PoE load across ports to avoid exceeding the 91 W power budget, use quality Cat5e/Cat6 cables for both data and power delivery, and place the switch in a ventilated area away from direct heat sources.
