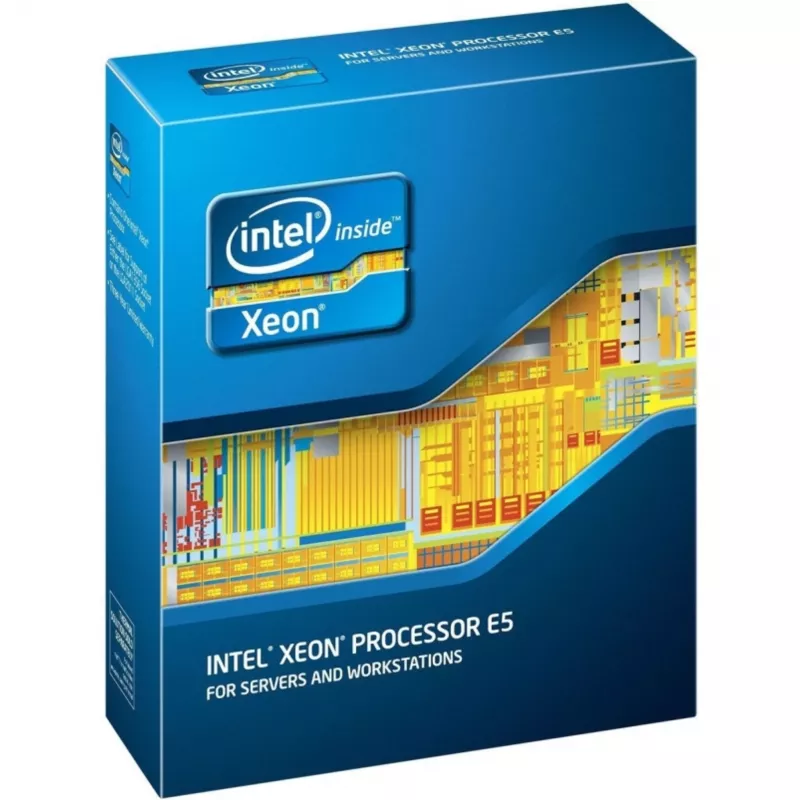

Intel Xeon E5-2609V3 1.9 GHz 6-Core 6-Thread LGA 2011-v3 Server Processor

The Intel Xeon E5-2609V3 is a high-performance server and workstation processor built on the 22 nm Haswell-EP architecture. Designed for the LGA 2011-v3 socket, it delivers reliable computing power for data centers, enterprise applications, and virtualization environments. With 6 cores and 6 threads, a base clock speed of 1.9 GHz, and 15 MB Intel Smart Cache, this processor balances efficiency and performance for demanding workloads.

Advantages

Optimized for multi-threaded applications, the Intel Xeon E5-2609V3 offers excellent value for server builds requiring stability and ECC memory support. Its 85 W TDP ensures efficient thermal management, while support for DDR4 memory up to 2133 MHz and 40 PCI Express 3.0 lanes provides ample bandwidth for storage and networking.

Suitable for

• Enterprise servers and workstations
• Virtualization and cloud computing
• Data analytics and database management
• High-performance computing (HPC) clusters

Key specifications

• Processor Family: Intel Xeon E5 v3
• Number of Cores: 6
• Number of Threads: 6
• Base Clock Speed: 1.9 GHz
• Intel Smart Cache: 15 MB
• Socket Type: LGA 2011-v3
• Lithography: 22 nm
• Thermal Design Power (TDP): 85 W
• Supported Memory: DDR4 1600/1866/2133 MHz
• Max Memory Size: 768 GB
• Memory Channels: 4
• ECC Memory Supported: Yes
• PCI Express Revision: 3.0
• Max PCI Express Lanes: 40
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel AVX2
• Intel Virtualization Technology (VT-x): Yes
• Intel VT-d for Directed I/O: Yes
• Intel AES New Instructions: Yes

Recommendations

For optimal performance, pair this processor with compatible LGA 2011-v3 motherboards and ECC DDR4 memory. Ideal for upgrading existing server infrastructure or building cost-effective workstations.
