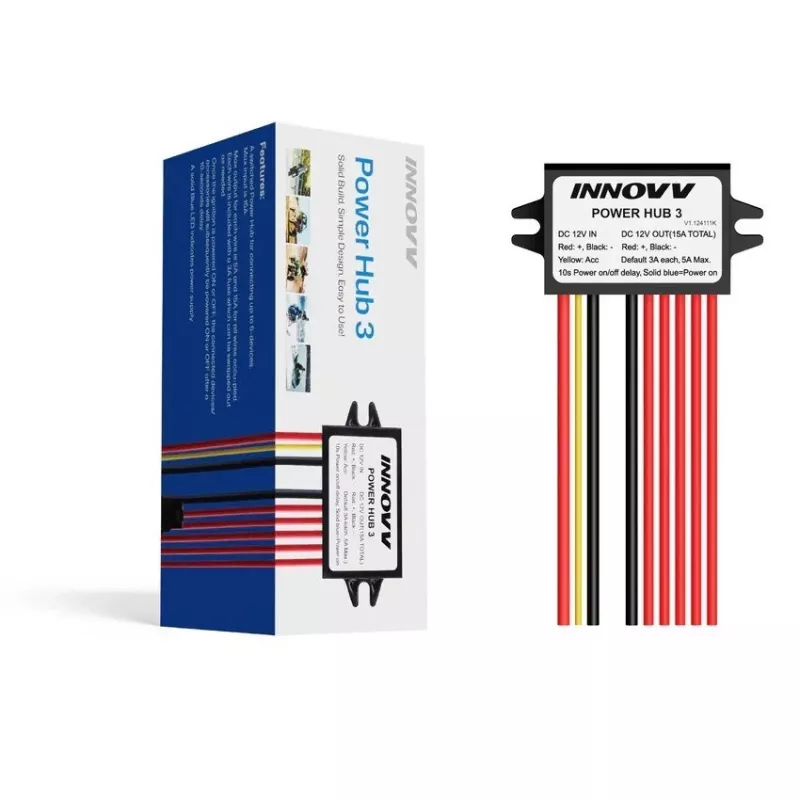

INNOVV Power Hub 3 - Waterproof 12V Power Splitter for 5 Devices with Battery Protection and Fuses

With an IP67 waterproof rating and fully potted construction, the INNOVV Power Hub 3 delivers reliable 12V power distribution to up to five devices simultaneously, making it ideal for motorcycles, ATVs, UTVs, and marine applications.

Overview

The Power Hub 3 centralizes accessory wiring by connecting directly to the battery via ring terminals. An ignition trigger wire automatically switches four channels on/off with the vehicle, while a fifth always-on channel provides continuous power for devices like alarm systems or GPS trackers. Each switched channel supports up to 2A, the always-on channel handles up to 5A, and total output is capped at 10A. Built-in fuses, reverse polarity protection, and a low voltage cut-off at approximately 11.5V safeguard both the hub and connected devices.

What stands out

• IP67 waterproof and fully potted ABS housing for harsh environments
• Low voltage cut-off prevents battery drain
• LED status indicator for quick power and fault diagnosis
• Compact and lightweight design for easy installation in tight spaces
• Wide operating temperature range from -20°C to 80°C

Technical details

• Input voltage: DC 12V
• Output channels: 5 (4 switched, 1 always-on)
• Max current per switched channel: 2A
• Max current always-on channel: 5A
• Total max output current: 10A
• Waterproof rating: IP67
• Battery protection: Low voltage cut-off (approx. 11.5V)
• Over-current and short-circuit protection via fuses
• Reverse polarity protection
• Input connector: Ring terminals
• Output connector: JST-SM 2-pin

Our verdict

A rugged, compact power distribution hub that excels in demanding environments, offering robust protection and versatile connectivity for your vehicle's accessories.
