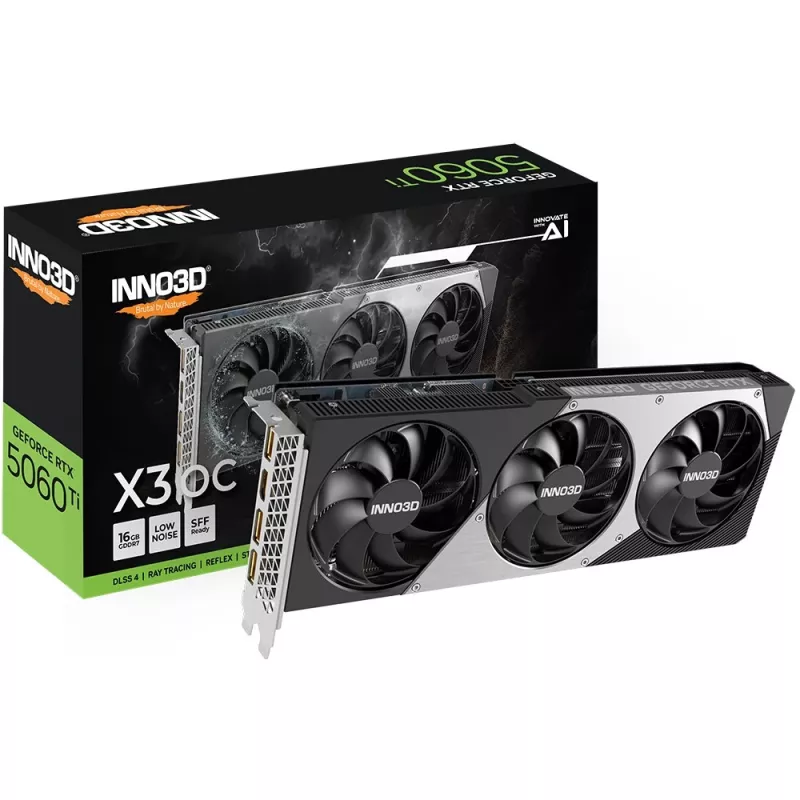

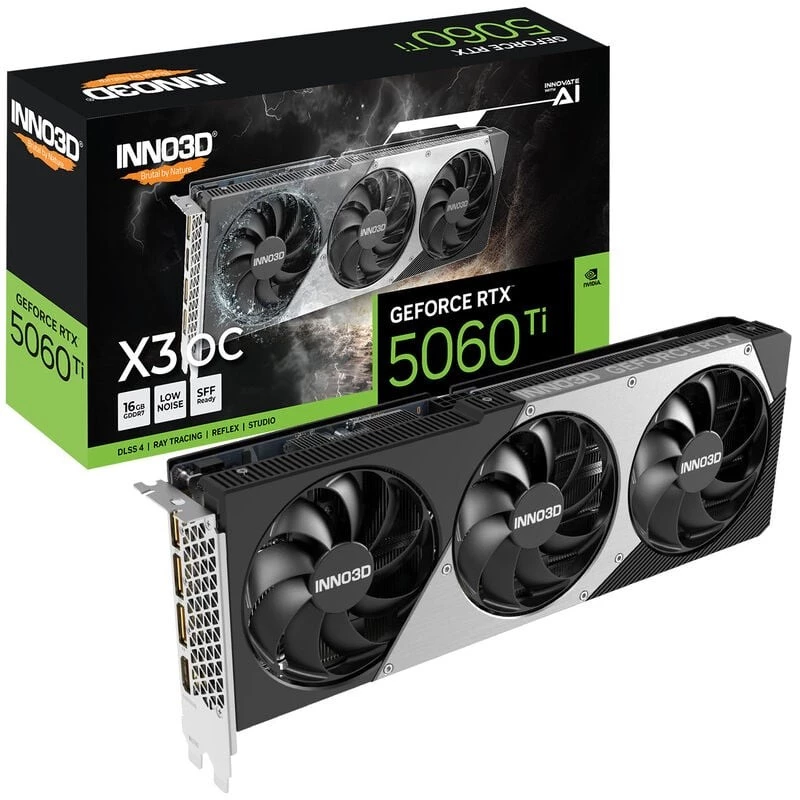

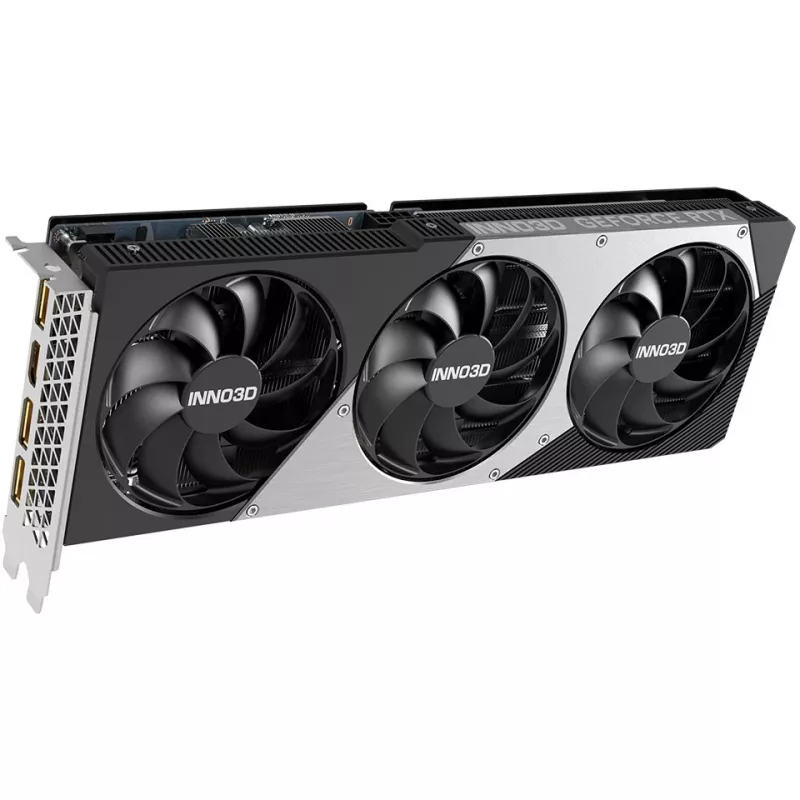

Graphics card Inno3D GeForce RTX 5060 Ti — 16 GB GDDR7, PCIe 5.0, 128-bit, 3x DP 2.1b + HDMI 2.1b

The GeForce RTX 5060 Ti 16 GB GDDR7 is a PCI Express 5.0 graphics card designed for high-resolution gaming, VR and content creation workflows. It features the NVIDIA GeForce RTX 5060 Ti GPU with 4608 CUDA cores, factory overclocked boost frequencies, and 16 GB of GDDR7 memory with a 128-bit bus for fast texture and frame handling. The card supports up to four displays and maximum resolution up to 7680 x 4320 pixels.

Advantages

The card combines a high CUDA core count and an overclocked boost clock for improved raster and compute performance, while GDDR7 memory and a 448 GB/s bandwidth provide increased memory throughput. Active triple-fan cooling and a two-slot design keep operating temperatures under control. Support for HDMI 2.1b and DisplayPort 2.1b enables high refresh rate and high-resolution output, and the card is VR-ready and compatible with NVIDIA G-SYNC and DirectX 12 Ultimate.

Suitable for

• High-resolution gaming at 4K and ultrawide displays
• Virtual reality (VR) applications and experiences
• GPU-accelerated content creation and video editing
• Multi-monitor desktop setups and streaming

Key specifications

• Graphics processor: NVIDIA GeForce RTX 5060 Ti
• CUDA cores: 4608
• Base clock: 2407 MHz; Boost clock: 2602 MHz
• Memory: 16 GB GDDR7; memory bus: 128-bit; max bandwidth: 448 GB/s; data rate: 28 Gbit/s
• Interface: PCI Express 5.0
• Display outputs: 3 × DisplayPort (v2.1b), 1 × HDMI (v2.1b)
• Maximum displays supported: 4; maximum resolution: 7680 × 4320 pixels
• Cooling: Active, 3 fans (fan diameter approx. 8.8 cm); two-slot card
• Power: Minimum system PSU 650 W; supplementary power: 1 × 8‑pin connector
• Form factor: Length 300 mm, Height 116 mm, Depth 41 mm; SFF ready
• API & standards: DirectX 12 Ultimate, OpenGL 4.6, HDCP 2.3
• Features: NVIDIA Ansel, NVIDIA G-SYNC support, VR-ready, factory OC edition

How to use

Install the card into a PCI Express 5.0 x16 slot on a compatible motherboard, secure it to the chassis, and connect the required 8‑pin supplementary power connector from a power supply rated at or above 650 W. Connect displays via DisplayPort or HDMI outputs. Install the latest NVIDIA drivers for Windows 11, Linux or other supported operating systems to enable full feature support and performance tuning. Configure multi-monitor, G-SYNC or VR settings through the NVIDIA control panel as needed.

Recommendations

Ensure your PC case has sufficient clearance for the 300 mm card length and adequate airflow for the triple-fan cooler. Use a power supply with the recommended capacity and a direct 8‑pin connector, update GPU drivers regularly, and verify OS compatibility (Windows 11, Linux, FreeBSD) before deployment.
