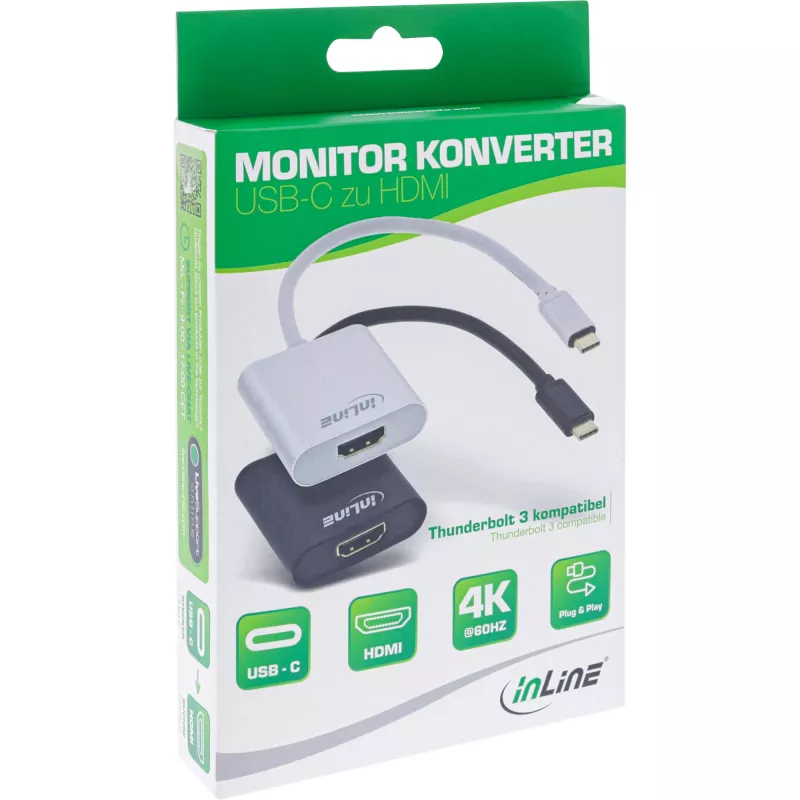

InLine USB Display converter, USB-C male to HDMI female (DP Alt Mode), 4K/60Hz

The InLine USB Display Converter (model 64101B) is a compact adapter that connects computers and devices with a USB Type-C port supporting DisplayPort Alternate Mode or Thunderbolt 3 to HDMI displays. The adapter features a USB-C male plug and an HDMI-A female socket, supports video and audio transmission, and enables resolutions up to 3840 x 2160 at 60 Hz with RGB and YCbCr 4:4:4 colour sampling. It is USB powered and does not require an external power supply.

Advantages

This USB-C to HDMI adapter supports 4K@60Hz, HDCP 2.2/1.4 and 3D formats, and is compatible with USB 3.1, VESA DisplayPort 1.2 and Thunderbolt 3. The plug-and-play design requires no drivers, and its short 0.2 m cable offers a compact, low-profile connection for home or office HDMI monitors and TVs.

Suitable for

Key specifications

How to use

Insert the USB Type-C plug into a computer or device USB-C port that supports DisplayPort Alternate Mode or into a Thunderbolt 3 port. Connect an HDMI cable from the adapter's HDMI-A female socket to the HDMI input of the monitor or TV. The adapter is USB powered and typically functions immediately via plug & play; select the external display in the operating system display settings if necessary.

Recommendations

Ensure the host device's USB-C port supports DisplayPort Alternate Mode (often indicated by a DisplayPort symbol near the port). For best results when running 4K@60Hz, use a high-quality HDMI 2.0 cable and verify that the display supports the chosen resolution and HDCP version.
