InLine Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 300m

The InLine Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 300m is a solid-conductor Cat6 network cable designed for structured cabling and permanent installations. It supports data transfer rates up to 10,000 Mbit/s over 10GBase-T networks and operates across a frequency range up to 250 MHz. The cable features S/FTP (overall shield with individually foil-shielded pair) construction and copper conductors with AWG23 gauge, supplied on a 300 m drum and finished in a highly visible orange jacket that is halogen-free for reduced smoke and toxic emissions in case of fire.

Advantages

The S/FTP shielding provides robust protection against electromagnetic interference and crosstalk, improving signal integrity in dense cable environments and near electrical equipment. Solid AWG23 copper conductors deliver stable impedance and reliable performance for fixed installation runs. The halogen-free sheath minimizes harmful gas release and is suitable for use in public or enclosed spaces where reduced toxicity is required. The orange jacket enhances traceability and identification during installation and maintenance.

Suitable for

• Structured office and data centre horizontal cabling
• 10GBase-T Ethernet backbones and high-speed access links
• Wall-mounted or conduit installations requiring permanent solid-core cable
• Environments where halogen-free materials are required for safety compliance

Key specifications

• Cabling category: Cat.6

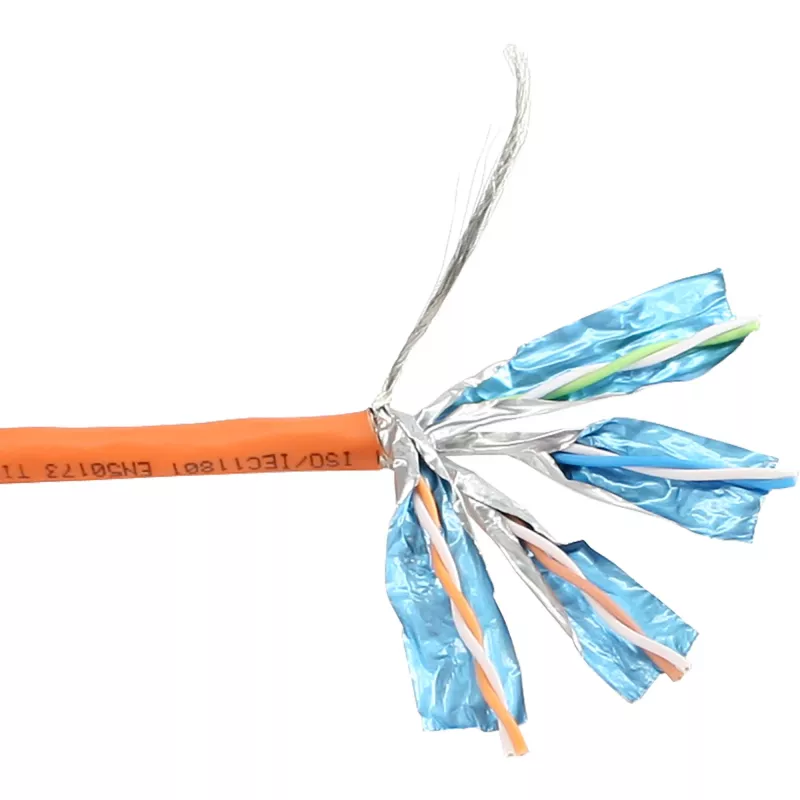

• Shielding: S/FTP (overall braid/foil with individually foil-shielded pairs)
• Frequency rating: up to 250 MHz
• Data rate: up to 10,000 Mbit/s (10 Gbit/s)
• Conductor type and size: solid copper, AWG23

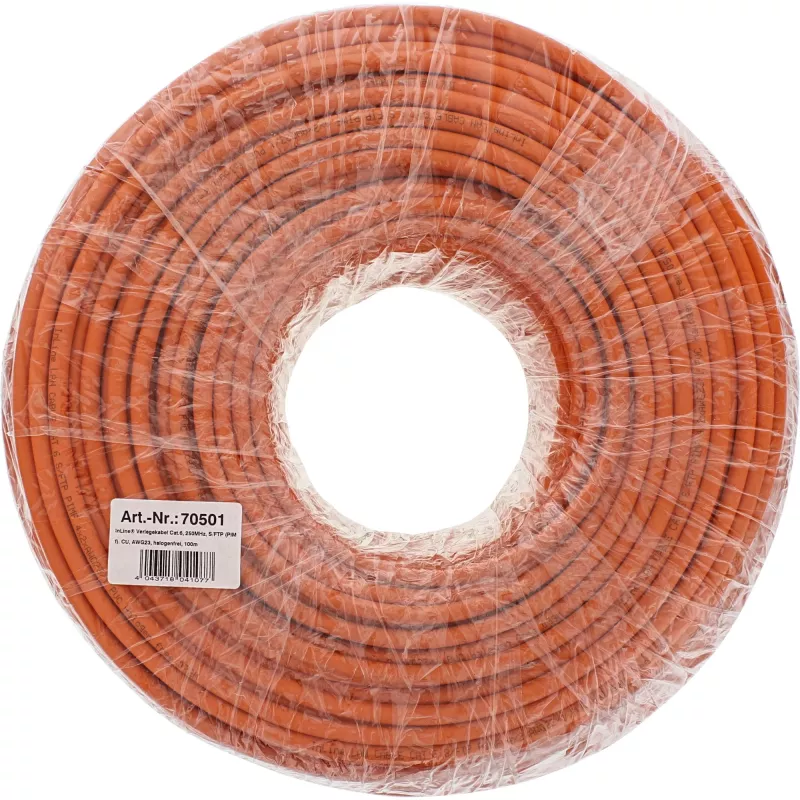

• Length: 300 m on drum
• Jacket material: halogen-free compound
• Outer colour: orange

How to use

Route the InLine Solid Installation Cable through cable trays, conduits or inside walls according to building codes and installation plans. Terminate to appropriate Cat6 keystone jacks, patch panels or RJ45 connectors designed for solid conductors, following recommended wiring standards (T568A or T568B). Maintain bend radii and avoid tight kinks; observe maximum pull tensions specified by local installation guidelines. After termination, verify links with a certified cable tester to confirm continuity, pair integrity, shielding effectiveness and compliance with required performance levels.

Recommendations

For optimal long-term performance, keep installation runs within recommended lengths for 10GBase-T, separate power and high-voltage cabling to reduce interference, and use compatible shielded connectors and properly grounded panels to preserve the S/FTP shielding effectiveness. Store the cable on its drum and avoid prolonged exposure to direct sunlight or extreme temperatures prior to installation.
