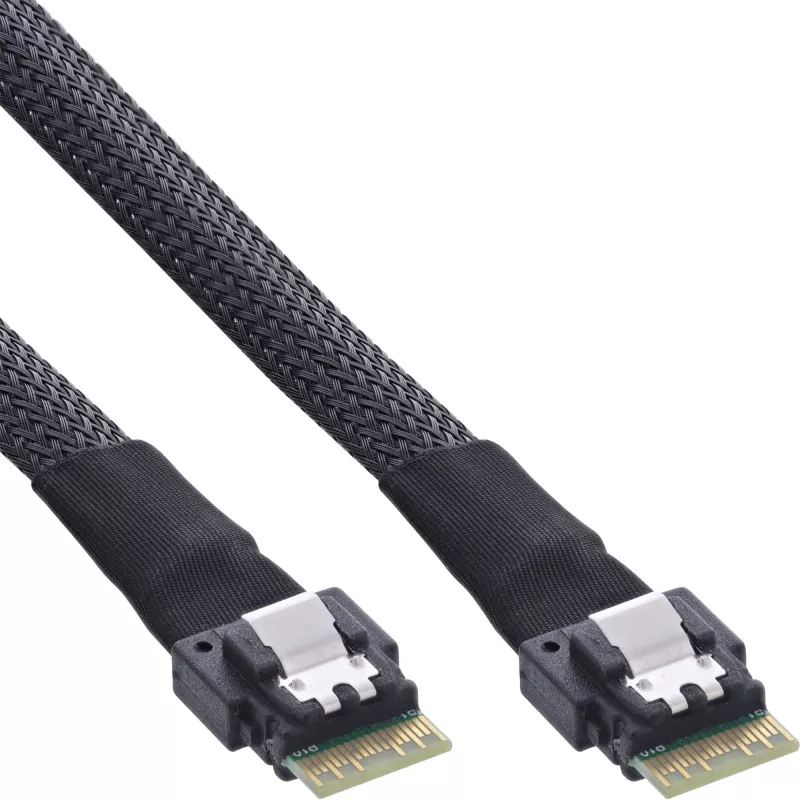

InLine Slim SAS Kabel, SFF-8654 zu SFF-8654, 24Gb/s, 1m

Perfect for professional storage solutions:Reliably connects internal SAS devices such as hard drives to controllers – ideal for RAID, JBOD, or DAS.
Standardized connection:Equipped with two Slim SAS 4i connectors (SFF-8654), compliant with SAS 4.0 specifications.
Secure connection:Locking clip on both connectors ensures a firm hold when mounted in the system housing.
High data rates:Supports up to 24 Gb/s total transfer rate – distributed across 4 channels with 6 Gb/s each.
Reliable signal quality:Ideal for demanding enterprise applications with high data integrity.

The InLine® Slim SAS cable is the ideal solution for professional server and storage environments where a reliable and high-performance connection between SAS devices and controllers is required. Thanks to the standardized Slim SAS 4i connectors (SFF-8654), the cable is ideal for use in RAID setups, JBODs, direct attached storage (DAS), or high-performance workstations.
The SAS 4.0-compliant connectors with integrated locking clips ensure a stable connection – even in confined spaces within the housing. The four available data channels together enable a maximum data rate of up to 24 Gb/s. This ensures fast and uninterrupted data transfer that meets the requirements of modern IT infrastructures.
The cable is designed for professional applications where performance, security, and compatibility are key. Whether for internal cabling between HBA or RAID controllers and SAS hard drives or for expanding existing storage solutions, this cable meets the highest standards of quality and stability.

Connector type:Slim SAS 4i (SFF-8654) on both sides
Standard:SAS 4.0
Channels:4 data channels at 6 Gb/s
Total data rate:24 Gb/s
Function:Internal connection cable
Locking:Clip lock on both ends
Length:0.5 m (item no. 27642A), 1 m (item no. 27642B)

InLine Slim SAS Kabel, SFF-8654 zu SFF-8654, 24Gb/s, 1m. Cable length: 1 m, Connector 1: SFF-8654, Connector 2: SFF-8654. Dimensions (WxDxH): 15 x 1000 x 8 mm. Package width: 160 mm, Package depth: 185 mm, Package height: 15 mm

How to use

Power down the system and follow standard ESD precautions before installing. Route the cable inside the chassis to avoid sharp bends and excessive tension. Align each SFF-8654 connector with the corresponding SAS port on the controller or drive backplane and insert until the connector is fully seated. After connection, verify that the controller and drives are detected by the system firmware or operating system.

Recommendations

Use this Slim SAS cable for internal connections only. Avoid repeated unplugging and replugging to reduce connector wear. For optimal signal integrity, keep the cable length appropriate for your chassis and maintain gentle bend radii consistent with SAS connector handling guidelines.
