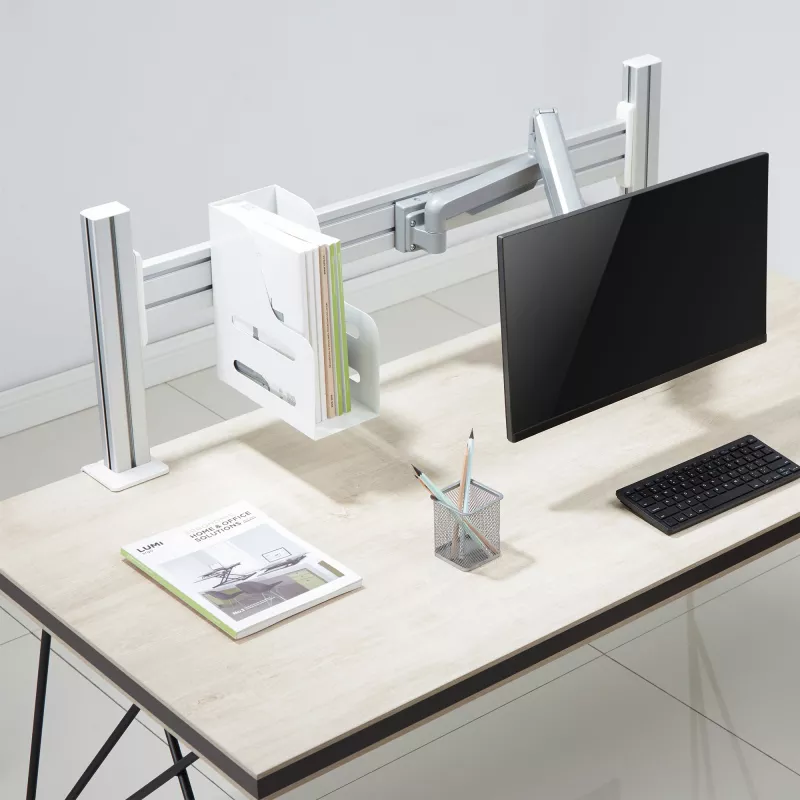

InLine Slatwall monitor bracket long white 8 kg 17 inch

The InLine Slatwall monitor bracket long white is a mounting solution for a single monitor up to 17 inches (43.2 cm) and up to 8 kg. It is compatible with VESA patterns from 75 x 75 mm to 100 x 100 mm and supports swivel from -90° to 90° and tilt from -30° to 30°, suitable for desk or wall configurations within the InLine Slatwall system.

Advantages

The bracket offers flexible positioning with wide swivel and tilt ranges, VESA compatibility for common small monitors, and a clean white finish that integrates into slatwall modules. It supports both wall and desk mounting options within the Slatwall series and can be combined with accessories such as trays for documents and desk utensils.

Suitable for (tasks / use cases)

• Mounting a single small monitor at a workstation or behind a counter
• Use in shared or dual-user desk setups where opposing configuration is required
• Integration into slatwall systems for retail, office, or reception areas

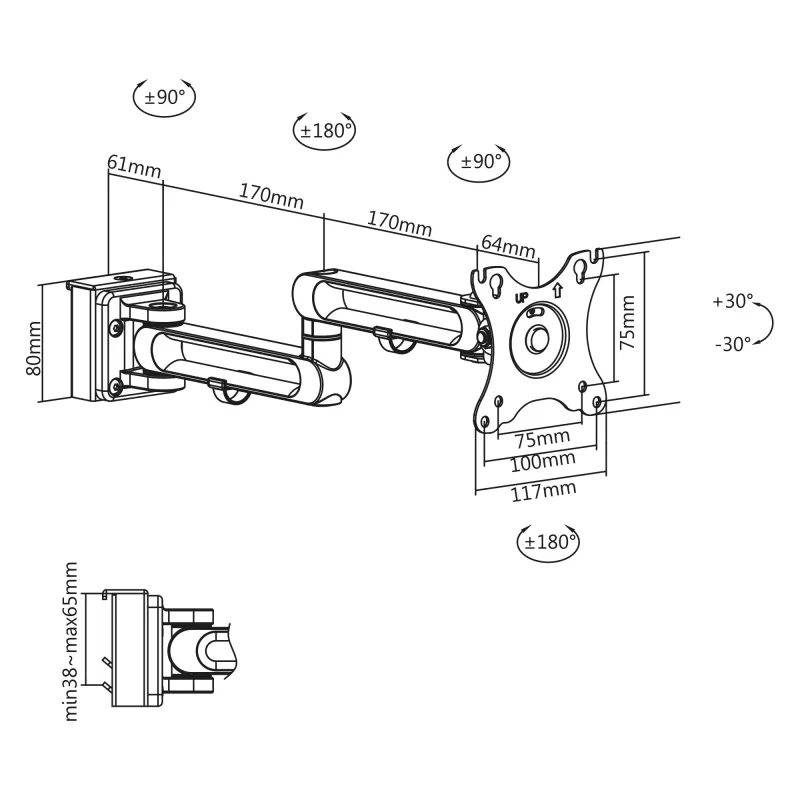

Key specifications

• Maximum screen size: 17" (43.2 cm)
• Maximum weight capacity: 8 kg
• VESA compatibility: 75 x 75 mm to 100 x 100 mm
• Swivel range: -90° to 90°
• Tilt range: -30° to 30°
• Colour: White

How to use

Attach the bracket to the slatwall channel or to the desk mount option according to the InLine Slatwall mounting instructions. Secure the monitor to the VESA plate using appropriate screws for the 75 x 75 mm or 100 x 100 mm pattern, ensuring the monitor weight does not exceed 8 kg. Adjust swivel and tilt to obtain the desired viewing angle and lock any adjustment mechanisms if provided.

Recommendations

For stable installation, verify compatibility with your slatwall profile or desk mount and use correct screw sizes for the VESA pattern. Avoid exceeding the 8 kg weight limit and adjust angles gently to prevent stress on the mount components.
