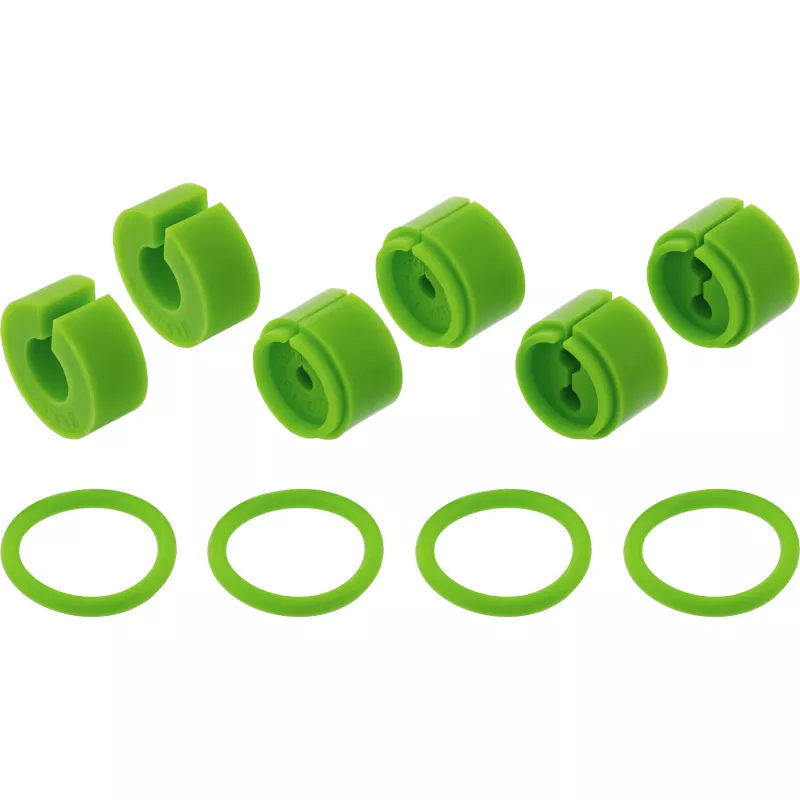

InLine® Seal Set for M20 Cable Couplings, RJ45, USB, Fibre Optic

Dust, moisture, and harsh environmental conditions can compromise the integrity of cable connections, leading to signal loss, corrosion, and premature failure. The InLine® Seal Set for M20 cable couplings provides a reliable barrier against these threats, ensuring that your RJ45, USB, and fibre optic connections remain protected even in demanding industrial or outdoor settings.

Who is it for

This seal set is ideal for network installers, industrial technicians, and system integrators who need to maintain IP67-rated protection for cable entry points. It is particularly suited for applications in manufacturing plants, outdoor enclosures, marine environments, and any location where dust, dirt, or water ingress could disrupt connectivity.

Main features

• Compatible with M20 cable glands and specific InLine M20 cable couplings (e.g., 35290, 35291, 35292).
• Accommodates a wide range of connector types including RJ45, USB, and fibre optic cables.
• Constructed from EPDM rubber for excellent resistance to UV, ozone, weathering, and many chemicals.
• Maintains IP67 sealing rating when properly installed, protecting against dust and temporary immersion.
• Operates reliably in temperatures from -20°C to +80°C, suitable for extreme environments.
• Set includes multiple seals to fit various cable diameters and connector styles.

Specifications

• Product Type: Cable Gland Seal Set
• Thread Size Compatibility: M20
• Supported Connector Types: RJ45, USB, Fibre Optic
• Sealing Rating: IP67
• Material: EPDM (Ethylene Propylene Diene Monomer)
• Colour: Black
• Operating Temperature Range: -20°C to +80°C
• UV Resistance: Yes
• Ozone Resistance: Yes
• Weathering Resistance: High
• Chemical Resistance: Good (against many common acids, alkalis, and solvents)
• Application Environment: Industrial, Outdoor, Harsh Environments
• Installation Type: Internal to M20 Cable Glands

Tips

For optimal performance, ensure that the cable gland and seal are clean and free of debris before installation. Select the appropriate seal size based on the cable diameter to achieve a snug fit. Regularly inspect seals for signs of wear or damage, especially in high-vibration environments, and replace as needed to maintain the IP67 rating.
