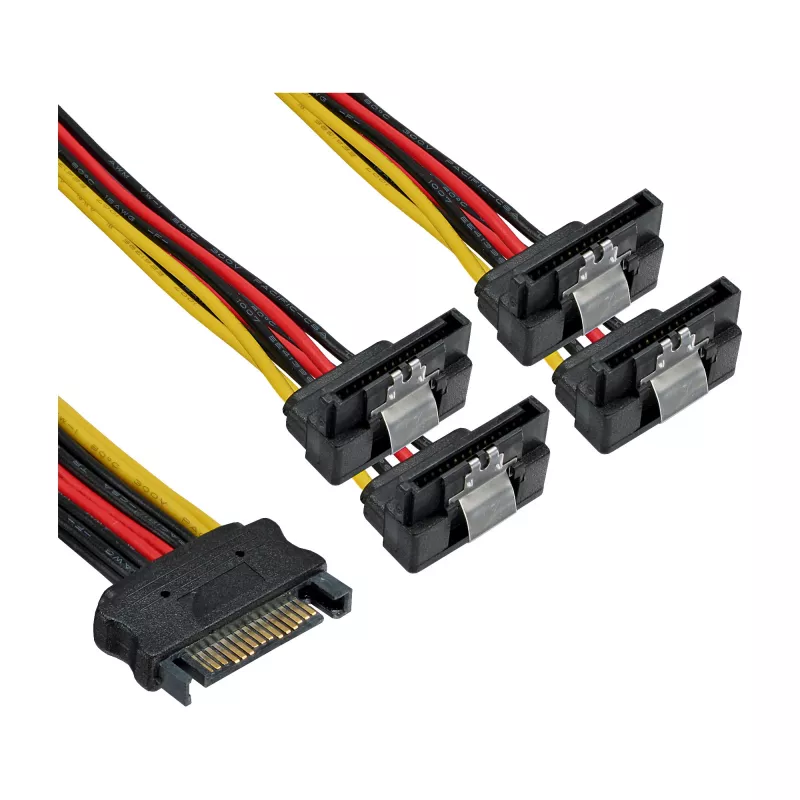

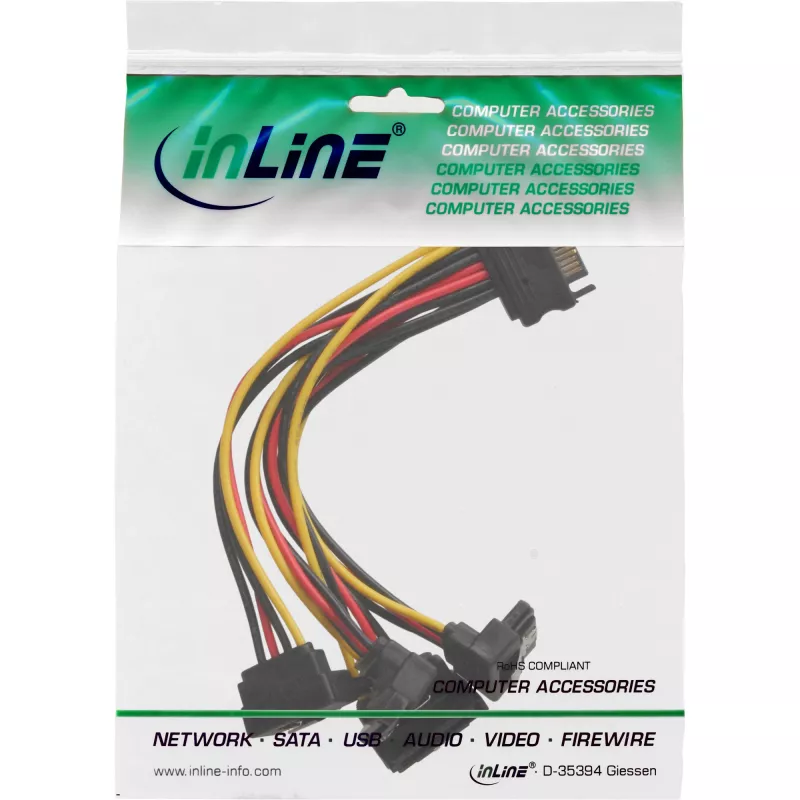

InLine SATA Power 1 to 4 Cable female / 4x SATA male angled with latches 0.15m

The InLine SATA Power 1 to 4 Cable is a short power splitter designed for internal PC use. It has one female SATA 15-pin input and four angled male SATA 15-pin outputs with latches, allowing up to four SATA hard drives or drives to be powered from a single SATA power source. The 0.15 m length and angled connectors help with tight spaces and improved cable routing inside computer cases.

Advantages

Provides four SATA power outputs from a single female SATA connector, features angled male connectors with latches for secure attachment and easier insertion, and its compact 0.15 m length reduces cable clutter and supports better airflow and cable management in confined builds.

Suitable for

• Connecting multiple SATA HDDs or SSDs to one SATA power line
• Small form factor or compact PC builds with limited cable space
• Upgrading or expanding internal storage without adding extra power cables

Key specifications

• Cable length: 0.15 m
• Connector 1: SATA 15-pin (female)
• Connector 2: SATA 15-pin (4x male, angled with latches)
• Product colour: Multicolour
• Brand: InLine
• MPN: 29683V
• EAN: 4043718182909

How to use

Connect the female SATA 15-pin end of the cable to an available SATA power connector from your power supply or adapter. Plug the angled male SATA connectors into the power ports of up to four SATA drives, ensuring the latch clicks into place for secure contact. Route the cable to avoid obstructing fans or airflow; its short length is intended for close-proximity connections inside the case.

Recommendations

Use this cable only for SATA power connections inside desktop computers; avoid excessive bending near connectors and ensure the power supply can handle the combined power draw of multiple drives. Do not use for external or non-SATA power applications.
