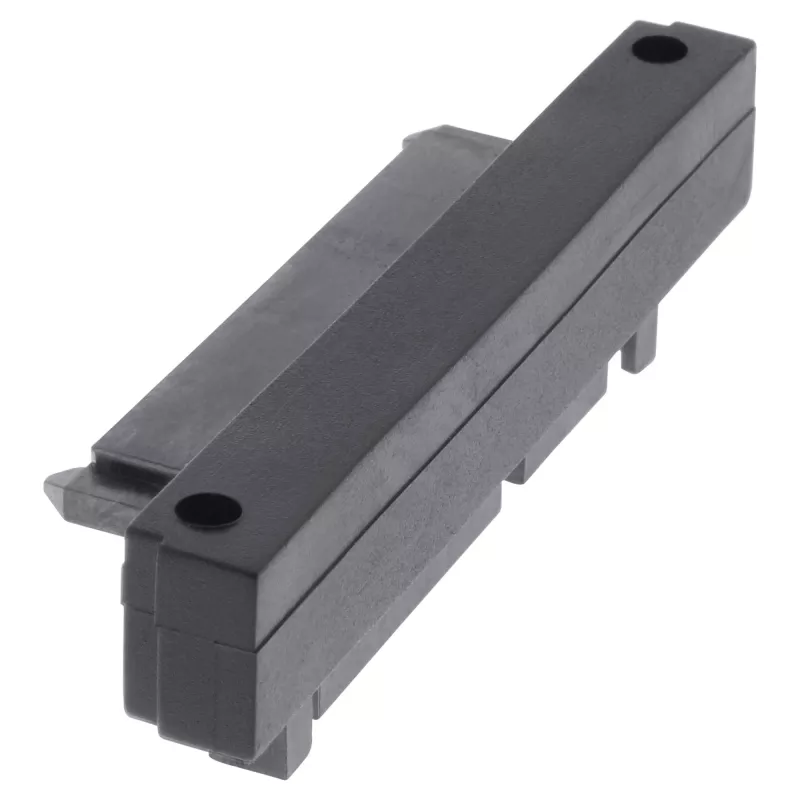

InLine SATA adaptor, M/F, 22pin (15+7) downward angled

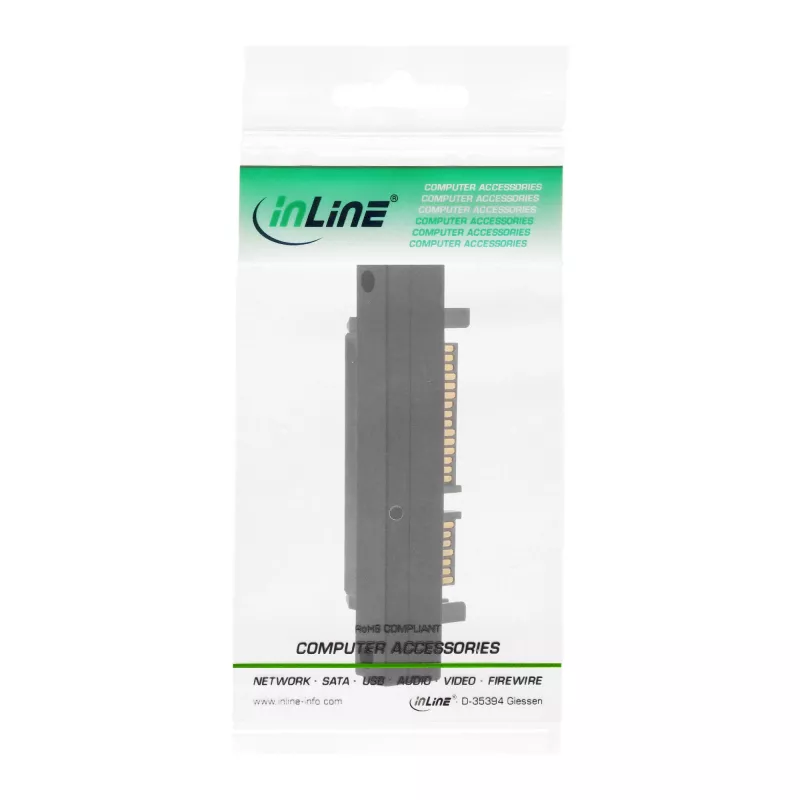

The InLine SATA adaptor M/F 22pin 15+7 downward angled is a compact adapter designed to connect SATA devices where space is limited. It provides a male-to-female 22-pin (15+7) SATA connection with the connector angled downward to allow installation in confined areas inside a PC housing. The adapter is black and supplied in a polybag.

Advantages

The angled downward design reduces strain on SATA cables and enables connections in tight or obstructed locations. The male-to-female 22-pin (15+7) configuration maintains standard SATA power and data alignment, ensuring compatibility with typical internal drives and devices. Its compact form factor and black finish make it unobtrusive inside the PC case.

Suitable for

• Connecting 2.5" or 3.5" SATA drives in cramped drive bays
• Routing SATA cables behind motherboard trays or against chassis walls
• Adapting or extending SATA connections where straight plugs cannot fit

Key specifications

• Type: SATA adapter, male to female
• Connector: 22-pin (15+7)
• Orientation: angled downward
• Colour: Black
• Brand: InLine, MPN: 27700G, EAN: 4043718217533
• Packaging: polybag

How to use

Align the male 22-pin plug of the adapter with the female SATA socket on the drive or cable and insert firmly until seated. Connect the other side to the host SATA connector in the desired orientation; the downward angle helps position the cable away from obstacles. Ensure the system is powered off when making or changing internal connections to avoid damage.

Recommendations

Use this adapter for internal SATA connections only. Avoid excessive bending of the cable near the connector and verify firm seating of both ends. Do not apply force beyond normal insertion pressure to prevent connector damage.
