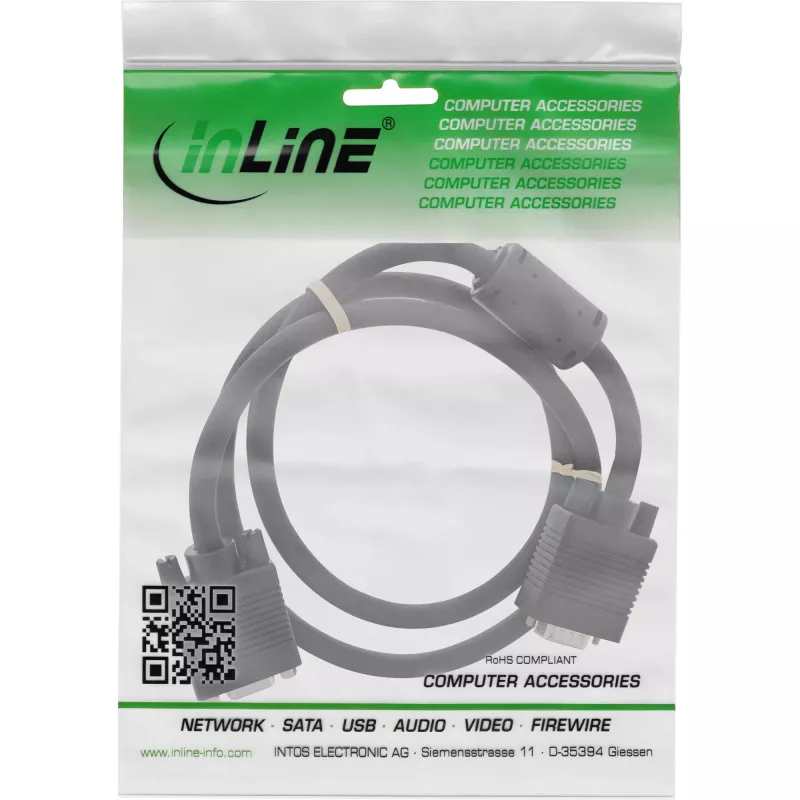

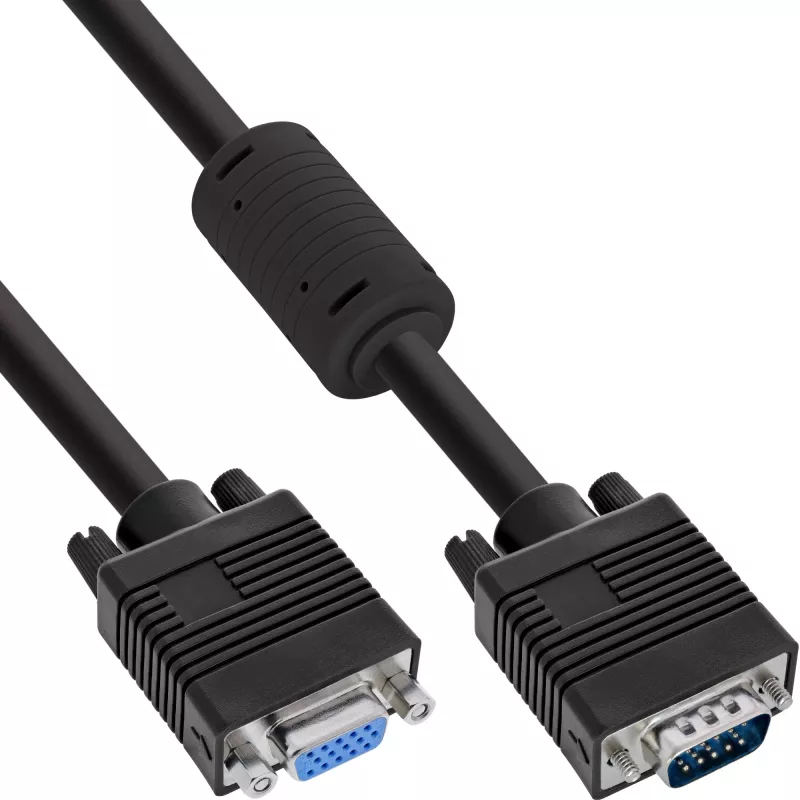

InLine S-VGA Extension Cable 15HD male / female black 0.3m

Reliable VGA extension:1:1 interconnected cable with HD15 plug to HD15 socket for clear signal transmission.
High-quality signal quality:Three coaxial cables (RGB) and seven data cores ensure stable image transmission.
Effective protection against interference:Overall and individual shielding and ferrite core reduce electromagnetic interference.
Easy installation:Color-coded die-cast connectors in accordance with the PC99 standard support error-free cabling.
Rugged workmanship:The robust connector design and precise pin assignment enable long-lasting use.

The InLine® S-VGA extension with HD15 plug to HD15 socket is a professional solution for extending analog image signals between monitors, projectors and computers. It provides a reliable connection for devices with a VGA connection, especially in presentation environments, educational institutions and office installations.
The cable has three single-shielded coaxial lines for RGB signal transmission and seven additional data lines. Thanks to the double shielding - consisting of overall and individual shielding - and the integrated ferrite core, the signal is effectively protected against electromagnetic interference.
The 1:1 pin assignment without PIN 9 ensures standard-compliant and stable transmission. The blue coloring of the die-cast connectors complies with the PC99 standard and makes it easier to correctly identify the connection ports. The robust design ensures high mechanical resilience even with frequent use.

Plug type: HD15 plug to HD15 socket
Pin assignment: 1:1 (without PIN 9)
Shielding: Overall and individual shielding
Cable construction: 3x coax (RGB) + 7x data cores
Special feature: ferrite core, PC99 color coding
Color: black

InLine S-VGA Extension Cable 15HD male / female black 0.3m. Cable length: 0.3 m, Connector 1: VGA (D-Sub), Connector 2: VGA (D-Sub). Weight: 105 g, Package volume: 900 cm³. Package width: 175 mm, Package depth: 225 mm, Package height: 22 mm

How to use

Connect the male VGA plug of the extension cable to the VGA output on your computer or source device and attach the VGA monitor cable to the female end to extend the connection. Tighten the connector screws by hand to secure the connection. Use the short 0.3 m length where a small extension is sufficient, for example behind furniture or in compact setups.

Recommendations

For best results, avoid running the VGA cable parallel to power cables or sources of strong electromagnetic interference. If longer runs or higher resolutions are required, consider a certified high-resolution VGA cable or a digital alternative such as DVI or HDMI.
