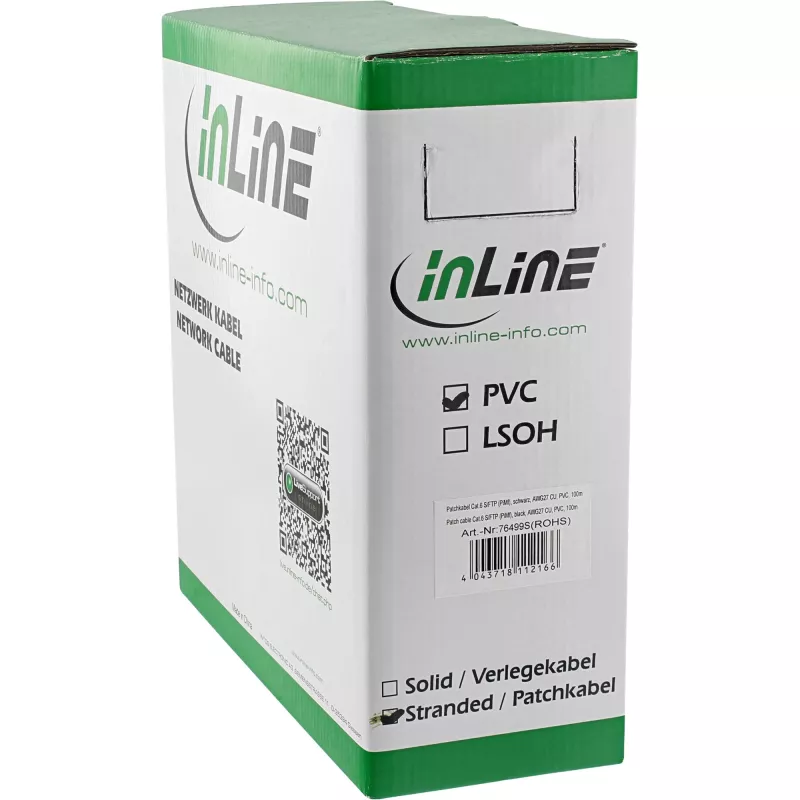

InLine Patch Cable S/FTP PiMF Cat.6 black AWG27 PVC CU 100m

InLine S/FTP PiMF Cat6 patch cable on a 100 m reel, black. This shielded Cat6 cable features an overall braided screen combined with individually foil-shielded pairs (S/FTP PiMF) to reduce crosstalk and electromagnetic interference. Conductors are AWG27 copper and the cable is jacketed in PVC, making it suitable for creating patch leads, connecting network equipment to patch panels and for use in structured horizontal cabling where shielded Cat6 performance is required for gigabit Ethernet.

Advantages

The S/FTP PiMF design offers improved protection against external EMI and minimizes near-end and alien crosstalk compared with unshielded alternatives. AWG27 copper conductors provide reliable signal transmission for Gigabit Ethernet applications. The PVC jacket ensures mechanical protection and flexible handling during installation and cabling work. Supplied on a 100 m reel, the cable is convenient for custom-length patch lead production and for installation in racks and horizontal pathways.

Suitable for

• Manufacturing custom patch cords and patch leads
• Connecting switches, routers and network devices to patch panels
• Horizontal structured cabling in shielded or EMI-prone environments
• Gigabit Ethernet and other high-speed network links

Key specifications

• Category: Cat6
• Shielding: S/FTP (overall braid with individually foil-shielded pairs, PiMF)
• Conductor: solid/stranded AWG27 copper (4 pairs)
• Pairs: 4 x 2 conductor pairs
• Jacket material: PVC
• Length: 100 m reel
• Color: black
• Performance: suitable for Gigabit Ethernet

How to use

Measure and cut the required length from the 100 m reel, strip the outer jacket carefully to preserve the pair shields, and prepare each pair according to the connector manufacturer’s termination scheme. Maintain the integrity of the individual foil shields and ensure the overall braid is properly grounded at least at one end when used in shielded installations. Use appropriate Cat6 RJ45 shielded connectors and suitable crimping or soldering tools to assemble patch cords tailored to your rack or network layout.

Recommendations

For optimal performance, route shielded Cat6 cable separately from strong electrical sources and ensure consistent grounding of the cable shield. Follow industry termination standards and testing procedures (continuity, pair mapping, NEXT, and return loss) after assembly to verify Gigabit Ethernet compliance.
