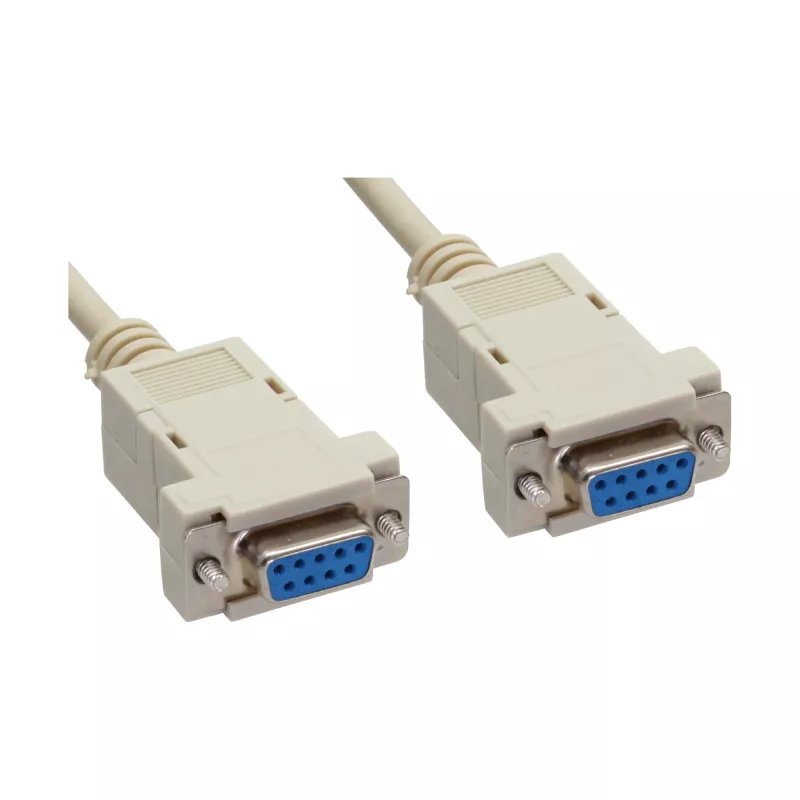

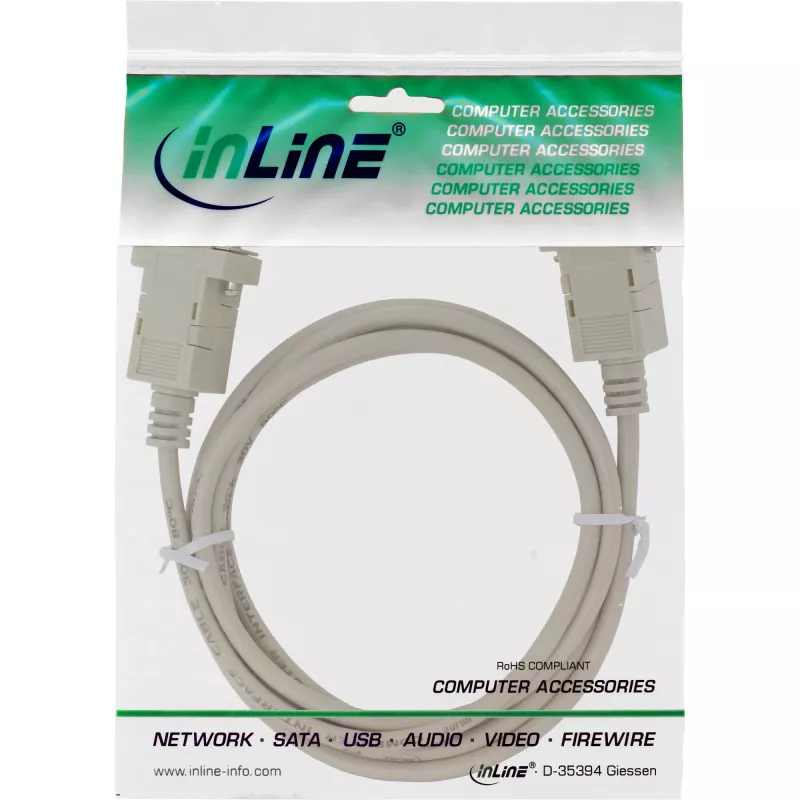

InLine null modem cable DB9 Pin female / female, clipped, grey, 2m

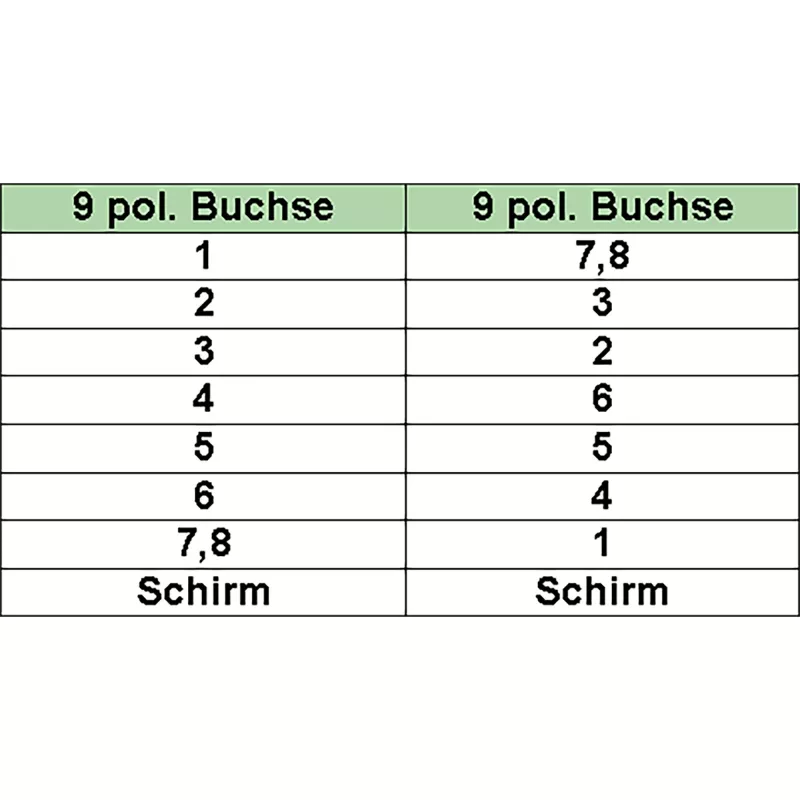

Null modem cable InLine DB9 Pin female/female 2m grey is designed for direct data transmission between two PCs, notebooks or servers via serial COM ports. The cable uses DB9 female connectors on both ends and provides a 2 m length to accommodate typical workstation distances. Note: pay attention to the pin assignment when connecting.

Advantages

The InLine null modem cable supports straightforward serial communication without additional modems or adapters, features standard DB9 female/female connectors for compatibility with many legacy devices, and its 2 m length offers flexible placement of connected equipment. The beige/grey colour allows discreet integration into most work environments.

Suitable for

• Direct serial data transfer between two computers or laptops
• Connecting servers or network equipment via COM ports
• Linking serial peripherals for configuration or data exchange

Key specifications

• Brand: InLine
• Model/MPN: 12222L
• EAN: 4043718084173
• Connector type: DB9 (9-pin) female / female
• Cable length: 2 m
• Colour: Beige/Grey

How to use

Connect one DB9 female connector to the serial COM port of the first device and the other DB9 female connector to the COM port of the second device. Ensure that both devices use compatible serial settings (baud rate, parity, data bits, stop bits) and verify the pin assignment before powering devices to avoid communication issues. Configure terminal or communication software on both systems to establish the data link.

Recommendations

Check device manuals for required pinouts and set matching serial parameters on both devices. Avoid routing the cable near strong electromagnetic sources to reduce interference.
