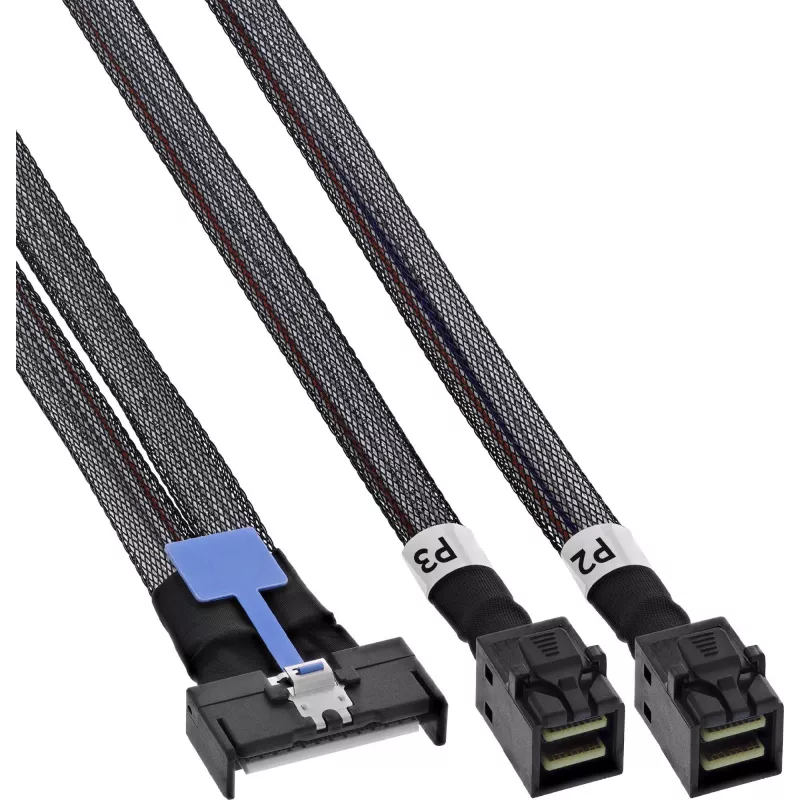

InLine® MCIO Cable, MCIO x8 to 2x MiniSAS-HD SFF-8643, 1 m

Internal data cable for high-speed server and storage connectivity, featuring an MCIO x8 host connector and dual MiniSAS-HD SFF-8643 device connectors. This 1-meter copper cable supports SAS, NVMe, and PCIe protocols, delivering up to 22.5 Gbps per lane (SAS 4.0) or 32 GT/s per lane (PCIe Gen5) across 8 lanes. With 100-ohm impedance and RoHS compliance, it ensures reliable signal integrity in dense IT environments.

Advantages

Combines an MCIO x8 connector with two MiniSAS-HD SFF-8643 connectors, enabling a single host port to connect to two drives or backplanes. Supports next-generation SAS and PCIe speeds, future-proofing your storage infrastructure. The 1-meter length provides flexibility in server chassis and rack installations. Robust copper construction and 100-ohm impedance maintain signal quality over the full length.

Suitable for

• Servers and workstations requiring high-bandwidth internal storage connections
• Storage systems and RAID arrays with MiniSAS-HD SFF-8643 interfaces
• Data centers upgrading to SAS 4.0 or PCIe Gen5 storage devices
• IT professionals building or maintaining enterprise-class hardware

Key specifications

• Cable type: Internal data cable
• Connector 1: MCIO x8 (host/controller)
• Connector 2: 2x MiniSAS-HD SFF-8643 (device/drive)
• Length: 1 meter (100 cm)
• Supported protocols: SAS, NVMe, PCIe
• Max data transfer rate: 22.5 Gbps per lane (SAS 4.0), 32 GT/s per lane (PCIe Gen5)
• Number of lanes: 8 (MCIO side)
• Impedance: 100 Ohm
• Material: Copper
• Colour: Black
• Compliance: RoHS

Recommendations

For optimal performance, pair this cable with MCIO x8 host adapters and MiniSAS-HD SFF-8643 storage devices. Ensure proper routing to avoid sharp bends and maintain airflow. Verify compatibility with your system's protocol generation to leverage full bandwidth.
