InLine Installation cable Cat.7a, S/FTP (PiMF) 4x2x0.58 AWG23 1200MHz B2ca 100m

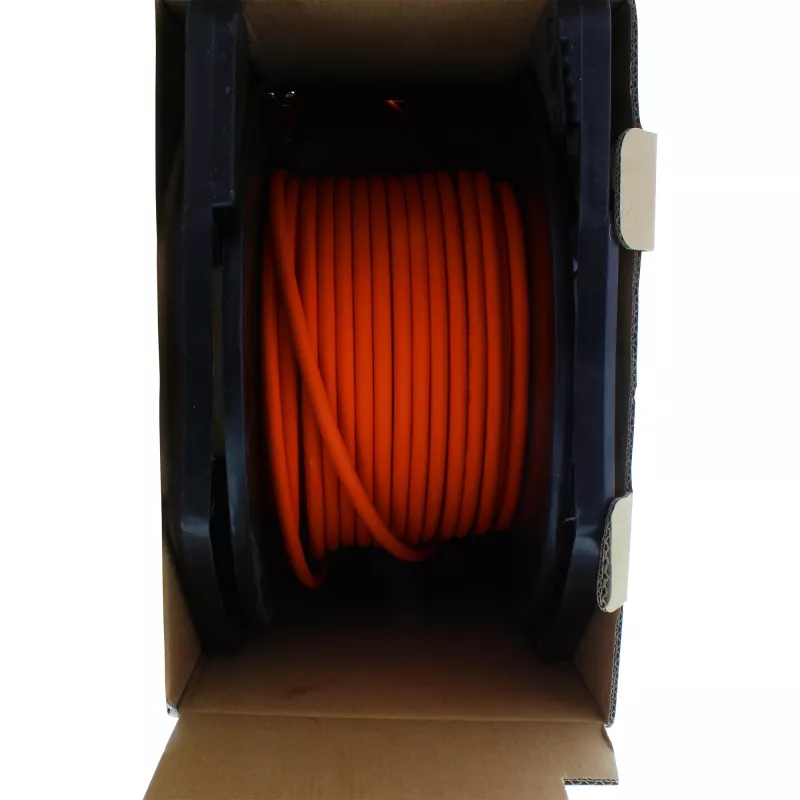

The InLine installation cable Cat.7a S/FTP PiMF 4x2x0.58 AWG23 (100 m) is supplied on a plastic reel secured inside a reinforced cardboard drum box to allow easy, tangle-free removal of the required length. The orange-sheathed, full-copper cable is designed for installation use and supports frequencies up to 1200 MHz and data rates up to 10 Gbit/s. The reel box includes a remaining-metre indication on the cable and fire behaviour classification B2ca according to EN 50575:2014/A1:2016.

Advantages

The drum box enables cost reduction through simple handling on site without additional unwinding devices, offers handy and stackable packaging for convenient transport in construction vehicles, and has a low weight suitable for parcel shipment. The cardboard-reinforced box prevents soiling and transport damage that can occur with loose cable rolls and reduces cutting costs for small quantities. Remaining-metre marking on the cable simplifies length measurement during installation.

Suitable for

• High-speed network installations in offices and data centres
• Structured cabling and backbone runs up to 10 Gbit/s
• Professional installation projects requiring protected transport and easy unwinding

Key specifications

• Type: Installation cable, Cat.7a S/FTP PiMF
• Conductor: 4x2x AWG23 (0.58 mm core), full copper cores
• Bandwidth: up to 1200 MHz
• Data rate: suitable up to 10 Gbit/s
• Impedance: 100 Ω
• DC resistance: max. 93.8 Ω/km
• Shielding: pairs in metal foil (PiMF) with overall braided shielding
• Sheath: halogen-free (LSZH), colour: orange
• Cable diameter: approx. 7.8 mm
• Temperatures: installation 0 to 50 °C; operating -20 to 60 °C; storage -20 to 50 °C
• Packaging: plastic reel fixed in reinforced cardboard drum box; remaining metre indication on cable
• Fire behaviour: B2ca (EN 50575:2014/A1:2016)
• Available drum/box lengths: 10 m, 25 m (box), 50 m, 100 m, 300 m (drum box); 500 m delivered on drum

How to use

Remove the cable from the drum box by pulling the required length from the plastic reel while the reel remains secured inside the cardboard box to prevent tangling. Use the remaining-metre indication printed on the cable to measure lengths without additional tools. Terminate and install the cable according to standard Cat.7a installation practices, observing correct shielding handling and grounding where required. Do not bend the cable beyond recommended bend radius and follow temperature limits during installation.
