Fitting Alphacool 1022288 Brass Chrome 25.5mm 30mm 18mm

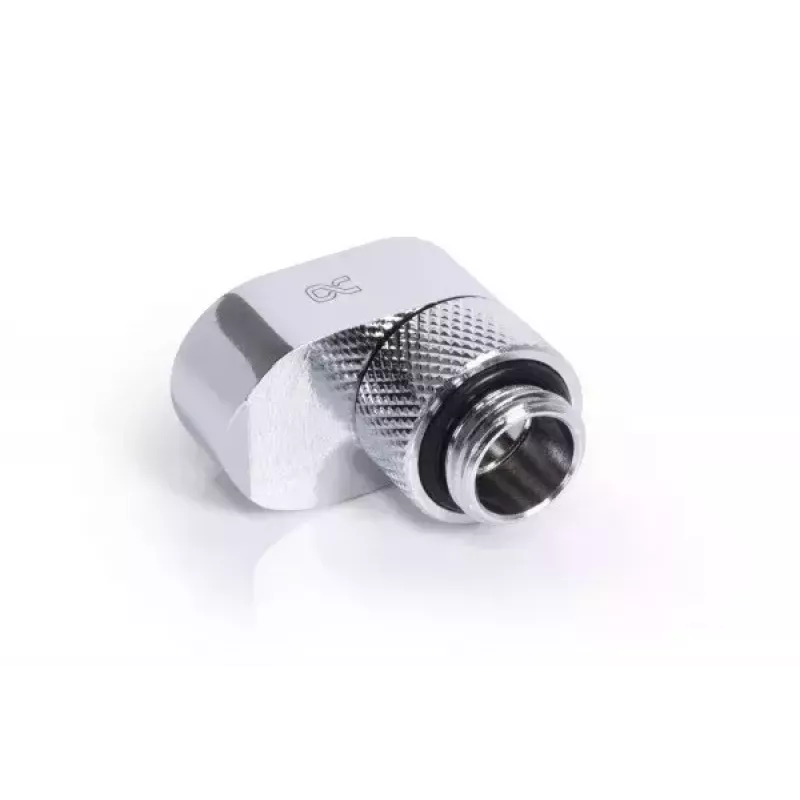

The Alphacool Eiszapfen 16mm offset fitting rotatable G1/4 OT to G1/4 IT is a compact brass connector with a chrome finish designed for integration into liquid cooling loops. It has one male G1/4" and one female G1/4" thread and dimensions of approximately 25.5 mm (width) × 30 mm (depth) × 18 mm (height), providing a space-saving connection between two G1/4" ports.

Advantages

This Alphacool fitting is made of durable brass with a chrome finish for corrosion resistance and long service life. The rotatable offset design and standard G1/4" male and female threads allow simple installation at any position in a water circuit. Thread depths of about 5 mm enable a compact overall size while maintaining secure threaded engagement.

Suitable for

• PC and custom liquid cooling loops
• Connections between components with G1/4" threads (radiators, blocks, pumps, reservoirs)
• Installations requiring a compact, offset rotatable connector

Key specifications

• Brand: Alphacool
• Material: Brass with chrome finish
• Thread type: G1/4" female to G1/4" male
• Dimensions (approx.): 25.5 mm × 30 mm × 18 mm
• Thread depth: ~5 mm
• MPN: 17602
• EAN: 4250197176026

How to use

Screw the male G1/4" thread into the corresponding female G1/4" port, and screw the female side onto a male G1/4" connection of the mating component. Rotate the fitting to the desired orientation before fully tightening to achieve the required offset direction. Tighten by hand and finish with a suitable wrench if necessary; avoid over-tightening to prevent thread damage.

Recommendations

Use compatible G1/4" sealed fittings and appropriate thread sealant or PTFE tape if required by your build. Inspect threads for debris before installation and pressure-test the loop after assembly to check for leaks.
