InLine Desk Bracket for 4x TV / LED / TFT Display up to 81cm 32 inch max. 9kg

Desk mount for up to four flat-screen monitors with a maximum screen size of 32" (81 cm) and a maximum load of 9 kg per display. The InLine desk bracket provides height adjustment and flexible orientation, allowing each screen to tilt up to +/-45° and rotate 360°. It supports VESA 75x75 and 100x100 mounting patterns and includes mounting accessories for easy installation.

Advantages

The bracket supports up to four displays, with height adjustment for two-level mounting and independent tilt and rotation for optimal viewing. It offers both screw clamp and grommet mounting options to suit different desk edges and through-desk installations. The package includes screws (M4, M5), allen keys and installation instructions for a complete setup.

Suitable for

• Multi-monitor workstations in offices or home offices
• Trading desks, control rooms and monitoring stations
• Design and programming setups requiring multiple displays
• Customer service and reception desks where space saving is needed

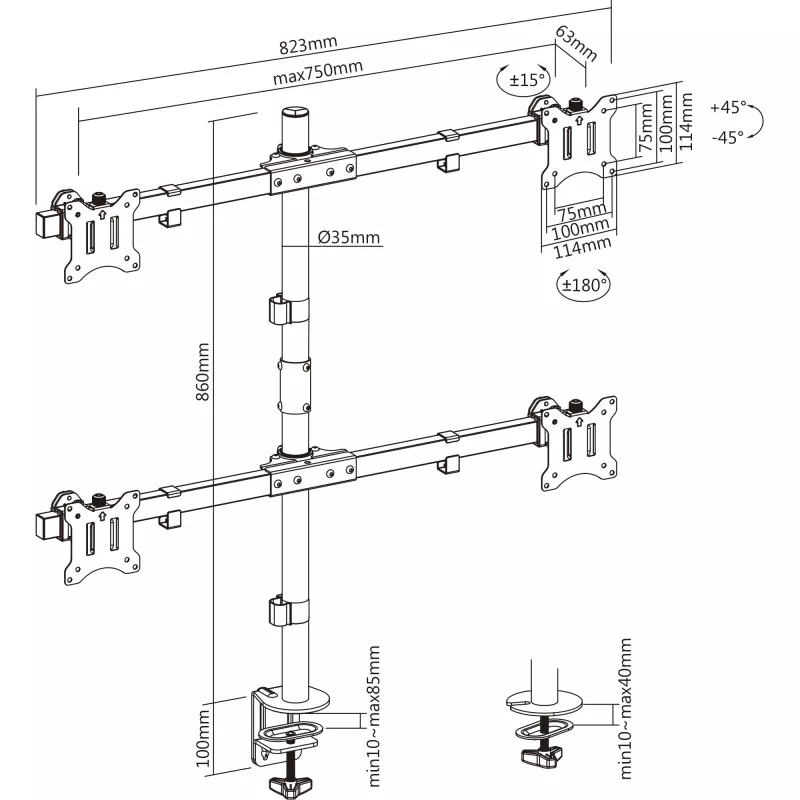

Key specifications

• Maximum screen size: 32" (81 cm)
• Maximum load per display: 9 kg (4x 9 kg total)
• VESA compatibility: 75x75 mm, 100x100 mm
• Tilt range: +/-45°
• Rotation: 360°
• Height adjustment: up to approx. 86 cm (two-monitor levels)
• Mounting options: screw clamp (desk edge up to approx. 85 mm) or grommet (through desk up to approx. 40 mm)
• Includes: table holder, screw set (M4, M5), 2x allen keys, installation instructions

How to use

Choose the mounting method suitable for your desk: use the screw clamp for edge mounting (up to approx. 85 mm) or the grommet for through-desk installation (up to approx. 40 mm). Attach the table holder, secure the arms and adjust the height to the desired level (up to approx. 86 cm) to create two monitor tiers if needed. Fix each display to the VESA plate using the supplied M4 or M5 screws, then set the tilt and rotation for comfortable viewing.

Recommendations

Ensure each monitor does not exceed the 9 kg weight limit and that the VESA pattern matches 75x75 or 100x100 mm. Check desk thickness and stability before installation and tighten all fastenings according to the included instructions to maintain safe support for up to four displays.
