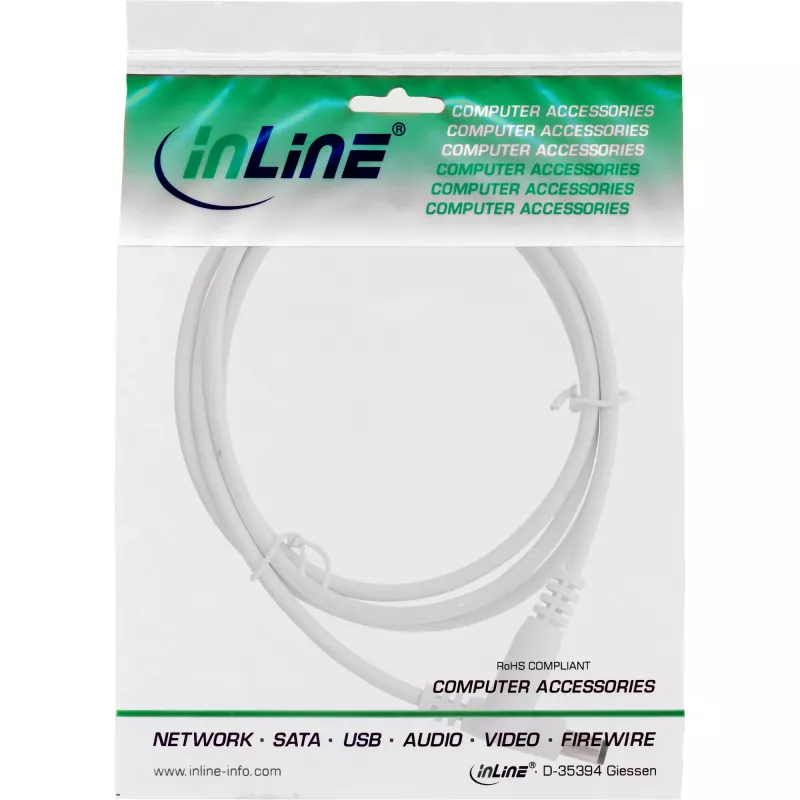

InLine DC extension cable, DC male/female 5.5x2.1mm, AWG 18, white 2m

InLine DC extension cable with 5.5 x 2.1 mm male and female connectors, 2 m length and AWG 18 conductors. The cable is designed to extend low-voltage DC power connections and is supplied in white. Rated for 12 V nominal input and up to 11.6 A current, it is suitable for powering or relocating devices that use standard 5.5 x 2.1 mm DC plugs.

Advantages

The InLine DC extension cable provides a standardized 5.5 x 2.1 mm connector pair, a flexible AWG 18 conductor for reliable current carrying, and a 2 m length for greater installation reach. The white jacket offers a discreet appearance for many indoor setups, while the rated current and voltage make it compatible with a range of low-voltage DC devices.

Suitable for

• Extending power to routers, modems and network equipment
• Powering CCTV cameras and surveillance equipment
• Connecting LED drivers and low-voltage lighting systems
• Extending power leads for small appliances and electronic devices using 5.5 x 2.1 mm plugs

Key specifications

• Connector type: 5.5 x 2.1 mm male to 5.5 x 2.1 mm female
• Cable length: 2 m
• Wire gauge: AWG 18
• Rated voltage: 12 V (nominal)
• Rated current: 11.6 A
• Colour: White

How to use

Plug the male 5.5 x 2.1 mm connector into the device or power adapter output and connect the female end to the device’s DC input. Ensure the polarity matches the device requirements (centre pin positive or negative as applicable) and verify that the device’s voltage and current needs do not exceed the cable’s ratings. Route the cable to avoid sharp bends and mechanical strain.

Recommendations

Use this cable indoors and avoid exposure to moisture or direct sunlight. Confirm connector polarity before powering devices and do not exceed the rated 11.6 A current to prevent overheating.
