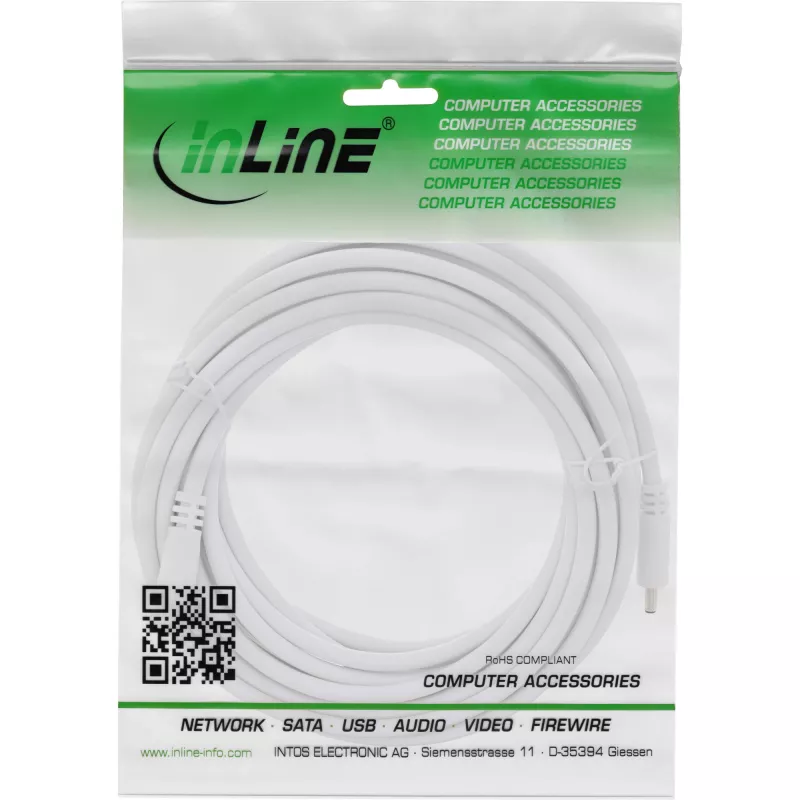

InLine DC extension cable, DC male/female 3.5x1.35mm, AWG 18, white 5m

The InLine DC extension cable is a 5 m white cable with 3.5 x 1.35 mm DC male and female connectors. Designed for extending low-voltage DC power connections, it supports an input voltage of 12 V and a maximum current of 11.6 A. The AWG 18 conductor gauge provides reliable power transmission for compatible electronic devices and accessories.

Advantages

The cable combines a standard 3.5 x 1.35 mm DC connector pair with a 5 m length to allow flexible placement of devices. AWG 18 wire gauge and specified current rating ensure stable power delivery, while the white jacket offers a neutral appearance suitable for home and office environments.

Suitable for

• Extending power to routers, set-top boxes and small network devices
• Powering CCTV cameras and similar low-voltage surveillance equipment
• Connecting LED drivers, small amplifiers and other consumer electronics that use 3.5 x 1.35 mm DC plugs

Key specifications

• Cable length: 5 m
• Connectors: 3.5 x 1.35 mm male / 3.5 x 1.35 mm female
• Wire gauge: AWG 18
• Input voltage: 12 V
• Maximum current: 11.6 A
• Colour: White
• Brand: InLine
• MPN: 26905H
• EAN: 4043718309061

How to use

Connect the male 3.5 x 1.35 mm plug to the power output of your adapter or device and plug the female connector into the device that requires power. Ensure the polarity and connector dimensions match your equipment before connecting. Route the cable to avoid sharp bends and secure it to prevent strain on connectors.

Recommendations

Check that the device accepts 12 V and that the current draw does not exceed 11.6 A. Avoid using the cable in wet conditions and keep it away from heat sources. If in doubt about compatibility, verify connector dimensions and polarity with the device manufacturer.
