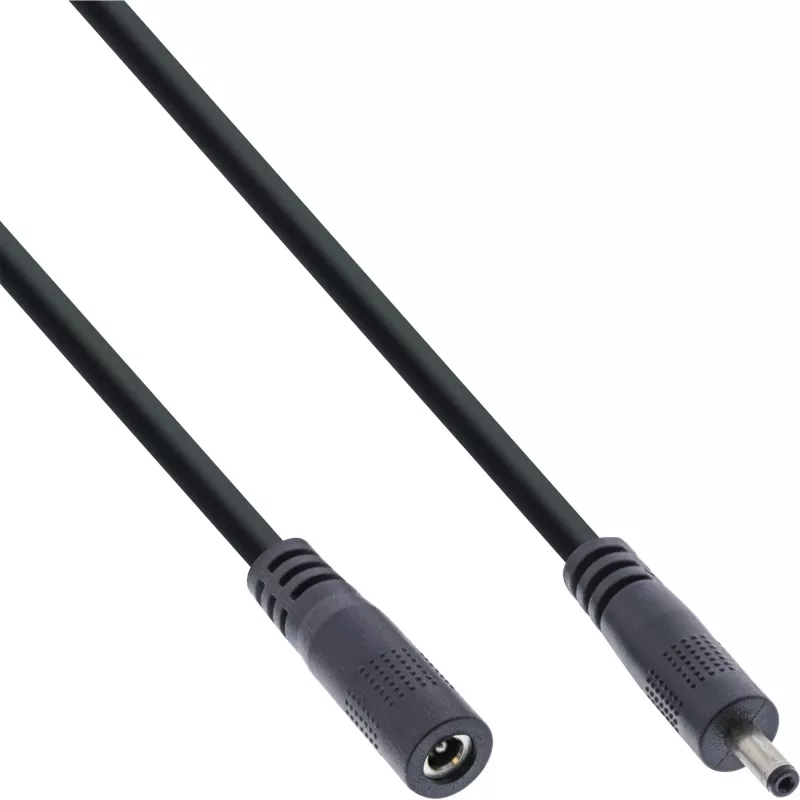

InLine DC extension cable, DC male/female 3.5x1.35mm, AWG 18, black 3m

The InLine DC extension cable, 3.5x1.35mm, AWG 18, black 3m is a 3-metre black extension lead with matching 3.5 x 1.35 mm male and female DC plugs. Designed for low-voltage DC connections, it supports up to 12 V and a maximum current of 11.6 A, and is suitable for extending power to devices that use the 3.5×1.35 mm barrel connector.

Advantages

The cable provides a reliable and flexible extension solution thanks to AWG 18 conductor size and standard 3.5×1.35 mm DC connectors. Its 3 m length gives additional reach without requiring soldering or adapter changes, and the black jacket offers a discreet appearance for home or professional AV setups.

Suitable for

• Extending DC power for routers, modems and small network devices
• Powering CCTV cameras and small security devices with 3.5×1.35 mm plugs
• Connecting 12 V LED strips, adapters and other low-voltage equipment

Key specifications

• Cable length: 3 m
• Connector 1: 3.5 x 1.35 mm (male)
• Connector 2: 3.5 x 1.35 mm (female)
• Conductor size: AWG 18
• Rated voltage: 12 V
• Maximum current: 11.6 A
• Colour: Black
• Brand: InLine, MPN: 26903I, EAN: 4043718309122

How to use

Connect the male 3.5×1.35 mm plug to the power source or adapter output and the female connector to the device’s DC input. Ensure connectors are fully seated to maintain a stable connection. Route the cable to avoid sharp bends or pinching and secure it as needed to prevent strain on the connectors.

Recommendations

Use this cable only with compatible 3.5×1.35 mm DC devices and within the specified 12 V/11.6 A limits. Do not expose the cable to excessive heat or moisture; inspect periodically for wear or damage and replace if insulation or connectors are compromised.
