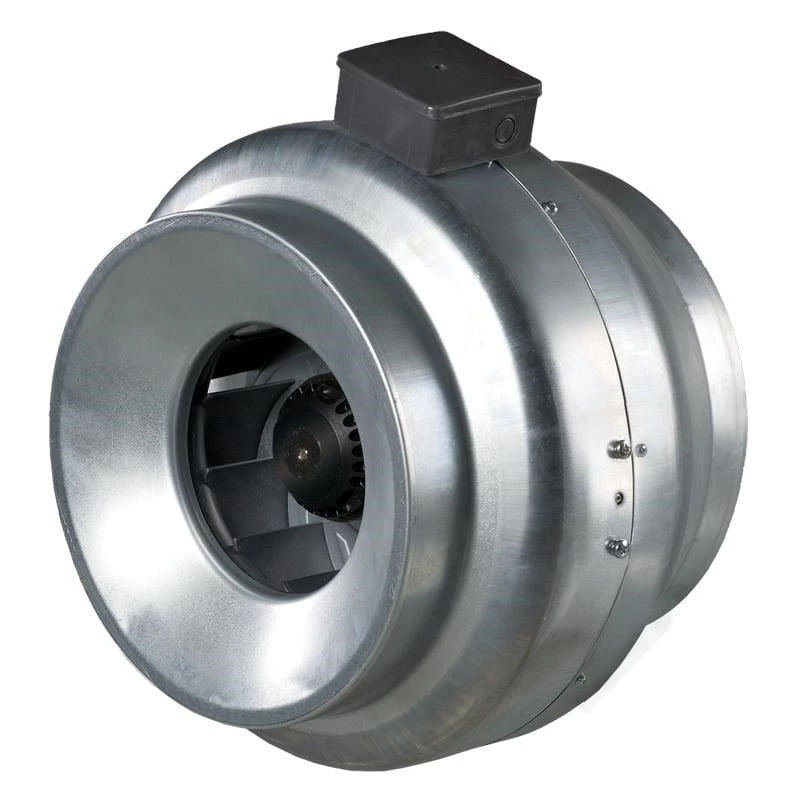

INLINE CENTRIFUGAL FAN VENTS VKMZ 100

The INLINE CENTRIFUGAL FAN VENTS VKMZ 100 is a high-performance inline duct fan designed for efficient air movement in ventilation systems. With a duct diameter of 100 mm and a maximum airflow of 260 m³/h, it is ideal for residential and light commercial applications. The fan features a backward-curved centrifugal impeller and a single-phase asynchronous motor, ensuring reliable operation and low noise levels.

Advantages

This fan offers a compact design for easy installation in ductwork, combined with high static pressure (310 Pa) for overcoming system resistance. The IPX4 rating provides protection against splashing water, making it suitable for use in bathrooms or kitchens. Thermal overload protection with automatic restart enhances safety and longevity.

Suitable for

• Ventilation of rooms requiring ducted exhaust
• Inline boosting of airflow in HVAC systems
• Use with external thyristor or autotransformer speed controllers

Key specifications

• Duct Diameter: 100 mm
• Max Airflow: 260 m³/h
• Max Static Pressure: 310 Pa
• Power Consumption: 79 W
• Current: 0.35 A
• Voltage: 230 V
• Frequency: 50 Hz
• Motor Speed: 2700 min⁻¹
• Noise Level at 3m: 43 dB(A)
• IP Rating: IPX4
• Motor Type: Single-phase asynchronous motor
• Casing Material: Steel with polymer coating
• Impeller Type: Backward-curved centrifugal
• Bearing Type: Ball bearings
• Thermal Overload Protection: Yes, with automatic restart
• Operating Temperature Range: -25 to +55 °C
• Speed Control Compatibility: External thyristor or autotransformer controllers
• Mounting Type: Inline duct

Recommendations

For optimal performance, pair this fan with a compatible speed controller. Ensure proper duct sealing to maximize airflow efficiency. Suitable for continuous operation within the specified temperature range.
