InLine B-76814Y networking cable Yellow 1.5 m Cat6a S/FTP (S-STP)

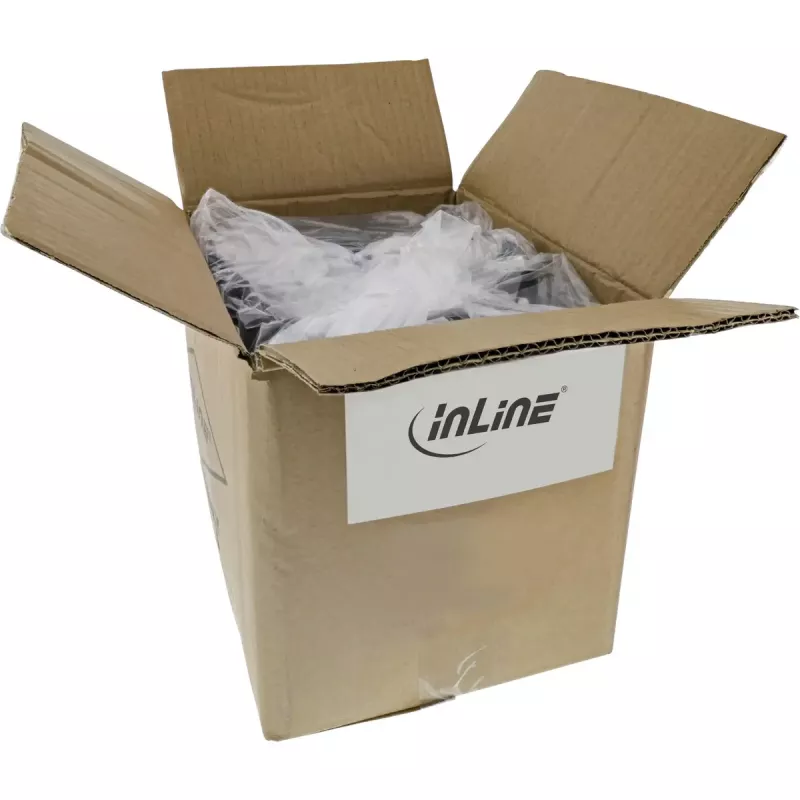

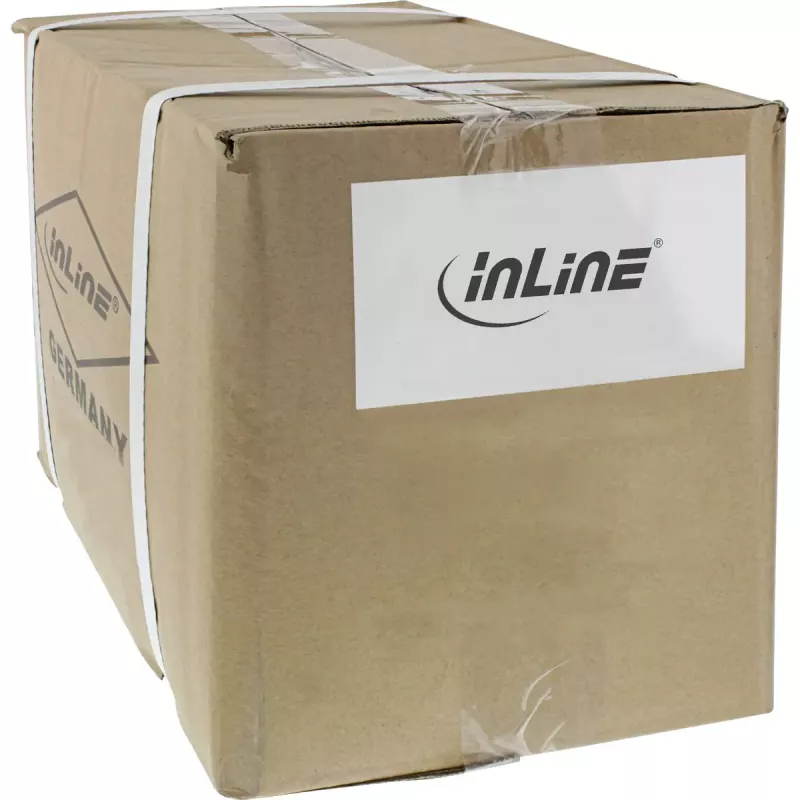

InLine B-76814Y networking cable: 50 pieces of item 76814Y supplied in a moisture-protective PE bag inside an outer cardboard carton. Cable conforms to TIA/EIA 568B2.1 and is constructed as S/FTP (PiMf) 4x2xAWG26/7 with solid copper conductors, an overall braided shield plus pair-wise foil shielding, and a halogen-free LSZH jacket compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2 and IEC 61034. The RJ45 connector has 50 µ" gold-plated contacts, a special design with snap-in protection and a blue-coloured housing for easy differentiation. Suitable for Gigabit and 10 Gigabit data transmission and rated up to 500 MHz; an enclosed test report is included.

Advantages

The InLine B-76814Y delivers balanced protection and performance through pair-wise foil shielding combined with an overall braided shield, reducing crosstalk and external interference. The LSZH, halogen-free jacket meets multiple IEC safety standards for reduced smoke and toxic gas in the event of fire. Blue, gold-plated RJ45 connectors ensure reliable contact and easy visual identification. Supplied as an ecoPack (50 pieces per carton) in a PE bag, the packaging minimizes waste and speeds unpacking for on-site installation or bulk use.

Suitable for

Key specifications

How to use

Remove the PE bag from the outer carton and separate the required number of cables. Install the shielded RJ45 connectors into compatible shielded outlets or patch panels, ensuring correct TIA/EIA 568B2.1 termination. Route the S/FTP cable following standard cable management and grounding practices for shielded cabling to maintain shielding effectiveness. Verify connections and performance with appropriate network testers; a test report up to 500 MHz is included.

Recommendations

For best performance, maintain correct pair orientation and grounding of the shield at appropriate termination points. Use compatible shielded connectors and follow local installation standards when deploying the InLine B-76814Y cable in high-speed or EMI-prone environments.
