InLine 2+2ports USB 3.2 Gen.1 host controller, PCIe, w/SATA power + LP bracket

Four USB 3.2 Gen.1 ports via PCIe:Two external ports directly on the card, two via the included slot bracket – ideal for flexible connection solutions.
Low profile suitable:Includes matching slot bracket – for SFF systems and flat enclosures in industrial or office environments.
Up to 5 Gb/s data transfer rate:Super-fast access to peripherals such as SSDs, printers or scanners – even when used in parallel.
UASP support & backward compatibility:Compatible with USB Attached SCSI Protocol for faster storage access – including legacy USB support.
High compatibility with Windows & Linux:Universally applicable in workstations, workshops, technical rooms or embedded PCs.

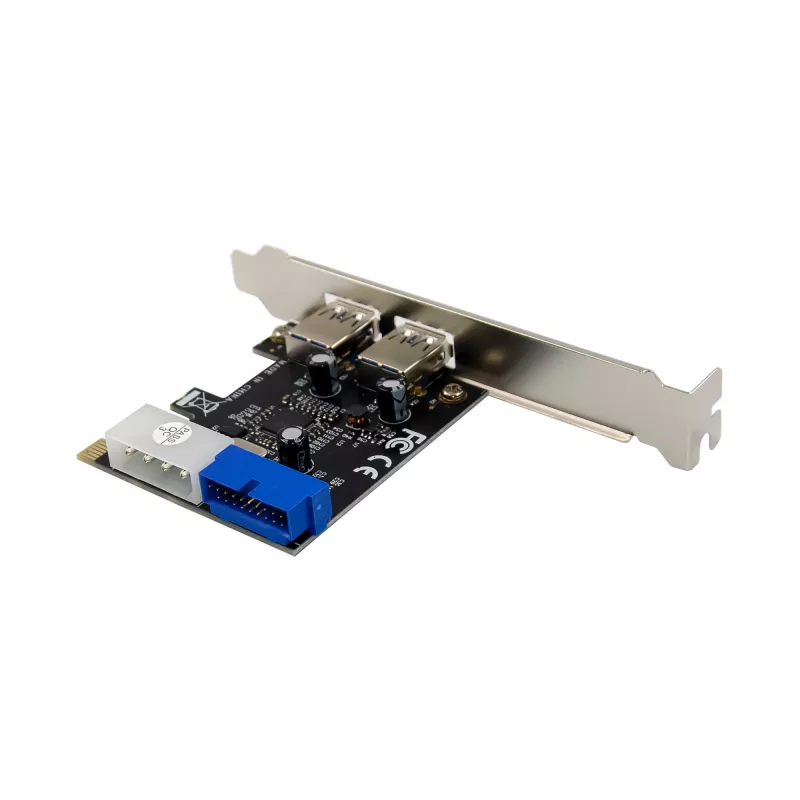

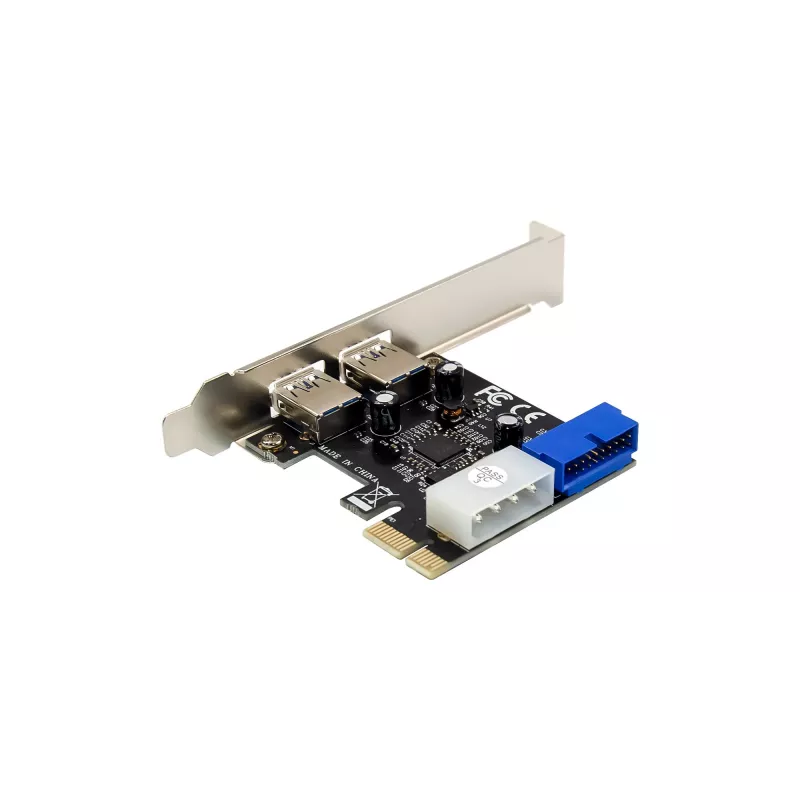

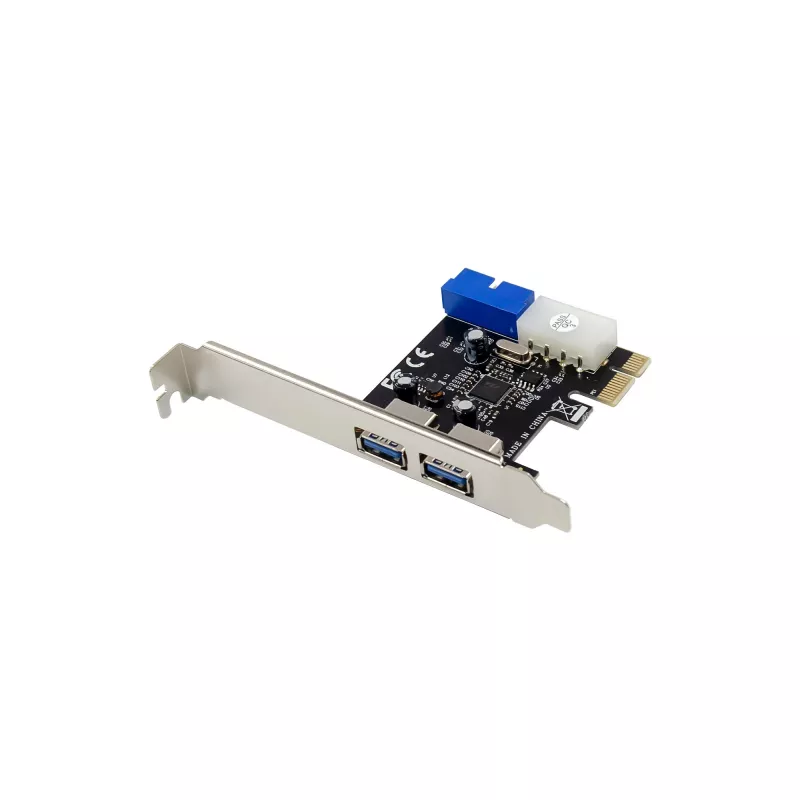

The InLine® interface card 76666G expands professional systems with four USB 3.2 Gen.1 ports – two directly external and two via an enclosed slot bracket, which is connected via an internal 19-pin header. This makes the card ideal for applications with diverse USB requirements.
It is based on the reliable VIA VL805 chipset and offers a data transfer rate of up to 5 Gb/s – ideal for fast communication with peripheral devices such as SSDs, RAID systems, printers or cameras. Support for the USB Attached SCSI Protocol (UASP) further accelerates data transfer, which is particularly advantageous when using modern mass storage devices.
The card is PCIe V2.0-compatible and offers single-lane performance with high stability. It complies with both the USB 3.x specification Revision 1.0 and the USB 2.0 specification and supports legacy functions.
Thanks to its low-profile format, the card is perfect for compact enclosures, workstations and industrial applications. It is compatible with Windows XP and above, Windows Server 2008 R2 and above, and Linux systems with kernel 2.6.x and above – ideal for modern and mixed IT infrastructures.

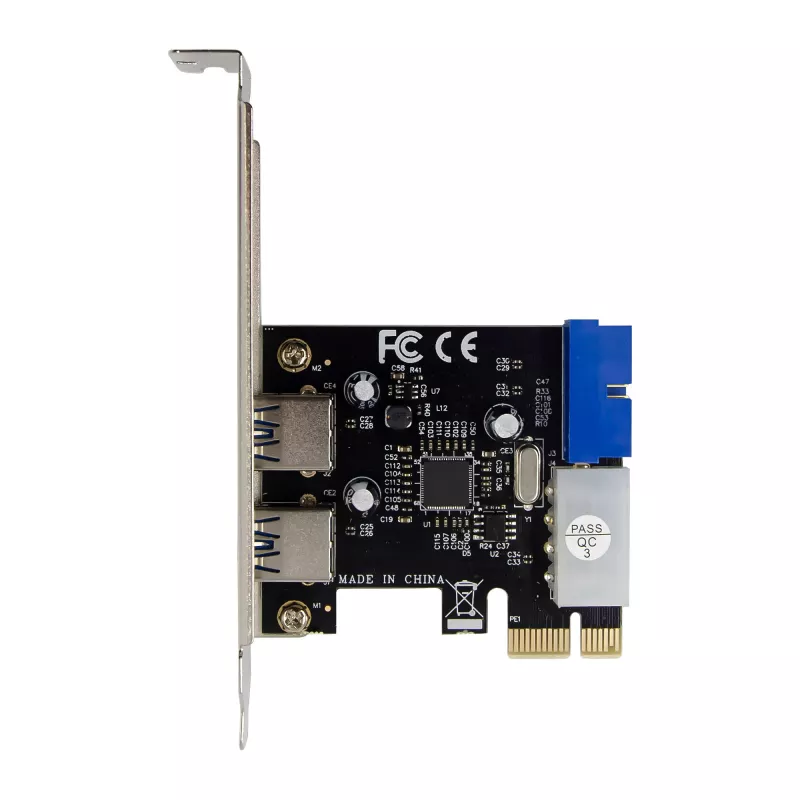

Chipset: VIA VL805
Interface: PCI Express V2.0 (x1)
External connections: 2x USB-A 3.2 Gen.1 (direct)
Internal connections: 1x 19-pin USB 3.2 Gen.1 header (for 2x USB-A via slot bracket)

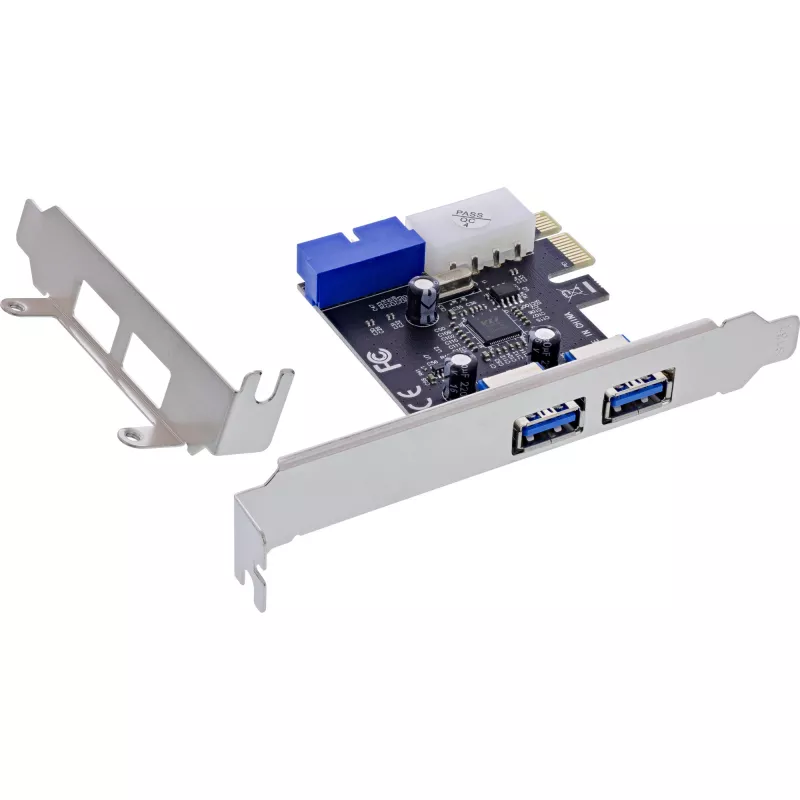

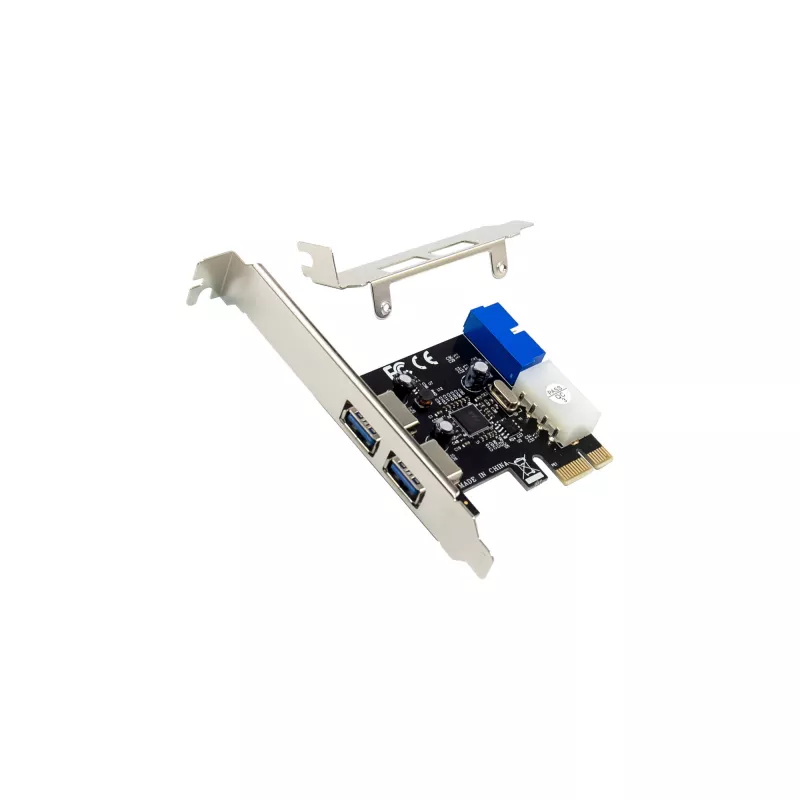

Slot bracket: Low-profile and standard included
Data rates: up to 5 Gb/s, backwards compatible
Protocol support: USB 3.x, USB 2.0, UASP, eXtensible Host Controller Interface
Compatible operating systems: Windows XP or newer, Server 2008 R2 or newer, Linux from 2.6.x
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 2+2ports USB 3.2 Gen.1 host controller, PCIe, w/SATA power + LP bracket. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Host interface gender: Male. Country of origin: China. Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows.... Width: 120 mm, Depth: 1.07 mm, Height: 80 mm

How to use

Power off the computer and install the card into an available PCIe slot on the motherboard. Secure the low-profile bracket in the case and connect a SATA power cable from the system power supply to the card’s SATA power connector. After booting the system, install any required drivers if the operating system does not recognize the controller automatically. Connect USB devices to the external or internal ports as needed.

Recommendations

Use a dedicated SATA power cable and avoid overloading the card with multiple high-power devices at the same time. For best performance, connect high-speed storage devices to the external USB 3.2 Gen 1 ports and ensure your system PCIe slot supports the required bandwidth.
