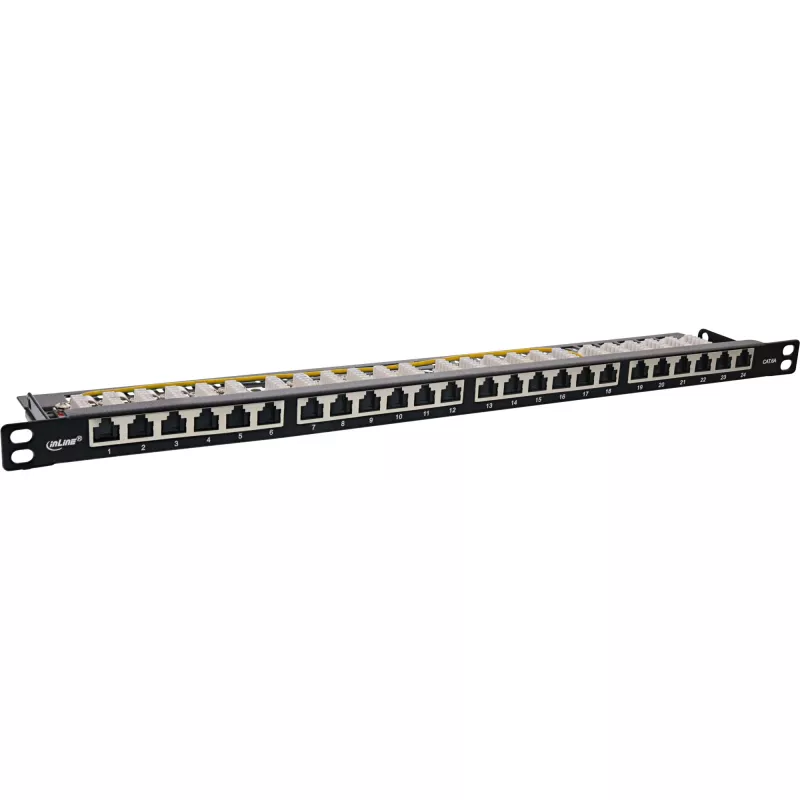

InLine 19 inch patch panel Cat.6A 0.5 U 24-port, with dust protection, black

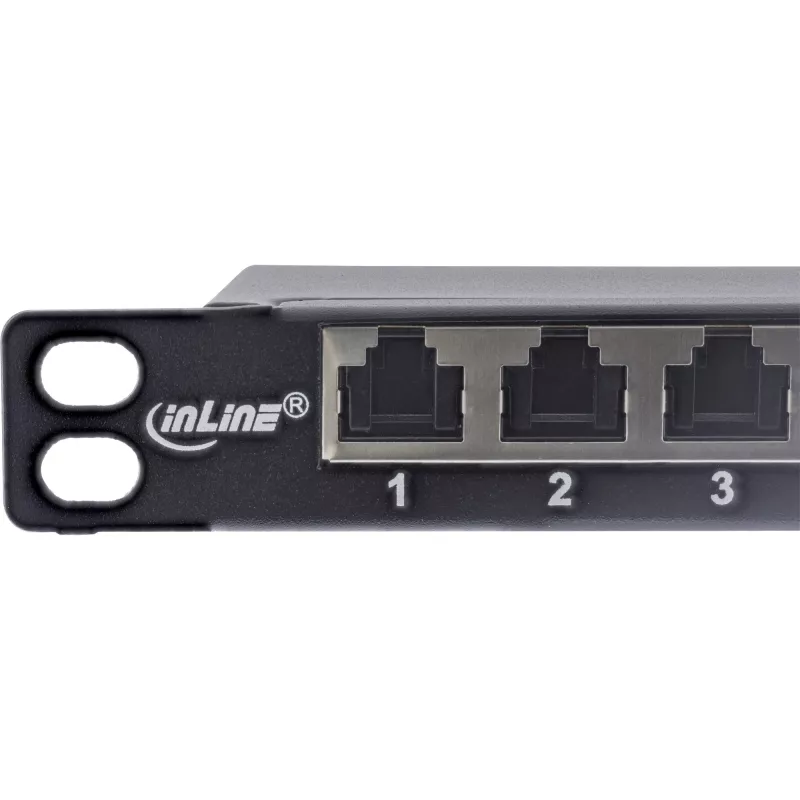

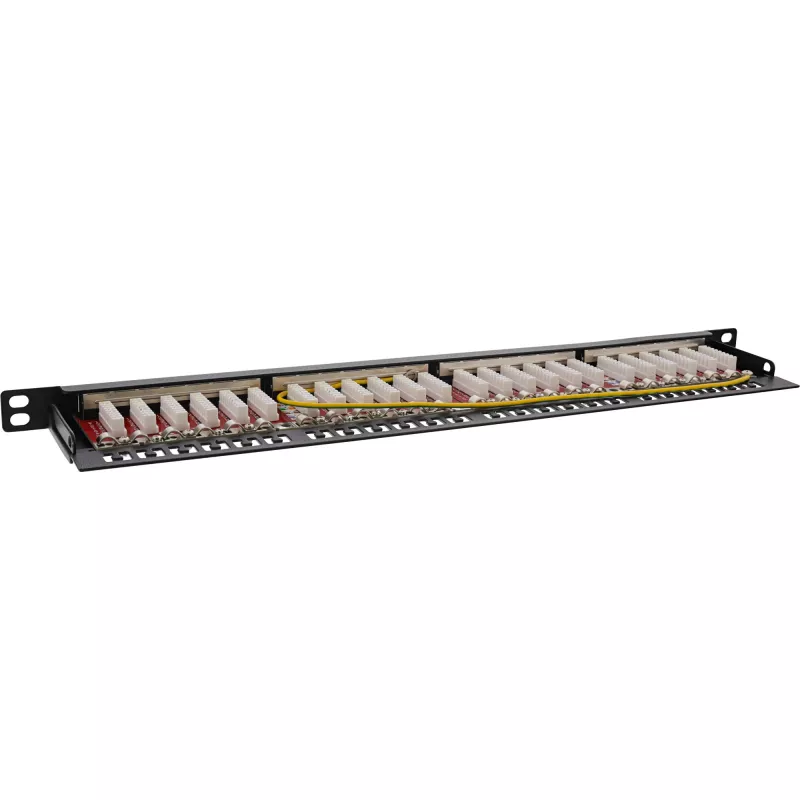

The InLine 19" patch panel Cat.6A 0.5 U 24-port black provides 24 RJ45 ports for organizing network terminations in a 19-inch rack. Designed for Cat.6A cabling, the fully shielded panel uses LSA insulation displacement connectors and features consecutively numbered RJ45 sockets. Each socket includes an integrated dust protection flap that folds inward when a network cable is inserted.

Advantages

Fully shielded design reduces electromagnetic interference for installed Cat.6A connections. LSA insulation displacement connectors allow secure, tool-friendly terminations for up to 24 cables. Numbered RJ45 ports simplify identification and cable management. Integrated dust protection on each socket helps prevent coarse dust ingress when ports are unused.

Suitable for

• Rack-mounted network installations in server rooms and data closets
• Cat.6A structured cabling backbones and horizontal runs
• Environments requiring shielded connections to reduce interference

Key specifications

• Ports quantity: 24 RJ45
• Standard: Cat.6A
• Mounting: 19" rack, 0.5 U (23 mm height)
• Connector type: LSA insulation displacement
• Shielding: Fully shielded
• Product colour: Black

How to use

Mount the patch panel into a 19" rack using appropriate screws. Terminate each network cable into the LSA insulation displacement connectors according to the chosen wiring scheme, then insert RJ45 plugs into the numbered ports. When a port is unused, leave the integrated dust flap closed to protect contacts; the flap folds inward automatically when an RJ45 plug is inserted.

Recommendations

For best performance, use certified Cat.6A cables and maintain proper grounding for the shielded panel. Label patch cords to match port numbering and avoid excessive bending or strain on terminated cables.
