InLine 10101B passive USB signal booster / repeater, model 10101B

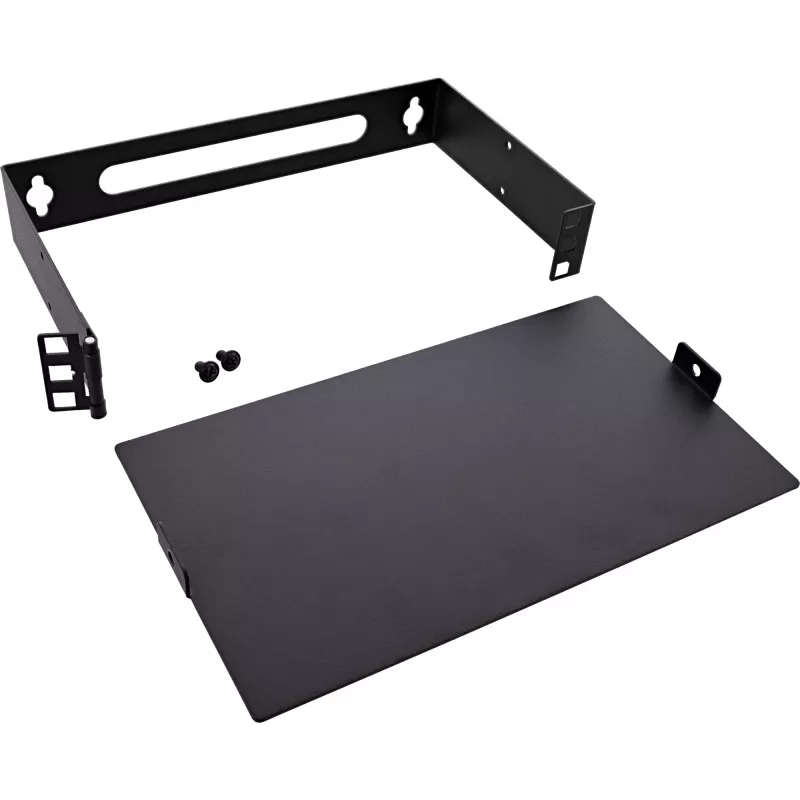

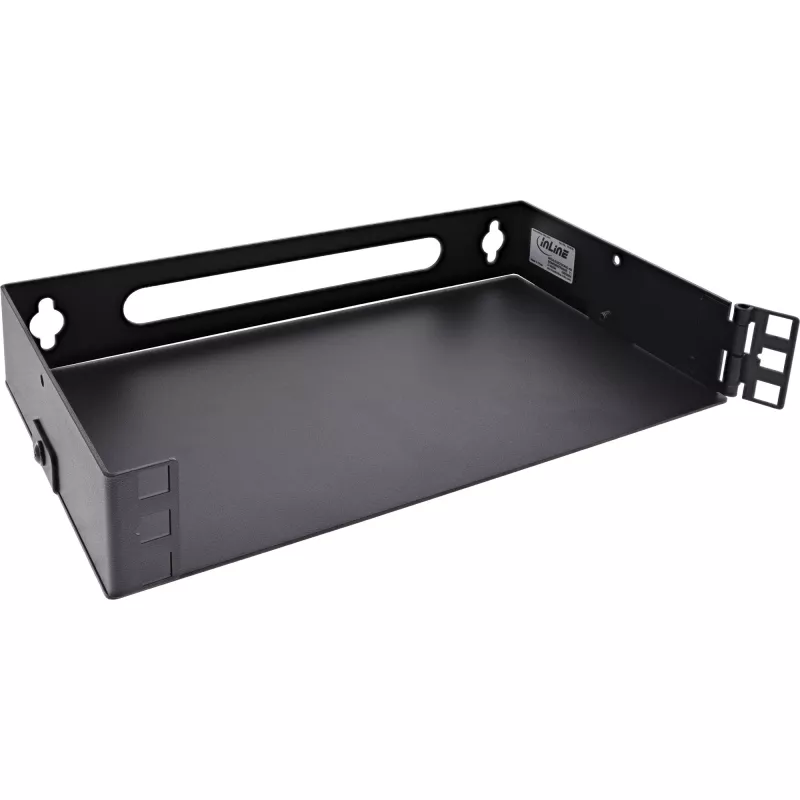

The InLine mini rack for wall mounting is a compact 10", 1U solution with a depth of 15.2 cm designed for small network and technical installations. Its steel housing is intended for secure attachment to walls in confined spaces such as equipment rooms, workshops, or secondary distribution boards. The product includes a mounting kit and supports installation of standard 10" devices like patch panels, mini switches, or small network modules.

Advantages

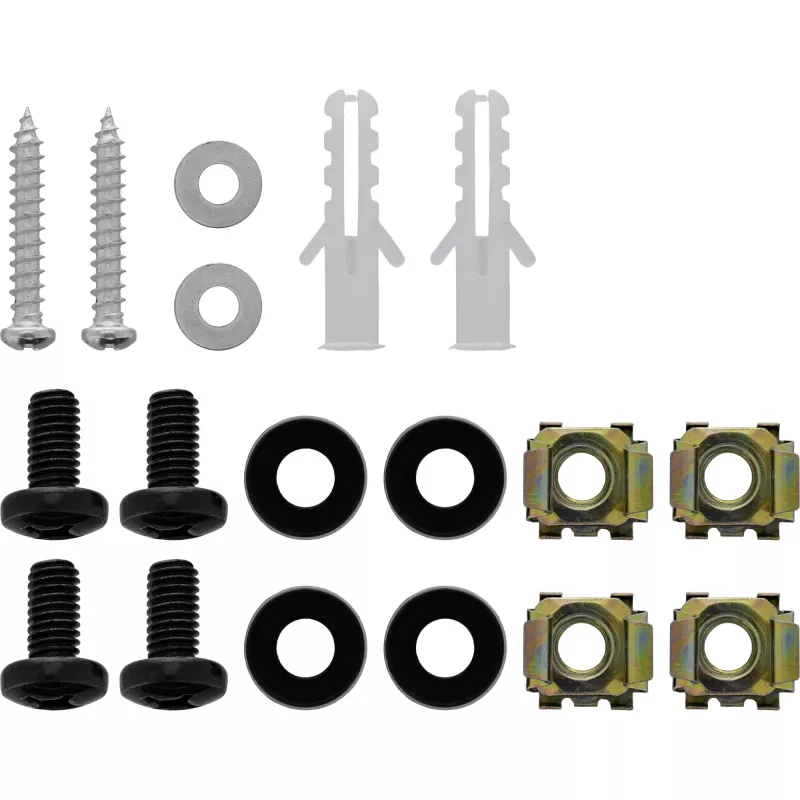

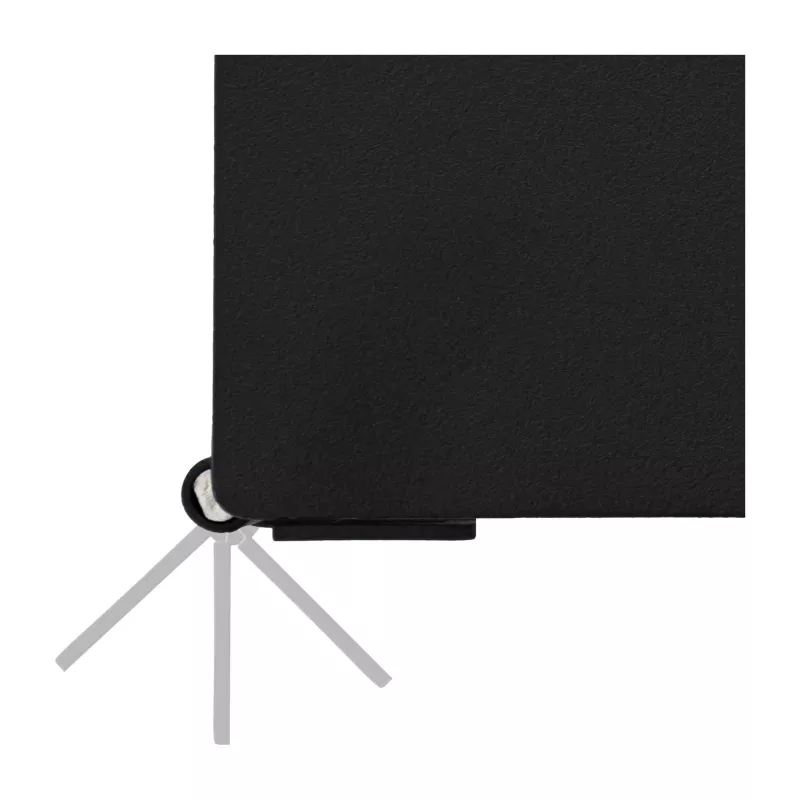

The housing is made from 1.5 mm SPCC steel with a robust black powder coating (RAL9005), providing stability and corrosion-resistant surface protection. The included mounting accessories (screws, dowels and four M6 cage nuts with screws) simplify and speed up installation. With a static load capacity of up to 10 kg and an extended depth of 15.2 cm, the rack accommodates deeper components while keeping a small wall-mounted footprint.

Suitable for

Key specifications

How to use

Position the mini rack on a suitable section of wall and mark the mounting points according to the housing holes. Use the supplied dowels and screws to fix the housing securely, inserting the M6 cage nuts into the internal rails before attaching 10" components. Fit standard 10" devices such as patch panels or mini switches into the rail using the included cage nuts and screws, then route and secure cabling as required.

Recommendations

Install on a load-bearing wall or suitable mounting surface and do not exceed the stated static load capacity of 10 kg. For optimal ventilation and service access, allow clearance around the rack and place deeper or heat-generating components considering the 15.2 cm housing depth.
