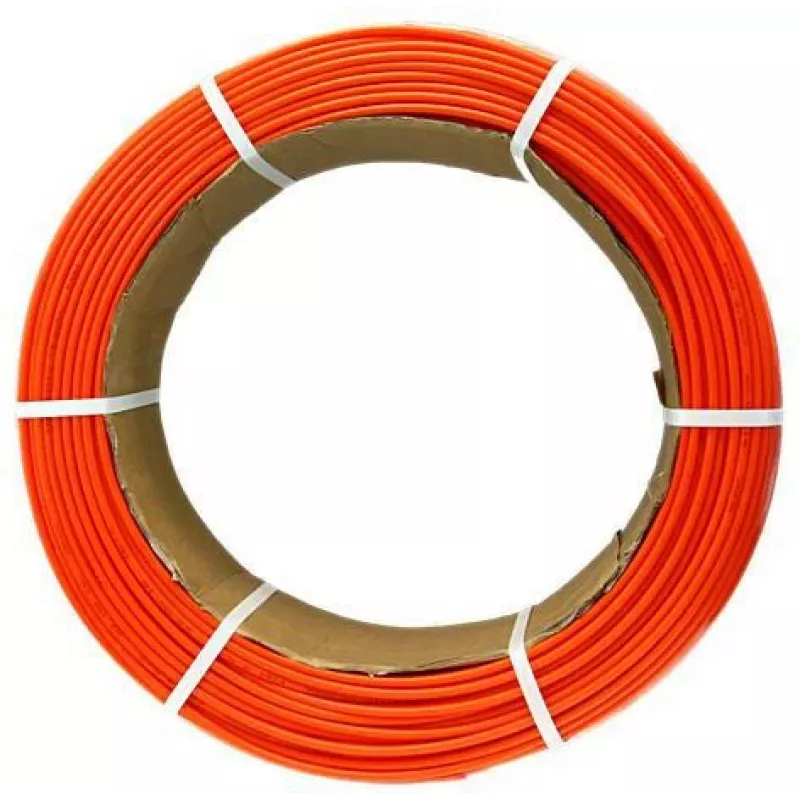

INGREMIO Underground Microduct 14/10 mm with Pilot, Orange, 200 m

Routing fiber optic cables underground demands a conduit that can withstand soil pressure, resist moisture and chemicals, and enable smooth cable blowing over long distances. The INGREMIO underground microduct 14/10 mm with pilot line meets these challenges with its robust HDPE construction and low-friction inner surface, ensuring reliable direct burial installation and efficient fiber deployment.

Who is it for

This microduct is intended for telecom installers, network contractors, and infrastructure builders who need a dependable conduit for fiber optic cables in outdoor underground environments. It is suitable for both new installations and upgrades to existing networks.

Main features

• Outer diameter 14 mm, inner diameter 10 mm, wall thickness 2 mm
• Made of high-density polyethylene (HDPE) for excellent crush and impact resistance
• Integrated pilot line (pre-installed pull tape) for easy cable pulling or blowing
• Low-friction inner surface (siliconized) reduces pulling tension and allows longer blowing distances
• High crush resistance: >450 N per 10 cm
• Tensile strength: >1000 N
• UV-resistant for temporary above-ground exposure during installation
• Good chemical resistance against common soil chemicals

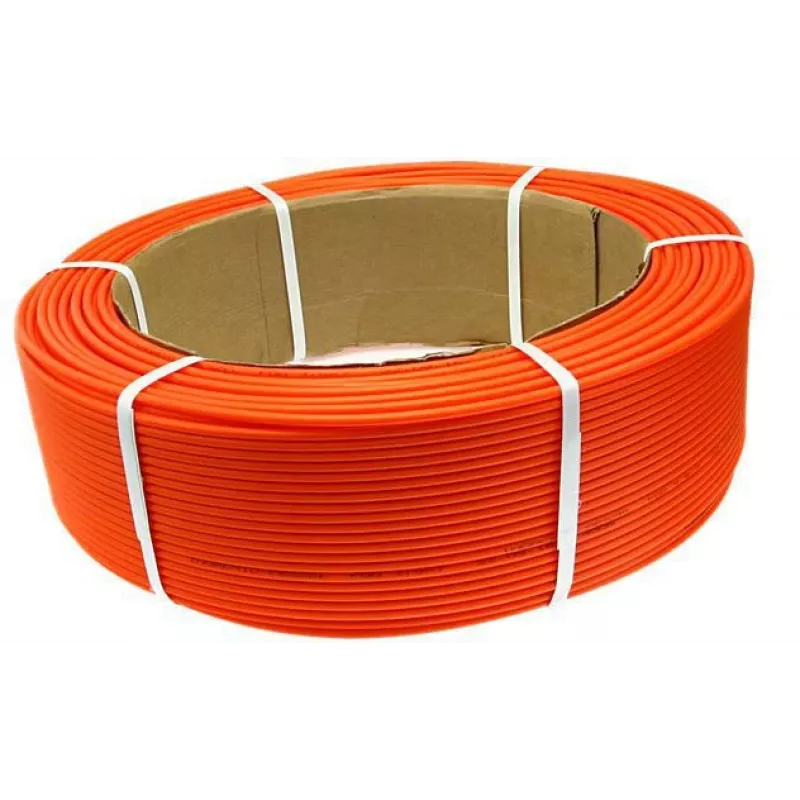

• Supplied on a plastic reel with 200 m length
• Compliant with PN-EN 61386-24 standard

Specifications

• Product type: Underground microduct
• Outer diameter: 14 mm
• Inner diameter: 10 mm
• Wall thickness: 2 mm
• Material: HDPE
• Length: 200 m
• Colour: Orange
• Inner surface: Low-friction (siliconized)
• Crush resistance: >450 N/10 cm
• Tensile strength: >1000 N
• Operating temperature range: -30°C to +60°C
• Installation temperature range: -10°C to +50°C
• Minimum bend radius: 140 mm (10 x OD)
• Pressure resistance: Up to 10 bar (for cable blowing)
• Standard compliance: PN-EN 61386-24

Tips

For optimal performance, use cable blowing equipment compatible with 14 mm microducts and maintain the recommended minimum bend radius to avoid kinking. The pilot line allows for easy pulling of cables, but ensure it is not damaged during installation. Store the reel in a dry place away from direct sunlight for extended periods.
