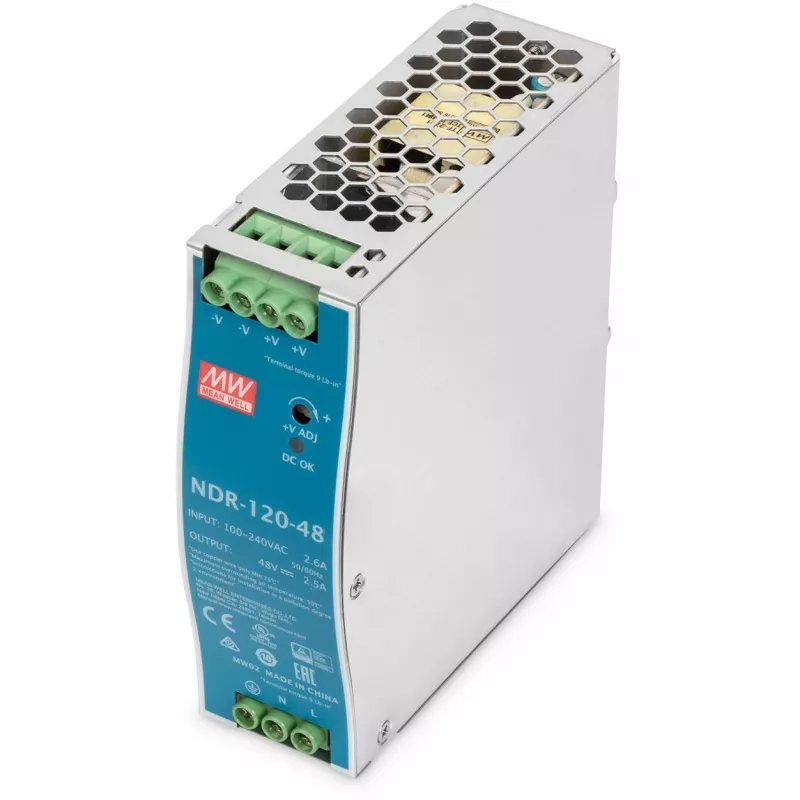

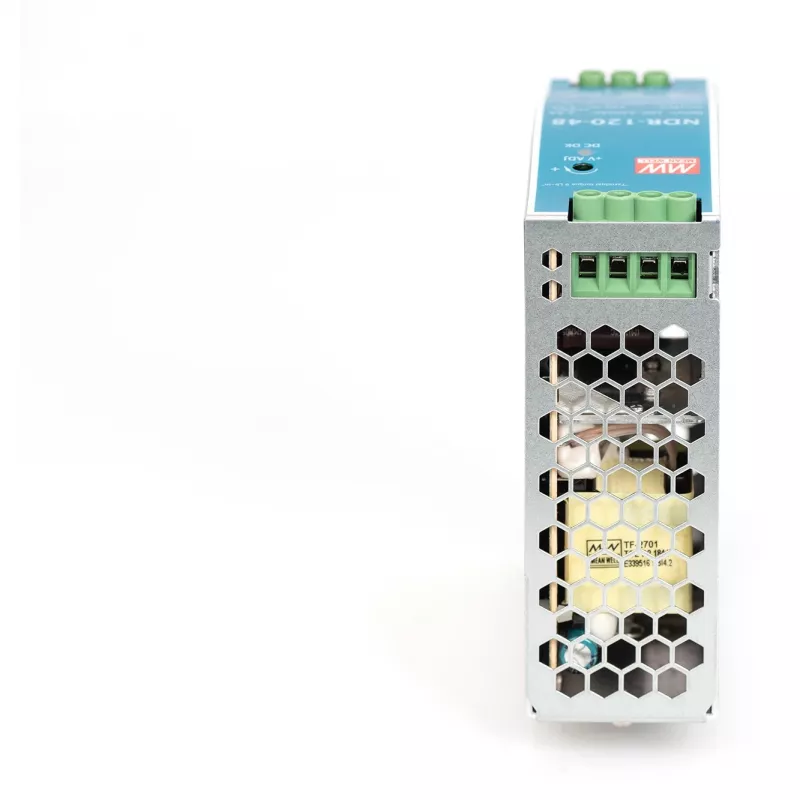

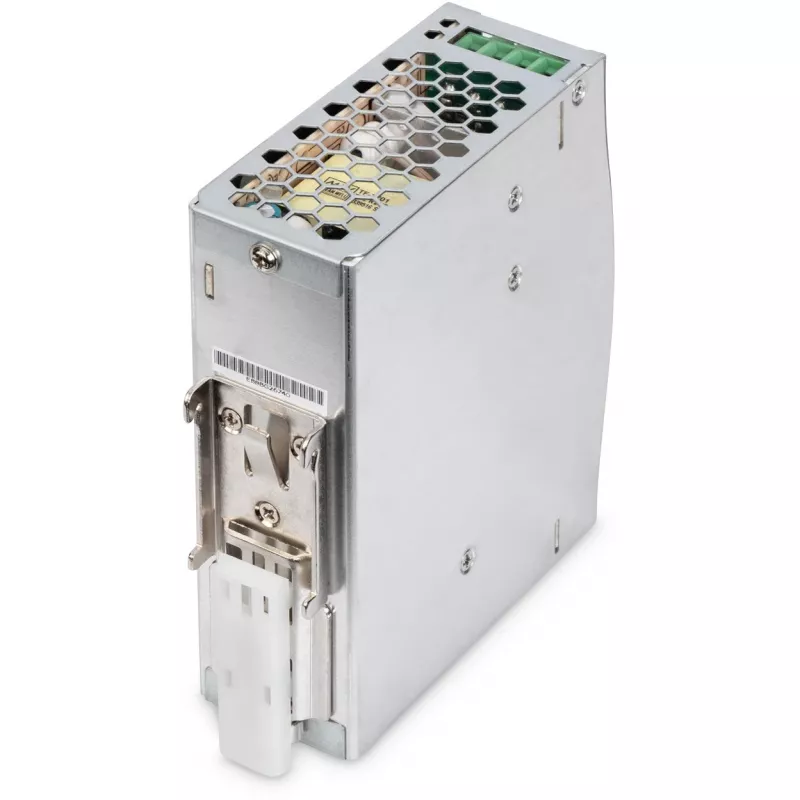

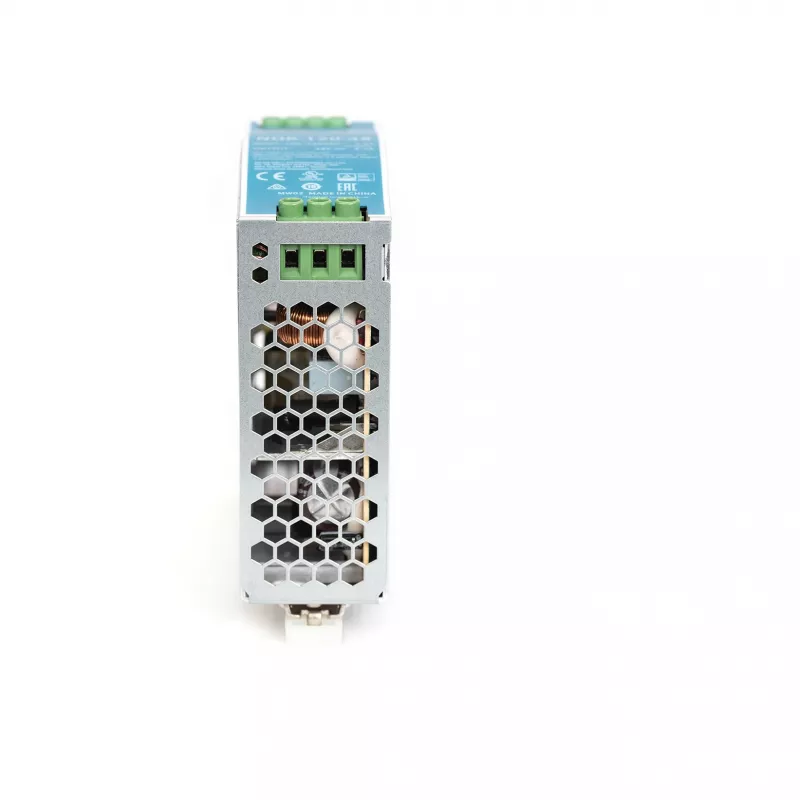

Industrial Power Supply Digitus DN-PWR12048 48V DC 120W

DIGITUS® slim DIN rail power supply delivers 48V DC at 120W in a compact metal housing designed for TS-35/7.5 or TS-35/15 mounting rails. The unit accepts a wide AC input range from 90V AC to 264V AC, supports operation in industrial environments, and provides built-in protection against overload, short-circuit, over-voltage and over-temperature.

Advantages

The DIN rail power supply offers a slim profile with improved heat dissipation due to its metal housing, an 88% typical efficiency and dependable operation across a wide ambient temperature range from -20°C to 60°C. Broad AC input compatibility simplifies wiring and deployment in varied electrical installations.

Key specifications

• Input voltage: 90V AC ~ 264V AC
• Output voltage: 48V DC
• Output power: 120W
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Efficiency: 88% (typical)
• Operating temperature: -20°C to 60°C
• Protections: overload, short-circuit, over-voltage, over-temperature

How to use

Mount the power supply on a TS-35/7.5 or TS-35/15 DIN rail and connect the AC input within the 90–264V AC range. Verify correct polarity and connect the 48V DC output to the load. Ensure adequate ventilation around the metal housing to maintain thermal performance, and observe the specified ambient temperature limits during installation and operation.

Recommendations

For reliable long-term operation, install the unit in a clean, well-ventilated enclosure, protect the input and output circuits with appropriate fusing or breakers, and ensure the connected load does not exceed the rated 120W output.
