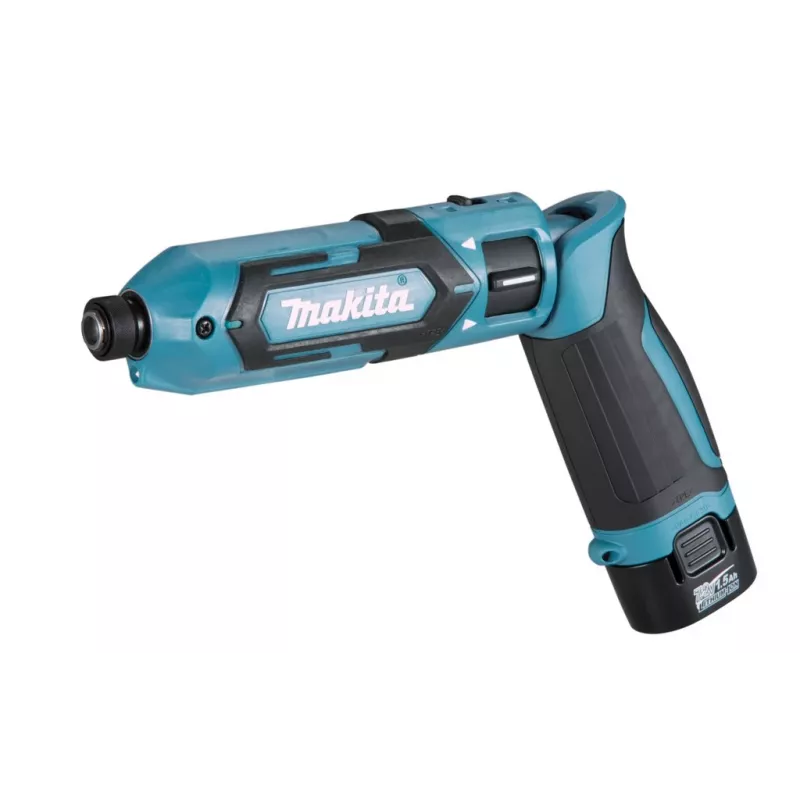

Impact Wrench Makita TD022DSE 1/4 inch 2450 RPM 25 N⋅m Black, Blue

The Makita TD022DSE is a cordless 1/4" pencil impact wrench with a compact, lightweight design and a maximum torque of 25 N⋅m. Based on the TD021D model, this impact wrench offers an idle speed of up to 2450 RPM and an impact rate of 3000 bpm. It is powered by a 1.5 Ah Lithium‑Ion battery and weighs approximately 0.56 kg, making it suitable for fastening tasks in tight spaces and for frequent use where portability is important.

Advantages

The Makita TD022DSE combines a small form factor and low weight with reliable impact performance, providing efficient fastening for M3, M6 and M8 screw diameters. Built‑in LED lighting improves visibility in dim work areas, and the cordless battery design allows freedom of movement. The tool includes a reverse function for easy removal of fasteners.

Suitable for

• Assembly and disassembly of furniture and fixtures
• Electrical and HVAC installations where a compact driver is needed
• Maintenance tasks and light mechanical work in confined spaces

Key specifications

• Model: TD022DSE
• Product type: Impact wrench
• Drive size: 1/4"
• Maximum torque: 25 N⋅m
• Idle speed (max): 2450 RPM
• Impact rate: 3000 bpm
• Battery: Lithium‑Ion, 1.5 Ah
• Weight: 0.56 kg
• Built‑in light: Yes
• Reverse: Yes
• Colour: Black, Blue
• MPN: TD022DSE
• EAN: 0088381833271

How to use

Insert and secure a compatible 1/4" bit in the chuck, charge the Lithium‑Ion battery before use and attach it to the tool. Select the correct orientation for tightening or loosening using the reverse control. Apply steady pressure and start the tool at a controlled trigger pull to achieve the desired fastening. Use short bursts when working with small screws (M3) and monitor progress to avoid over‑tightening larger fasteners (M6, M8).

Recommendations

For prolonged battery life, fully charge the battery before storage and avoid deep discharges. Use appropriate 1/4" bits and wear eye protection when operating the impact wrench. Refer to the manufacturer’s manual for maintenance intervals and torque guidance for specific fastener types.
