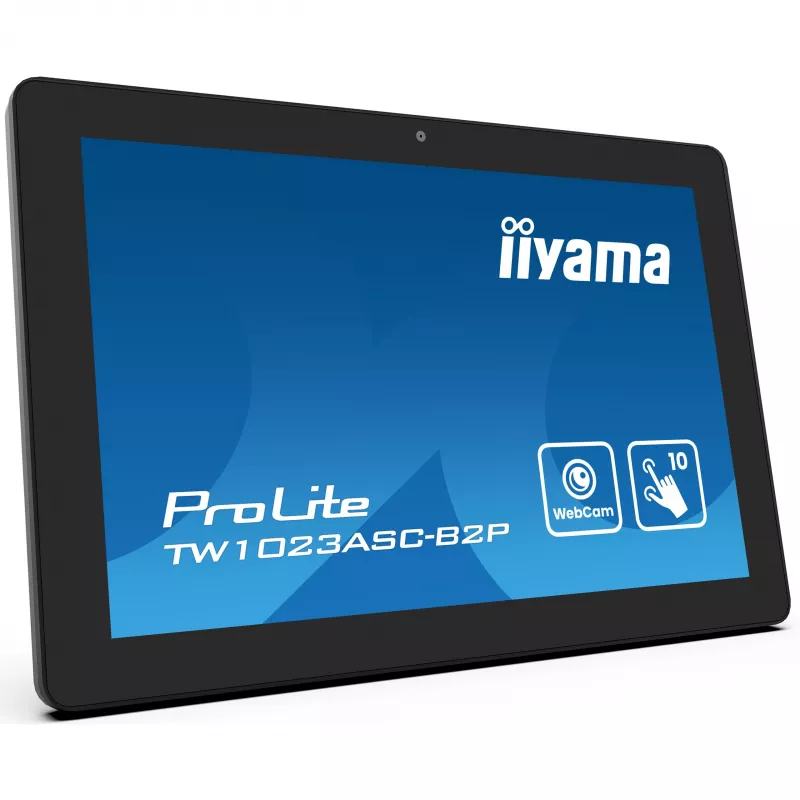

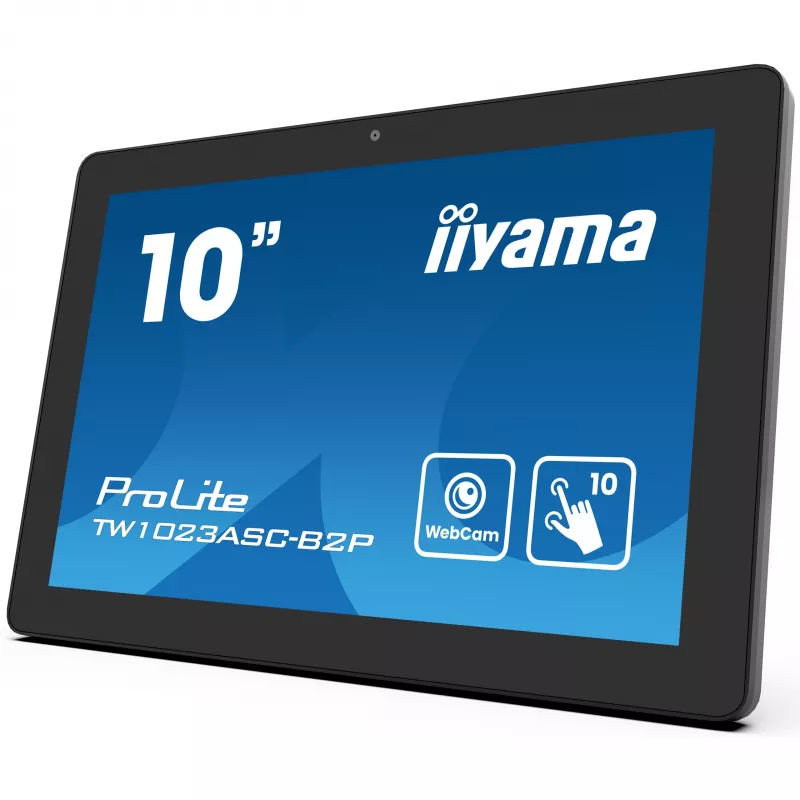

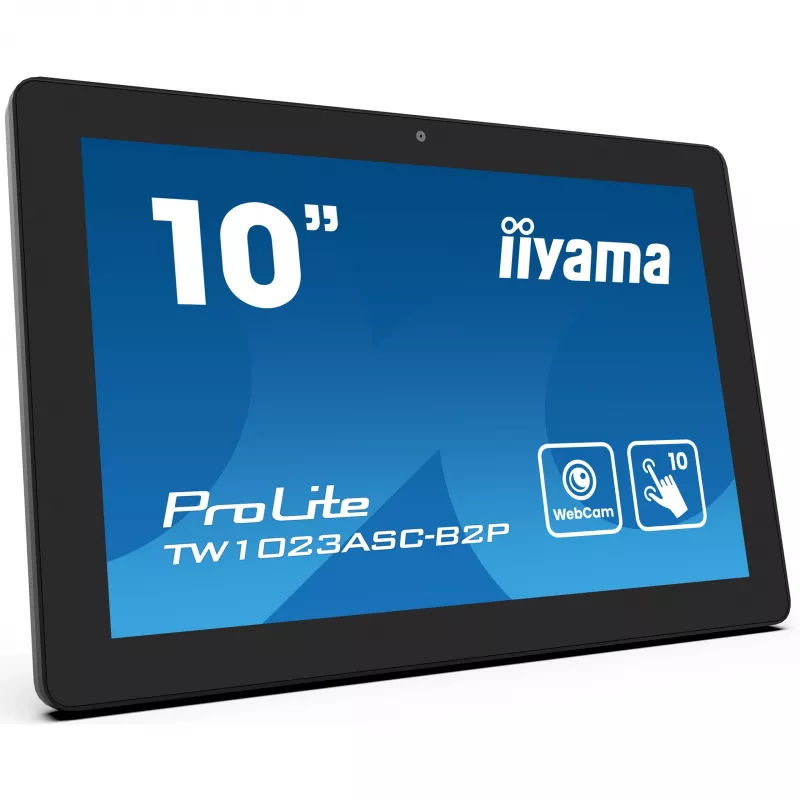

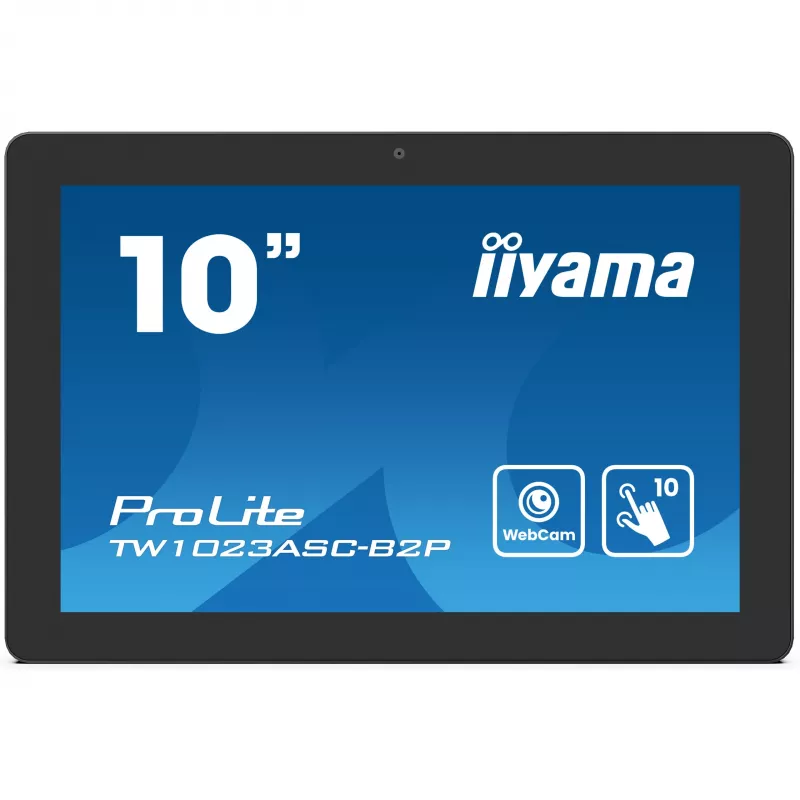

IIYAMA TW1023ASC-B2P 10.1 inch Android Panel PC with PoE Touch Monitor

The IIYAMA TW1023ASC-B2P is a 10.1-inch Android-based panel PC featuring a projective capacitive 10-point touchscreen and Power over Ethernet (PoE) capability. Designed for interactive applications, it combines a high-brightness IPS display with a sleek edge-to-edge glass design, making it ideal for retail, hospitality, and industrial environments.

Advantages

Integrated Android operating system eliminates the need for an external PC. PoE support simplifies installation by delivering power and data over a single Ethernet cable. The 10-point multi-touch allows intuitive gesture control, even with gloves. High brightness (387 cd/m² with touch) ensures readability in well-lit conditions.

Suitable for

• Point-of-Information (POI) kiosks
• Digital signage and menu boards
• Industrial control panels
• Interactive retail displays

Key specifications

• Display: 10.1" IPS, 1280x800 (WXGA), 16:10, 450 cd/m² (387 cd/m² with touch), 1000:1 contrast, 25ms response time
• Touch: Projected capacitive, 10-point multi-touch, supports finger, stylus, and latex gloves
• Operating System: Android
• Connectivity: 1x mini HDMI (1280x720@60Hz), 4x USB (1x 3.2 Gen1, 2x 2.0, 1x Micro OTG), 1x RJ45 with PoE (IEEE 802.3at), 1x audio input (mini jack), built-in speakers (2x 1.5W)
• Power: PoE (Power over Ethernet) or external power supply

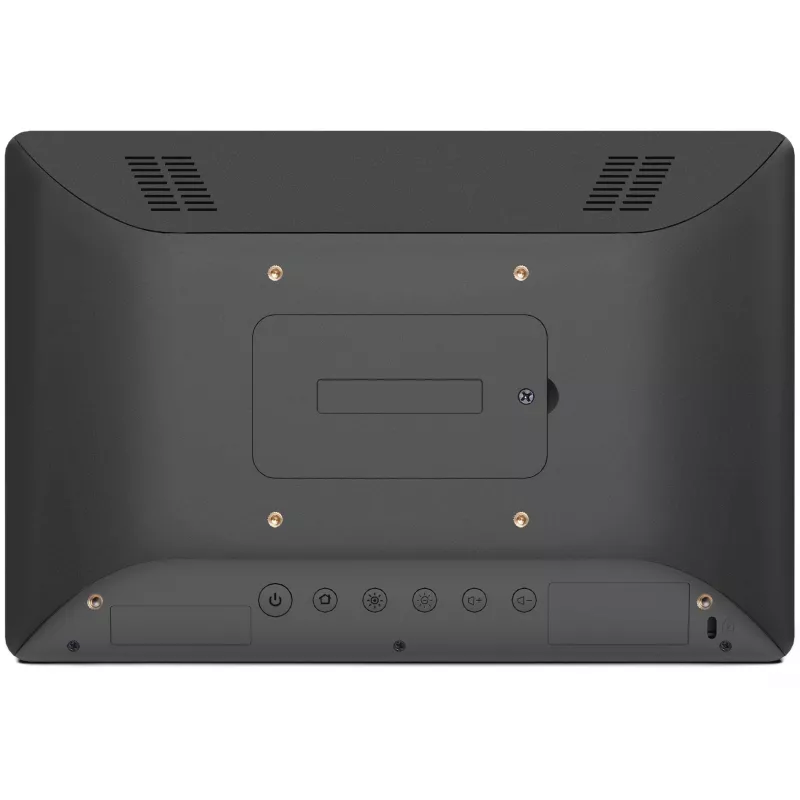

• VESA mount: 75x75mm
• Colour: Black matte

Recommendations

For optimal performance, use a PoE switch compliant with IEEE 802.3at. The device is best suited for wall-mounted or stand-alone interactive applications where a compact, all-in-one solution is required.
