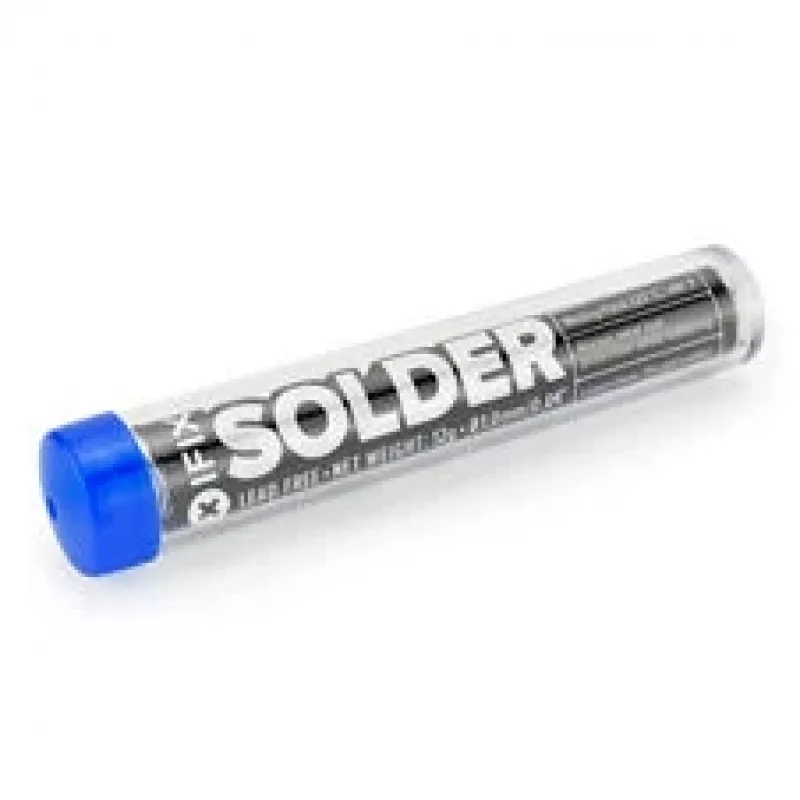

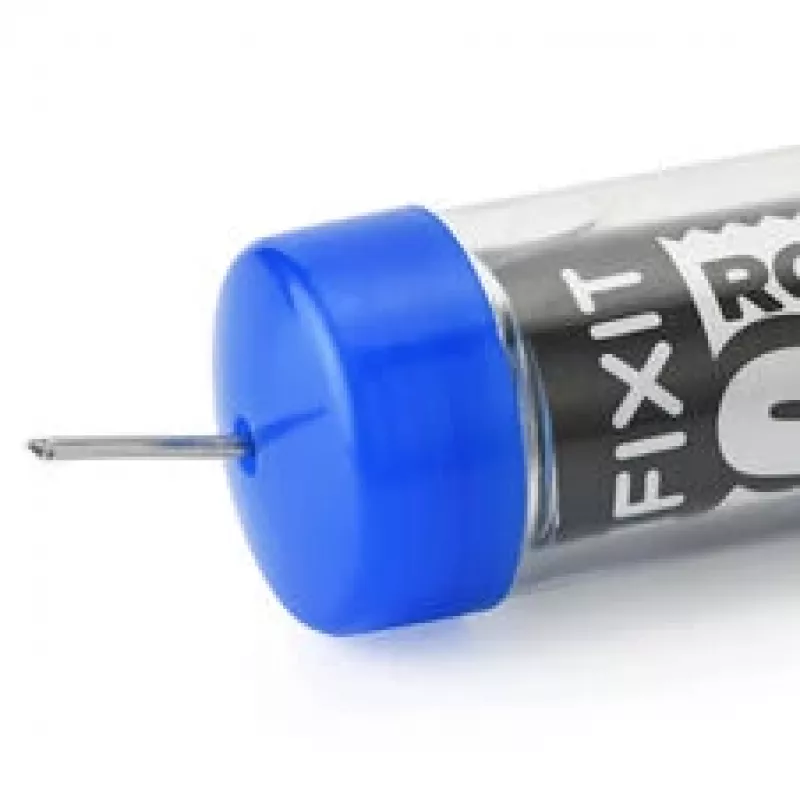

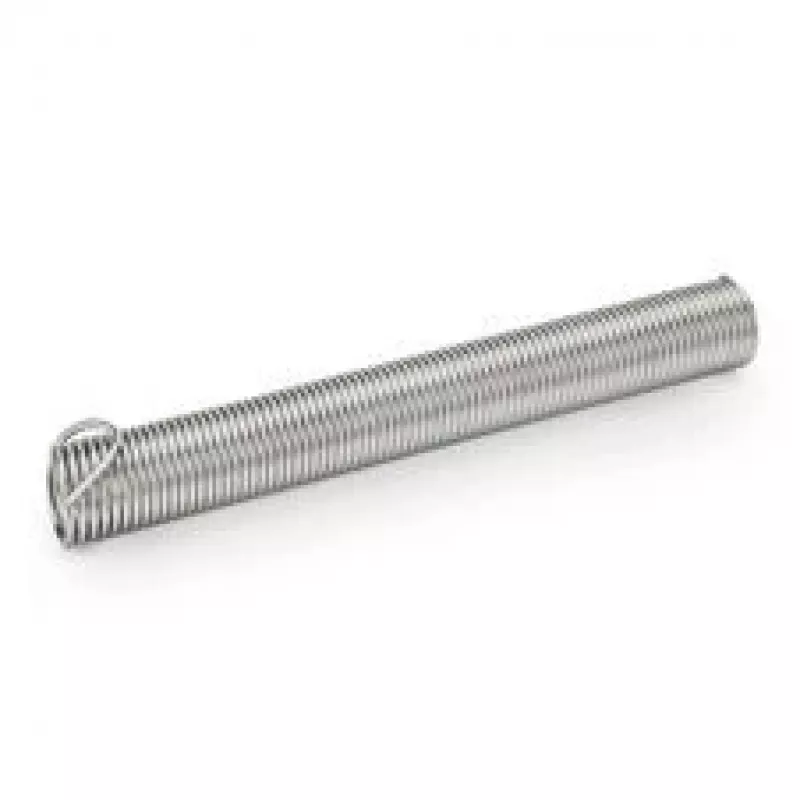

iFixit Lead-Free Solder Wire 0.8 mm 10 g

The iFixit Lead-Free Solder Wire is a high-quality, rosin-core solder designed for general electronics repair and PCB soldering. With a composition of Sn99.3/Cu0.7 (99.3% tin, 0.7% copper), it offers excellent electrical conductivity and thermal performance. The 0.8 mm diameter wire is ideal for precise soldering on circuit boards, and the 10 g mini spool is perfect for small repairs or hobbyist projects.

Advantages

This lead-free solder is RoHS compliant and environmentally friendly. The no-clean flux core ensures low residue and non-corrosive joints, reducing post-soldering cleanup. It produces low smoke and low odor, making it comfortable to use in workshops. The optimized surface tension provides good wetting for reliable solder joints.

Suitable for

• General electronics repair
• PCB soldering and rework
• Hobbyist and DIY projects
• Professional technicians

Key specifications

• Alloy: Sn99.3/Cu0.7 (Tin 99.3%, Copper 0.7%)
• Wire Diameter: 0.8 mm (0.031 inches)
• Net Weight: 10 g (0.35 oz)
• Flux Type: Rosin Core (No-Clean)
• Flux Content: 2.0%
• Melting Point: 227 °C (440 °F)
• Recommended Soldering Temperature: 300 - 350 °C (572 - 662 °F)
• RoHS Compliant: Yes

Recommendations

For best results, use a soldering iron with temperature control set between 300-350 °C. Ensure surfaces are clean and pre-tinned if necessary. Store in a cool, dry place.
