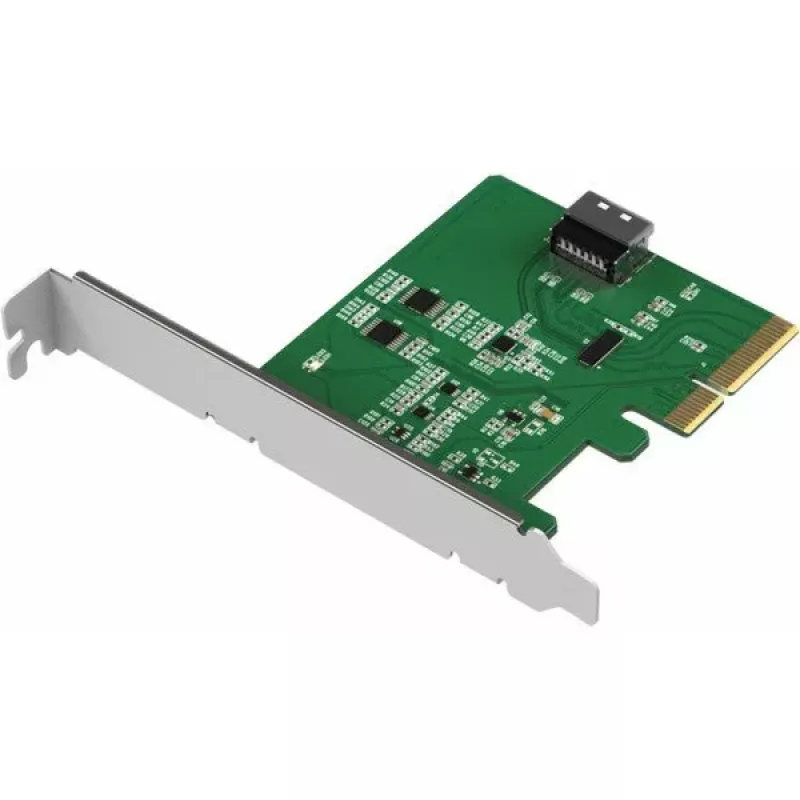

ICY DOCK EXLink MB408A5 MCIO 4i to PCIe 5.0 x4 Adapter with Redriver

The ICY DOCK EXLink MB408A5 is a high-performance PCIe 5.0 x4 adapter card designed to connect MCIO 4i (SFF-TA-1016) devices to a PCIe 5.0 x4 slot. Featuring an integrated Redriver for enhanced signal integrity, this low-profile add-in card supports longer MCIO cables and ensures reliable data transmission at speeds up to 128 GB/s. Ideal for servers, workstations, and HPC environments, it is driverless and OS-independent, making it a plug-and-play solution for NVMe storage expansion.

Advantages

Integrated Redriver technology boosts signal quality over longer distances, enabling flexible cable routing. The included low-profile and full-height brackets ensure compatibility with various chassis sizes. Bus-powered design eliminates the need for external power, simplifying installation.

Suitable for

• Server and data center upgrades
• Workstation storage expansion
• High-performance computing (HPC) systems
• NVMe SSD connectivity via MCIO cables

Key specifications

• Host Interface: PCIe 5.0 x4
• Device Connector: MCIO 4i (SFF-TA-1016)
• Form Factor: Low-profile PCIe Add-in Card
• Bracket: Low-profile and Full-height (included)
• Max Data Transfer Rate: 128 GB/s (theoretical)
• Power Source: PCIe Bus Power
• Operating Temperature: 0°C to 60°C
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, pair this adapter with high-quality MCIO cables and NVMe SSDs that support PCIe 5.0. Ensure your system has a PCIe 5.0 x4 slot available.
