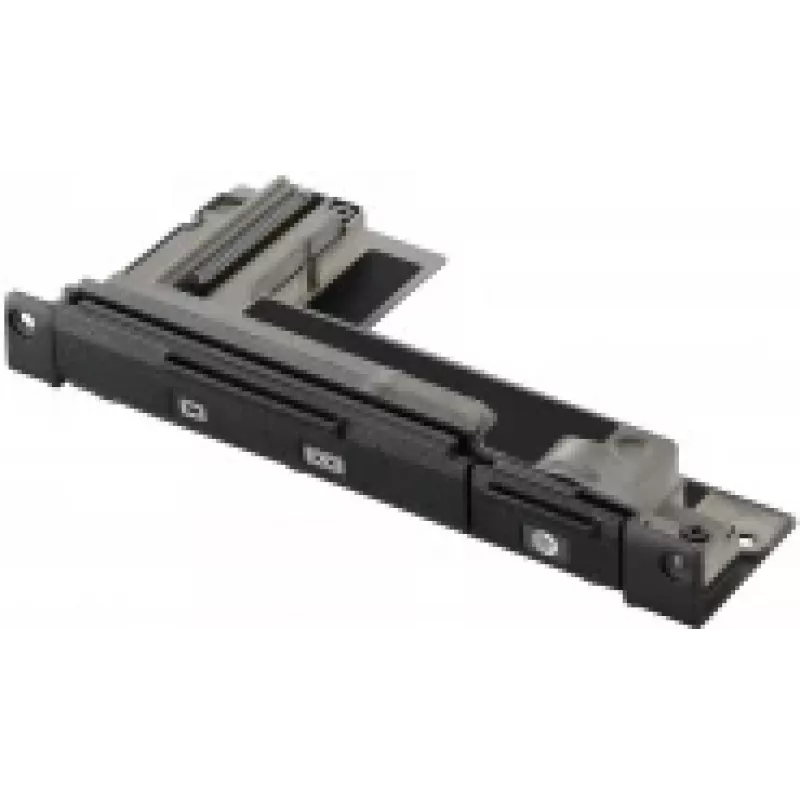

I/O board Panasonic FZ-VCN553U TOUGHBOOK 55

The Panasonic FZ-VCN553U I/O board is a replacement expansion module for the TOUGHBOOK 55 that provides additional rear connectivity. It includes one VGA port, one serial (RS-232) port and one rugged USB 2.0 port designed to fit the rear expansion slot and restore or extend peripheral connections on the laptop.

Advantages

This I/O board restores core legacy and display connectivity while maintaining the TOUGHBOOK 55's rugged design compatibility. It offers a compact, OEM-compatible solution for replacing a damaged or missing rear expansion module, helping to return the device to full peripheral functionality without modifying the main chassis.

Suitable for

• Connecting external monitors via VGA
• Interfacing with serial devices such as barcode scanners or industrial controllers
• Attaching USB peripherals that require a rugged, rear-mounted USB 2.0 port

Key specifications

• Ports: 1 × VGA video, 1 × serial (RS-232), 1 × rugged USB 2.0
• Mounting: Designed for the rear expansion slot of Panasonic TOUGHBOOK 55
• Compatibility: Panasonic TOUGHBOOK 55 (rear expansion module form factor)

How to use

Power down the TOUGHBOOK 55, remove the battery if applicable, and open the rear expansion slot according to the service manual. Install the FZ-VCN553U module into the designated slot and secure it with the original fasteners. Reconnect the battery and power on the unit. After booting, verify that connected VGA, serial and USB devices are recognized by the operating system and install any required drivers.

Recommendations

Use this OEM Panasonic I/O board to replace a damaged rear expansion module; ensure the TOUGHBOOK is powered off and grounded during installation. For serial or VGA peripherals, confirm cable pinouts and driver compatibility for your operating environment.
