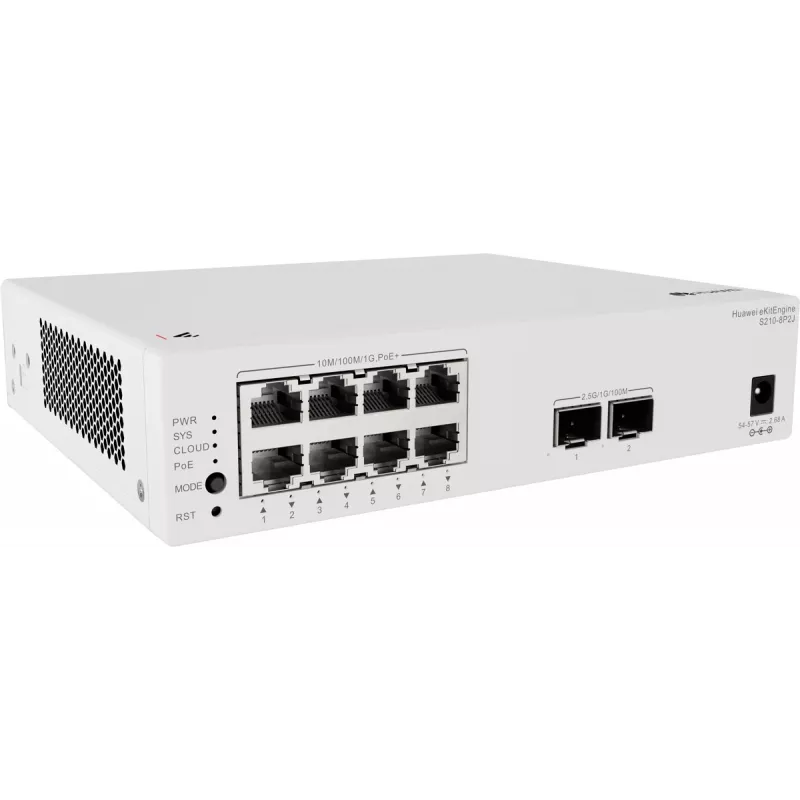

Huawei S210-8P2J Managed L2 Switch with 8 Gigabit PoE+ Ports and 2 SFP Uplinks, 128W PoE Budget 98012922-001

This Huawei S210-8P2J is a fully managed Layer 2 switch that combines eight Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) and two 2.5G SFP uplink ports. With a total PoE budget of 128W, it can power multiple devices such as IP cameras, VoIP phones, and wireless access points directly through the network cable, simplifying installation and reducing cabling costs. The switch offers advanced management features including VLAN, QoS, and robust security, making it an excellent choice for small to medium-sized business networks.

Advantages

The S210-8P2J delivers reliable performance with a switching capacity of 26 Gbps and a forwarding rate of 19.34 Mpps. Its 8K MAC address table and jumbo frame support up to 9 KB ensure efficient handling of large data transfers. The PoE+ capability provides up to 30W per port, enabling support for high-power devices. The two 2.5G SFP uplinks offer high-speed connectivity to aggregation switches or servers, reducing bottlenecks. The fanless design ensures silent operation, ideal for office environments. Management is flexible via web GUI, CLI, or SNMP, and the switch supports advanced security features like ACL, port security, and DHCP snooping.

Suitable for

• Small and medium business networks requiring PoE for endpoints
• IP surveillance systems with multiple PoE cameras
• VoIP phone deployments
• Wireless access point powering and connectivity
• Network segmentation with VLANs and QoS for traffic prioritization

Key specifications

• 8 x 10/100/1000Base-T PoE+ ports (IEEE 802.3af/at, up to 30W per port)
• 2 x 2.5G SFP uplink ports
• Total PoE power budget: 128W
• Switching capacity: 26 Gbps, forwarding rate: 19.34 Mpps
• MAC address table: 8K entries, jumbo frame support up to 9 KB
• VLAN support: IEEE 802.1Q, up to 4K VLANs
• QoS: 802.1p, DSCP
• Management: Web GUI, CLI, SNMP v1/v2c/v3
• Security: ACL, port security, DHCP snooping, DoS protection
• Form factor: Desktop, internal AC power supply

Recommendations

For businesses seeking a cost-effective, feature-rich PoE switch with high-speed uplinks, the Huawei S210-8P2J offers an excellent balance of performance, power, and manageability. Its silent operation and compact desktop form factor make it suitable for deployment in offices, retail stores, and small workgroups.
