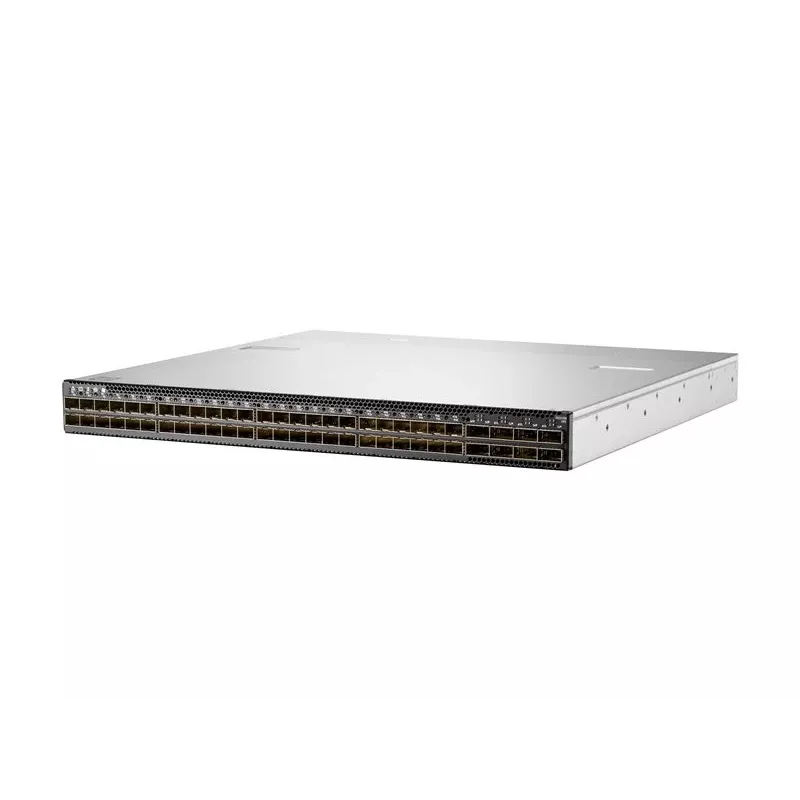

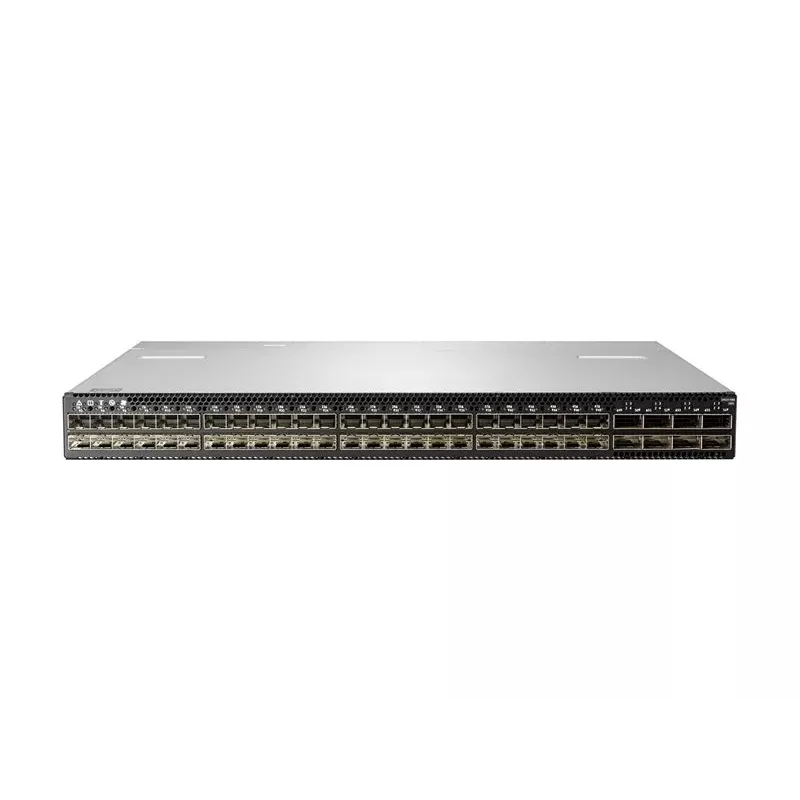

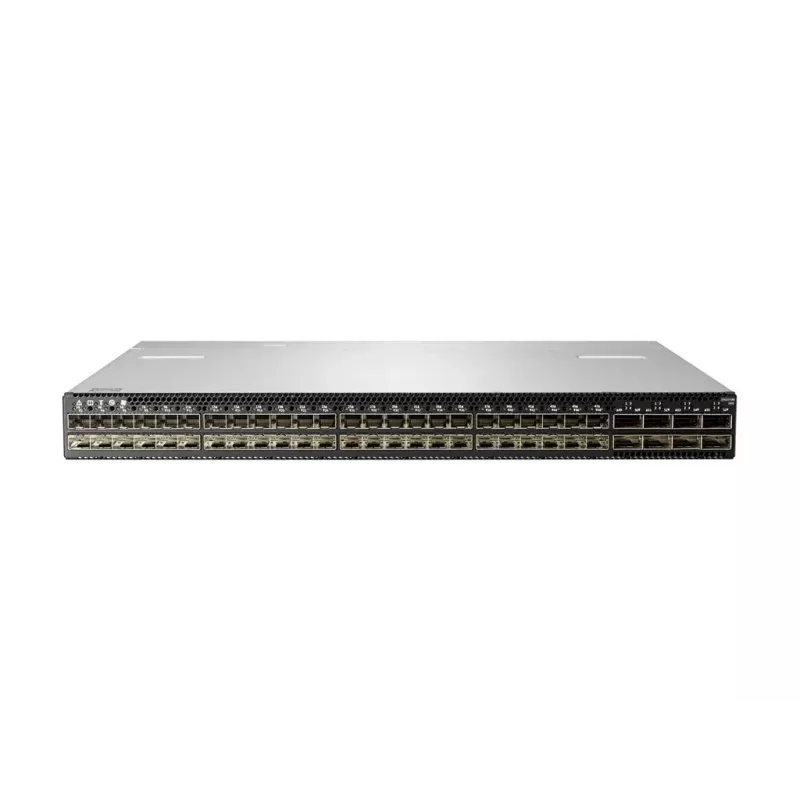

HPE StoreFabric SN2410M 25GbE 48SFP28 8QSFP28 Switch L3 Managed 48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 Rack-mountable

The HPE StoreFabric SN2410M is a high-performance Layer 3 managed Ethernet switch designed for demanding data center and enterprise environments. It offers 48 x 25 Gigabit Ethernet SFP28 ports and 8 x 100 Gigabit Ethernet QSFP28 uplink ports, providing exceptional throughput and low latency for storage and compute workloads.

Advantages

With a switching capacity of 4 Tbps and forwarding rate of 2.976 Bpps, this switch delivers wire-speed performance. It supports advanced protocols such as OSPF, BGP, VRRP, ECMP, MLAG, VXLAN, and RoCE, making it ideal for modern virtualized and cloud networks. The hot-swappable redundant power supplies and configurable airflow ensure high availability and flexibility.

Suitable for

• Data center top-of-rack or leaf-spine deployments
• High-performance computing (HPC) clusters
• Storage area networks (SAN) requiring low latency
• Enterprise networks needing high-density 25GbE and 100GbE connectivity

Key specifications

• Device Type: Ethernet Switch
• Management Type: Layer 3 Managed
• Ports: 48 x 25 Gigabit Ethernet SFP28 + 8 x 100 Gigabit Ethernet QSFP28
• Switching Capacity: 4 Tbps
• Forwarding Rate: 2.976 Bpps
• Latency: <300 ns (port-to-port)
• Form Factor: 1U Rack-mountable
• Jumbo Frame Support: Up to 9KB
• MAC Address Table Size: 160,000 entries
• IPv4 Routing Table Size: 128,000 entries
• IPv6 Routing Table Size: 64,000 entries
• Power Supply Redundancy: Yes, hot-swappable (2x PSUs)
• Airflow Direction: Front-to-Back (configurable)
• Supported Protocols: OSPF, BGP, VRRP, ECMP, MLAG, VXLAN, RoCE
• VLAN Support: 4096 VLANs
• Processor: Intel Broadwell-DE
• Memory: 16 GB RAM, 64 GB SSD

Recommendations

For optimal performance, pair with HPE 25GbE SFP28 transceivers and 100GbE QSFP28 modules. Ensure proper rack mounting and airflow configuration for cooling efficiency.
