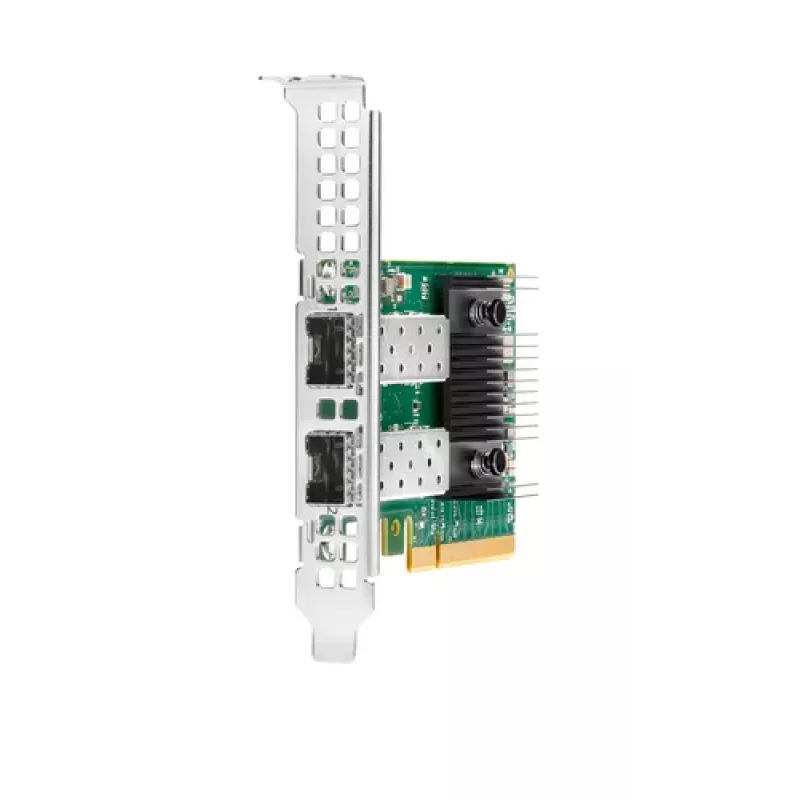

HPE Mellanox ConnectX-6 Lx EN MCX631102AS-ADAT Network Adapter - PCIe 4.0 x8 10GbE/25GbE SFP28 x2

The HPE Mellanox ConnectX-6 Lx EN MCX631102AS-ADAT is a high-performance network adapter designed for demanding data center and enterprise environments. It provides dual-port 10GbE/25GbE connectivity via SFP28 interfaces, leveraging PCIe 4.0 x8 for maximum throughput and low latency.

Advantages

This adapter delivers exceptional performance for virtualized and cloud workloads, with advanced features such as RDMA, RoCE, and hardware offloads. It supports both 10GbE and 25GbE speeds, offering flexibility and future-proofing for network upgrades.

Suitable for

• Data centers requiring high-bandwidth, low-latency networking
• Enterprise servers running virtualized environments
• High-performance computing (HPC) clusters
• Storage networks leveraging NVMe over Fabrics

Key specifications

• Brand: HPE
• Model: Mellanox ConnectX-6 Lx EN
• MPN: MCX631102AS-ADAT
• Product Type: PCIe Network Adapter
• Host Interface: PCIe 4.0 x8
• Network Type: Ethernet
• Data Transfer Rate: 10 Gbps / 25 Gbps
• Connector Type: SFP28
• Fiber Ports Quantity: 2
• Fiber Optic Connector: SFP28
• Form Factor: Low Profile PCIe Card
• Chipset: Mellanox ConnectX-6 Lx
• PCI Version: 4.0
• Ethernet LAN: Yes
• Ethernet LAN Data Rates: 10,25 Gbps
• Flow Control Support: Yes
• Maximum Data Transfer Rate: 25 Gbps
• Compatible Operating Systems: Linux, Windows Server, VMware ESXi
• LED Indicators: Link/Activity
• Product Colour: Green

Recommendations

This adapter is ideal for organizations seeking to enhance network performance with 25GbE connectivity. Ensure your server has a PCIe 4.0 x8 slot and compatible SFP28 transceivers for optimal operation.
