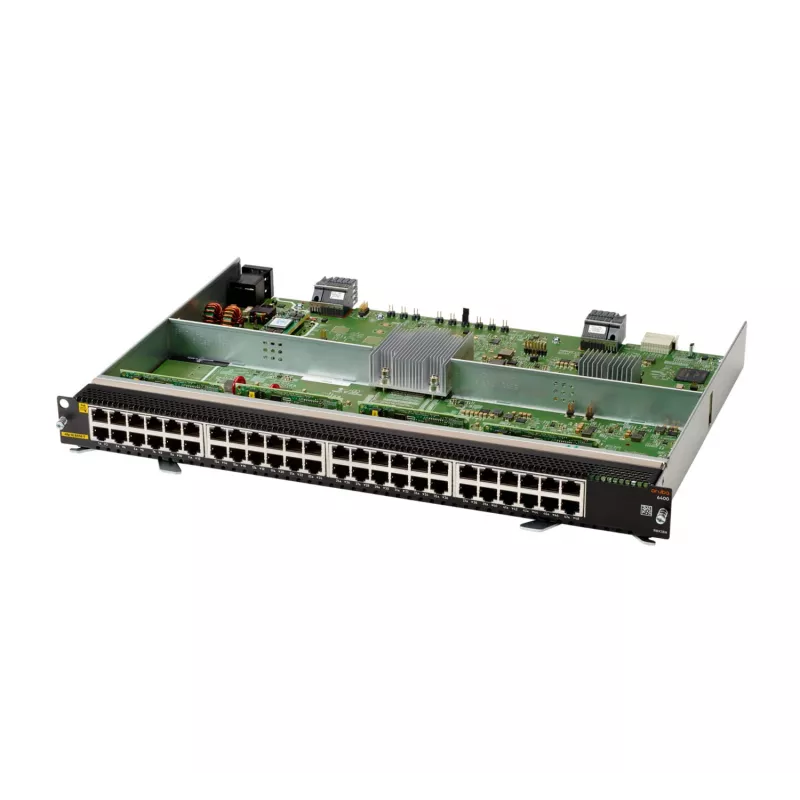

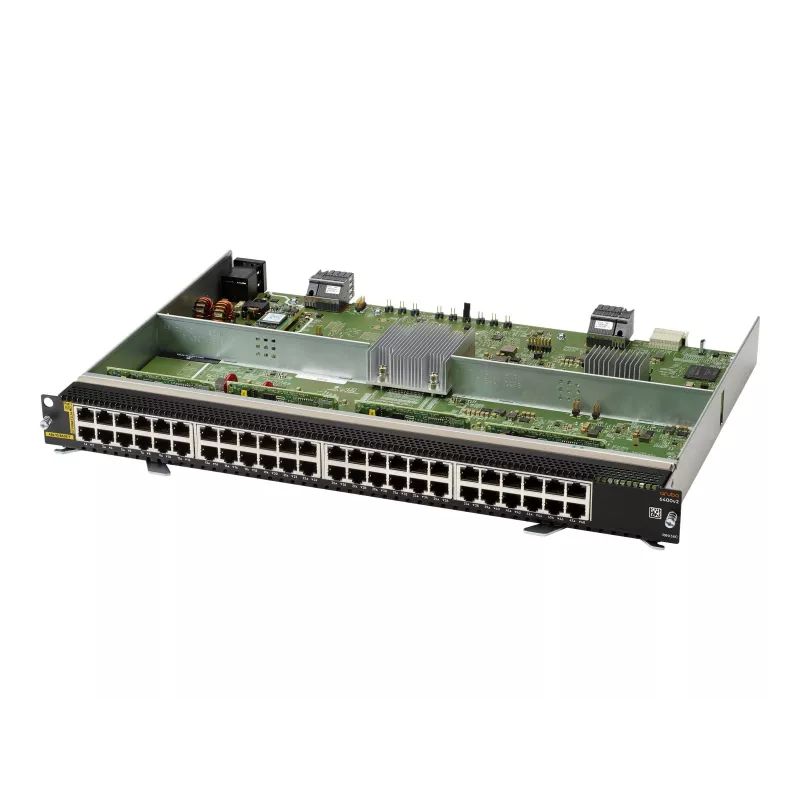

HP ENTERPRISE HPE Aruba Networking 6400 48-Port 1GbE Class 4 PoE v2 Module - Switch Module - L3 - 48 x 10/100/1000 (PoE)

The HPE Aruba Networking 6400 48-Port 1GbE Class 4 PoE v2 Module is a high-performance switch module designed for the HPE Aruba 6400 Series modular switches. It provides 48 ports of Gigabit Ethernet with Class 4 Power over Ethernet (PoE+) support, delivering up to 30W per port for powering devices such as IP phones, wireless access points, and security cameras. This module is ideal for enterprise campus and data center deployments requiring reliable, high-density access layer connectivity.

Advantages

This module offers seamless integration with HPE Aruba 6400 Series chassis, enabling flexible and scalable network expansion. With advanced features like VSX (Virtual Switching Extension) for high availability and NAE (Network Analytics Engine) for real-time monitoring, it ensures robust performance and simplified management. The module supports jumbo frames, auto-negotiation, and auto MDI/MDI-X for easy deployment.

Suitable for

• Enterprise campus access layer
• Data center top-of-rack or aggregation
• Deployments requiring PoE+ for IoT devices
• Organizations needing modular, scalable switching

Key specifications

• 48 x 10/100/1000Base-T RJ-45 ports
• Class 4 PoE (IEEE 802.3at) with up to 30W per port
• Total PoE power budget up to 1440W (system dependent)
• Layer 3 switching
• Plug-in module form factor for HPE Aruba 6400 Series
• Operating temperature: 0°C to 45°C
• Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3at

Recommendations

For optimal performance, pair this module with an HPE Aruba 6400 Series chassis and ensure adequate power budget for PoE devices. Refer to the user guide for installation and configuration details.
