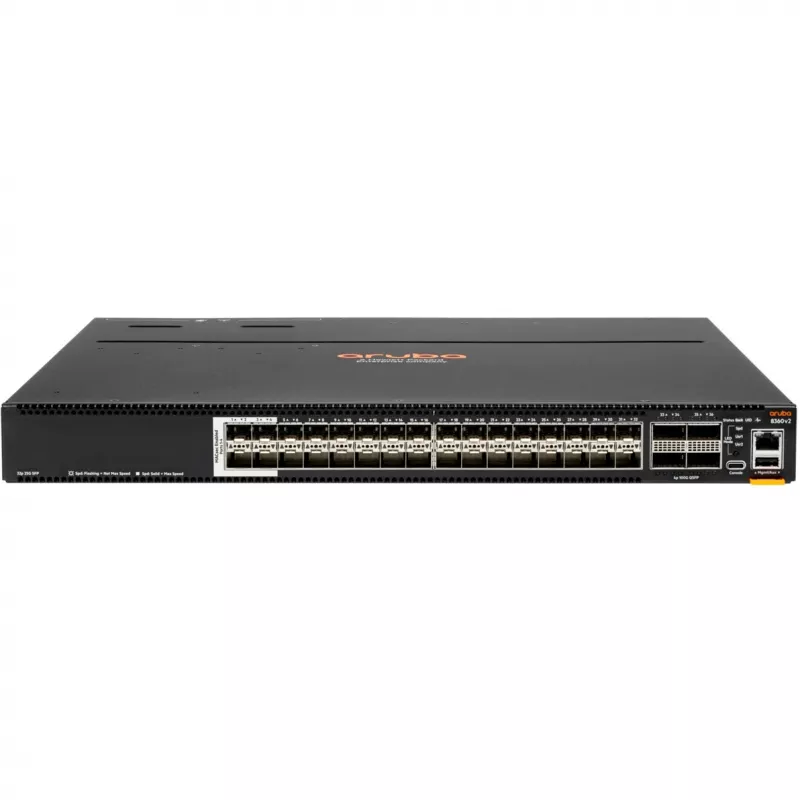

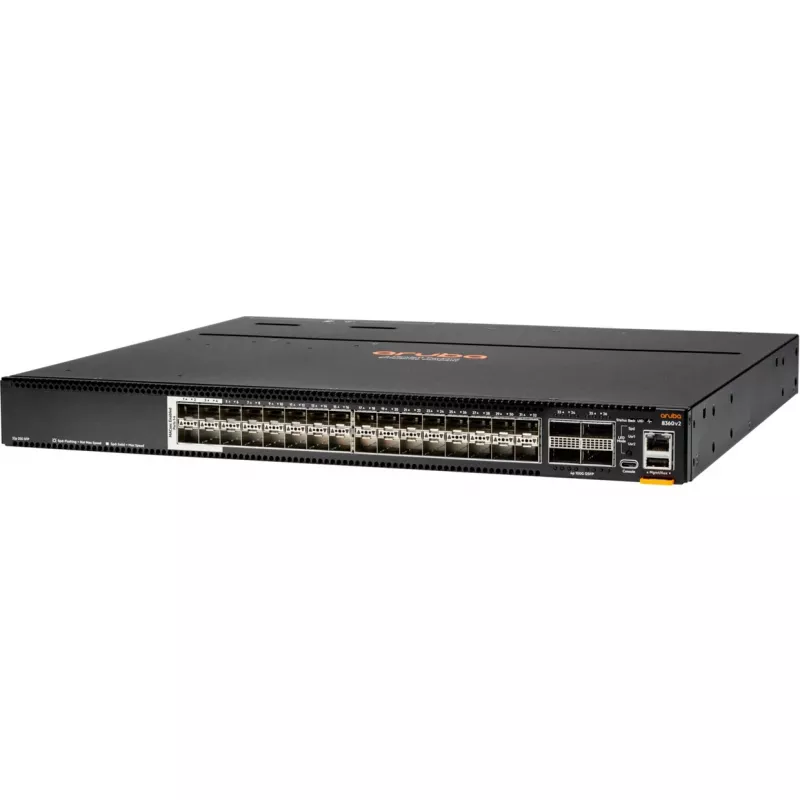

HP ENTERPRISE HPE Aruba CX 8360-32Y4C V2 Switch L3 Managed 32x40GbE/100GbE 4x100GbE

The HPE Aruba CX 8360-32Y4C V2 Switch is a high-performance, Layer 3 managed switch designed for demanding data center and campus environments. With 32 ports of 40GbE/100GbE and 4 ports of 100GbE, it delivers exceptional throughput and low latency for high-bandwidth applications. Powered by the Aruba AOS-CX operating system, it offers advanced automation, analytics, and security features.

Advantages

High-density 100GbE connectivity with 6.4 Tbps switching capacity and 2500 Mpps forwarding rate ensures seamless performance for virtualized workloads and storage traffic. Dual hot-swappable power supplies and fan trays provide redundancy and high availability. The quad-core ARM processor and 16 GB DDR4 memory enable robust processing capabilities.

Suitable for

• Data center spine-and-leaf architectures
• High-performance computing clusters
• Enterprise campus aggregation
• Virtualized and cloud environments

Key specifications

• Port Configuration: 32 x 40GbE/100GbE QSFP+/QSFP28, 4 x 100GbE QSFP28
• Switching Capacity: 6.4 Tbps
• Forwarding Rate: 2500 Mpps
• Operating System: Aruba AOS-CX
• Layer Support: Layer 2, Layer 3
• Processor: Quad-core ARM Cortex A72 @ 1.8 GHz
• System Memory: 16 GB DDR4
• Flash Memory: 32 GB eMMC
• Power Supplies: 2 x 1600W AC hot-swappable (included)
• Redundancy: Dual hot-swappable power supplies, hot-swappable fan trays
• Form Factor: 1U Rack-mountable
• MAC Address Table Size: 136,000 entries
• VLAN Support: 4094 VLANs
• Jumbo Frame Support: Up to 9198 bytes
• Airflow: Front-to-back
• Management Ports: 1 x RJ-45 Console, 1 x USB-C Console, 1 x USB Type-A, 1 x RJ-45 OOBM
• Latency: 1 µs (64-byte packets)

Recommendations

Ideal for organizations requiring high-speed, low-latency switching with advanced Layer 3 features. The Aruba CX 8360-32Y4C V2 is a future-proof solution for next-generation data centers.
