Horn speaker ERNITEC 0070-24186-HB3000-P (horn speaker, model 0070-24186-HB3000-P)

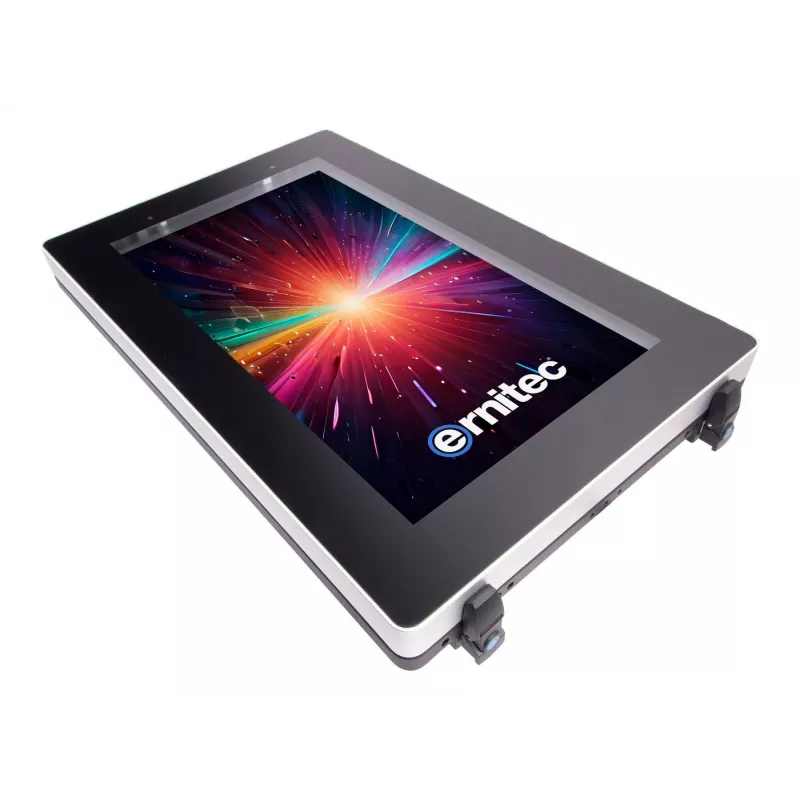

Ernitec Water & Vandal Proof Monitor is a 4K HD portrait-mode display designed for demanding outdoor and public environments. The monitor features a high-performance industrial-grade LED panel with 3000 nits brightness, wide 178° viewing angle and a metal chassis built to resist interference and support continuous use. It includes a heavy-duty outdoor wall bracket and supports flexible VESA 1000x1000 mounting for straightforward installation.

Advantages

The monitor delivers exceptional brightness, contrast and definition for clear visibility even in bright ambient light. Advanced 3D digital filtering and noise reduction ensure crisp images, while fast response time maintains smooth transitions for dynamic content. Constructed for reliability, it supports 24/7 operation and is rated to function continuously for up to five years. The robust metal housing is anti-static and anti-magnetic to minimise interference, and the unit operates across a wide temperature range from -30 °C to 85 °C.

Key specifications

• Display mode: Portrait, 4K HD
• Brightness: 3000 nits
• Viewing angle: 178°
• Durability: Front IP67 waterproof, rear IP65
• Vandal protection: Front IK10
• Operation: 24/7 continuous use, up to 5 years

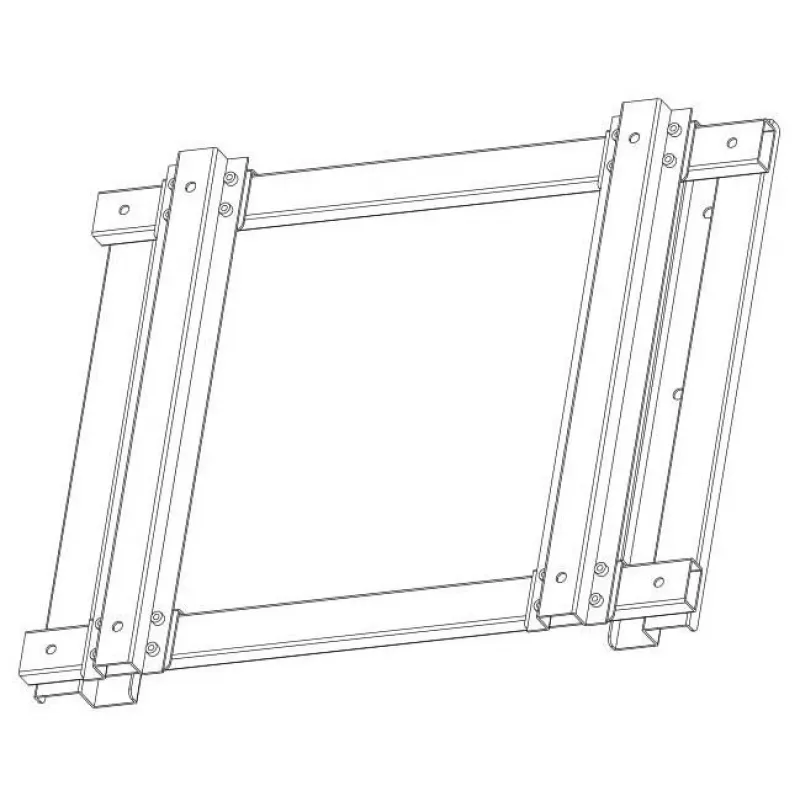

• Mounting: VESA 1000x1000, heavy-duty outdoor wall bracket included
• Extras: HDMI cable included
• Operating temperature: -30 °C to 85 °C

How to use

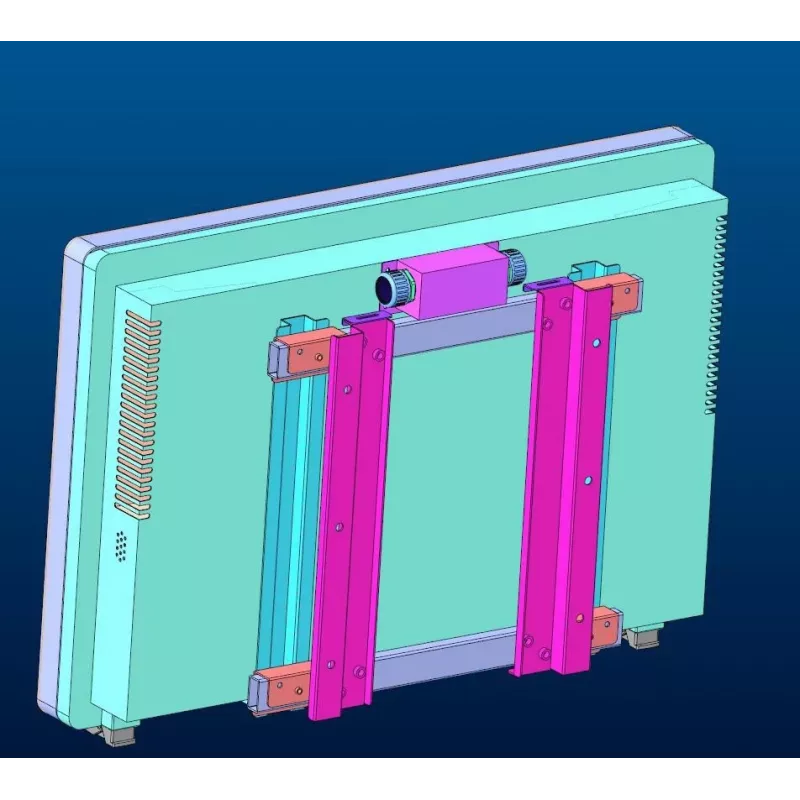

Install the monitor using the supplied heavy-duty outdoor wall bracket or a compatible VESA 1000x1000 mount, ensuring secure attachment to a stable surface. Connect a video source via the HDMI input and configure resolution and orientation for portrait mode. Verify that external cabling is weatherproofed at connection points and that the rear enclosure is mounted facing away from direct water ingress where possible. For uninterrupted operation, provide appropriate ventilation and regular inspections according to the installation environment.

Recommendations

Use the monitor in locations with adequate structural support and ensure all external power and signal cables are sealed to maintain the IP67/IP65 protection. Schedule periodic visual inspections and cleaning of the front surface to preserve image clarity. For extended outdoor installations, confirm that surrounding fixtures do not obstruct ventilation and that the mounting complies with local safety regulations.
