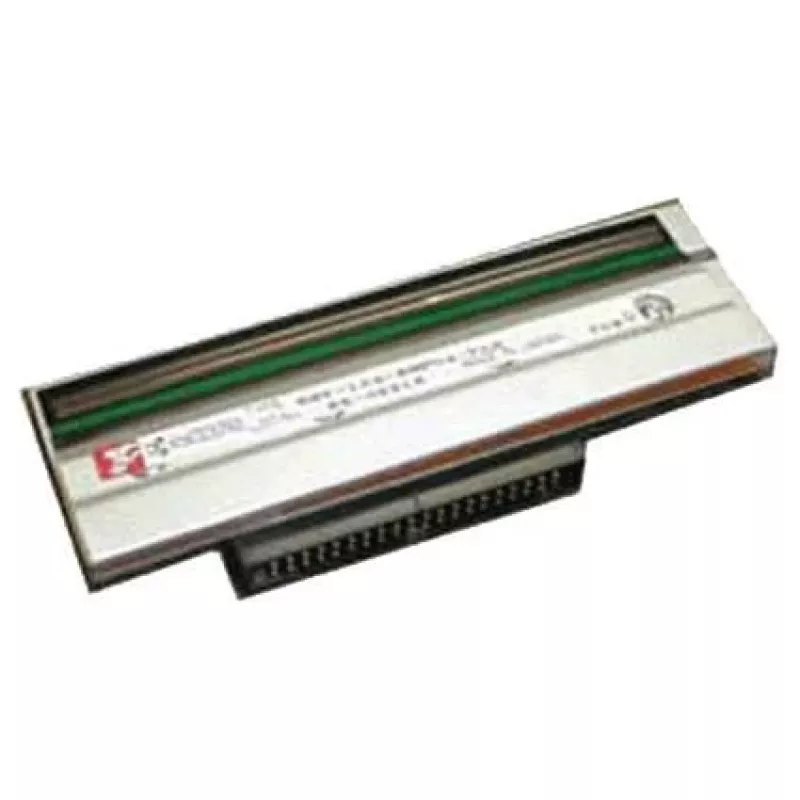

Print Head Datamax O'Neil PHD20-2268-01

The Datamax O'Neil PHD20-2268-01 print head is designed for direct thermal printing and fits Datamax-Oneil I-4212e Mark II, I-4310e Mark II, and I-4606e Mark II printers. Supplied in a box, this replacement print head produces reliable black thermal impressions and is intended for use in compatible Honeywell/Datamax printing equipment.

Advantages

This print head supports direct thermal technology to deliver consistent black prints without the need for ink or ribbon. It is produced to match the physical and electrical specifications of the listed Datamax-Oneil models, simplifying replacement and minimizing downtime. The unit arrives boxed for safe transport and straightforward handling during installation.

Suitable for

• Replacing a worn or damaged print head in Datamax-Oneil I-4212e Mark II
• Service or maintenance of Datamax-Oneil I-4310e Mark II
• Repairing Datamax-Oneil I-4606e Mark II thermal printers

Key specifications

• Brand: Honeywell (Datamax O'Neil)
• Manufacturer part number (MPN): PHD20-2268-01
• EAN: 5711045561740
• Printing method: Direct thermal
• Printing colours: Black
• Packaging: Boxed

How to use

Power off the printer and follow the manufacturer’s service instructions to access the print head assembly. Remove the defective print head according to the printer manual and install the PHD20-2268-01 unit in the same orientation, ensuring all connectors and securing screws are properly seated. After installation, power on the printer and run a test print to confirm correct operation.

Recommendations

Handle the print head carefully to avoid touching the thermal surface and use appropriate ESD protection during installation. Use only media recommended for direct thermal printing to maintain print head life and print quality.
