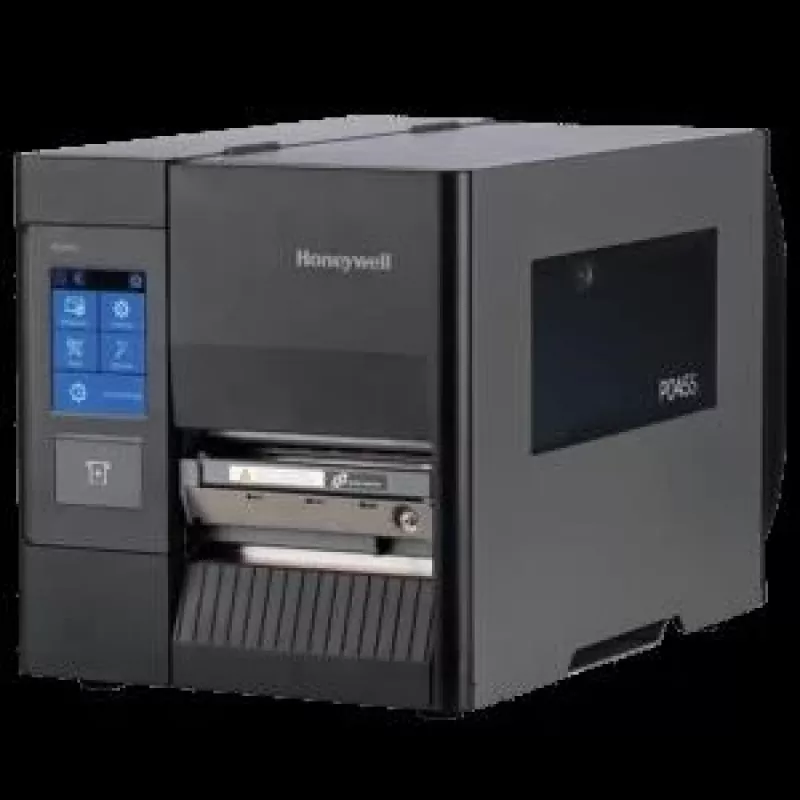

Honeywell PD45S1F Direct Thermal / Thermal Transfer Label Printer - 203 dpi, 200 mm/s, 108 mm Width, USB, Ethernet, Serial, Color LCD

The Honeywell PD45S1F is a high-performance industrial label printer designed for demanding printing environments. Combining direct thermal and thermal transfer technologies, it delivers crisp, durable labels for a wide range of applications including logistics, manufacturing, healthcare, and retail. With a print speed of up to 200 mm/s and a maximum print width of 108 mm, this printer ensures efficient and reliable operation.

Advantages

Dual printing technology offers flexibility for various media types, while the robust metal frame and plastic cover ensure longevity. The 2.36-inch color LCD provides intuitive status updates and easy configuration. Advanced emulations (Fingerprint, DPL, IPL, ZSim2, ESim) guarantee seamless integration into existing systems.

Suitable for

• Warehouse and logistics labeling
• Product and asset tracking
• Healthcare specimen and patient identification
• Retail price marking and shelf labels
• Manufacturing compliance and barcode labels

Key specifications

• Print Technology: Direct Thermal / Thermal Transfer
• Print Resolution: 203 dpi
• Max Print Speed: 200 mm/s (8 ips)
• Max Print Width: 108 mm (4.25 inches)
• Max Print Length: 4800 mm (189 inches)
• Media Types: Roll-fed, Fan-fold, Die-cut, Continuous, Tag stock
• Max Media Roll Diameter: 203 mm (8 inches)
• Media Core Diameter: 25.4 mm - 76 mm (1 inch - 3 inches)
• Ribbon Length: Up to 450 m (1476 ft)
• Interfaces: USB Host, USB Device, Ethernet (RJ-45), Serial (RS-232)
• Memory: 128 MB RAM, 128 MB Flash
• Processor: ARM Cortex-A7, 800 MHz
• Display: 2.36-inch Color LCD
• Emulations: Fingerprint, DPL, IPL, ZSim2 (ZPL-II), ESim (EPL)
• Barcode Symbologies: 1D & 2D (Code 39, Code 128, UPC, EAN, QR Code, Data Matrix, PDF417)
• Sensors: Gap, Black Mark, Notch, Continuous
• Construction: Metal frame, Plastic cover
• Operating Temperature: 5°C to 40°C (41°F to 104°F)

Recommendations

For optimal performance, use genuine Honeywell media and ribbons. The printer supports a wide range of label sizes and materials, making it a versatile choice for any labeling task. Ensure proper ventilation and avoid exposure to extreme temperatures.
