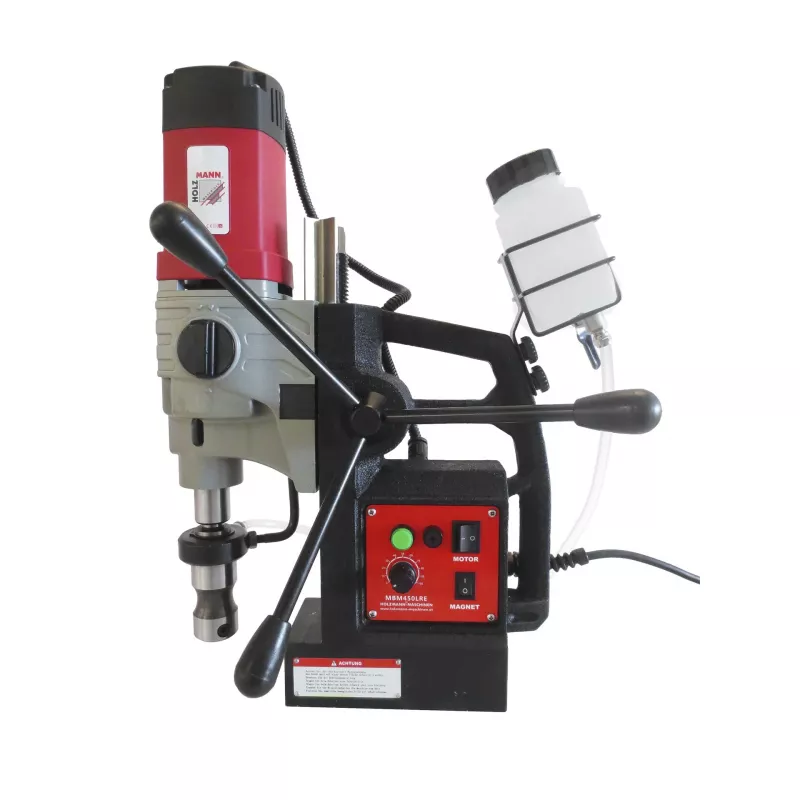

HOLZMANN MASCHINEN MBM450LRE Magnetic Drilling Machine 1200W

The HOLZMANN MASCHINEN MBM450LRE is a professional magnetic drilling machine designed for heavy-duty metalworking. With a powerful 1200W motor and variable speed control, it delivers precise drilling in steel and other ferrous materials. The integrated coolant system and reversible rotation enhance efficiency and tool life.

Advantages

High magnetic holding force of 14000 N ensures secure attachment. Electronic variable speed allows optimal adjustment for different drill sizes. Overload protection safeguards the motor. Compact design with stroke of 160 mm enables deep drilling.

Suitable for

• Metal fabrication workshops
• Construction sites for steel structures
• Maintenance and repair operations
• Industrial manufacturing

Key specifications

• Motor Power: 1200 W
• Voltage: 230 V / 50 Hz
• Spindle Speed Stage 1: 200 - 450 rpm (variable)
• Spindle Speed Stage 2: 280 - 650 rpm (variable)
• Tool Holder: MT2 (Morse Taper 2)
• Max. Core Drilling Diameter: 45 mm
• Max. Twist Drilling Diameter: 13 mm
• Max. Drilling Depth: 50 mm
• Magnetic Holding Force: 14000 N
• Stroke: 160 mm
• Magnetic Base Dimensions: 170 x 85 mm
• Speed Control: Electronic, Variable
• Reversible Rotation: Yes (Left/Right)
• Coolant System: Integrated
• Overload Protection: Yes

Recommendations

For optimal performance, use high-quality core drills and twist drills suitable for magnetic drilling machines. Ensure the workpiece is clean and flat for maximum magnetic adhesion.
