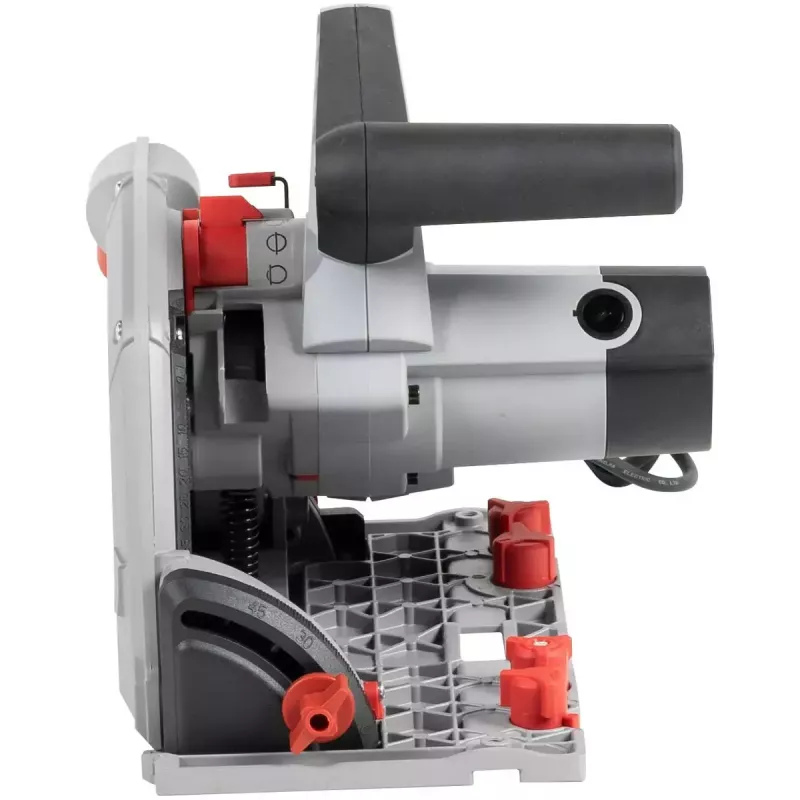

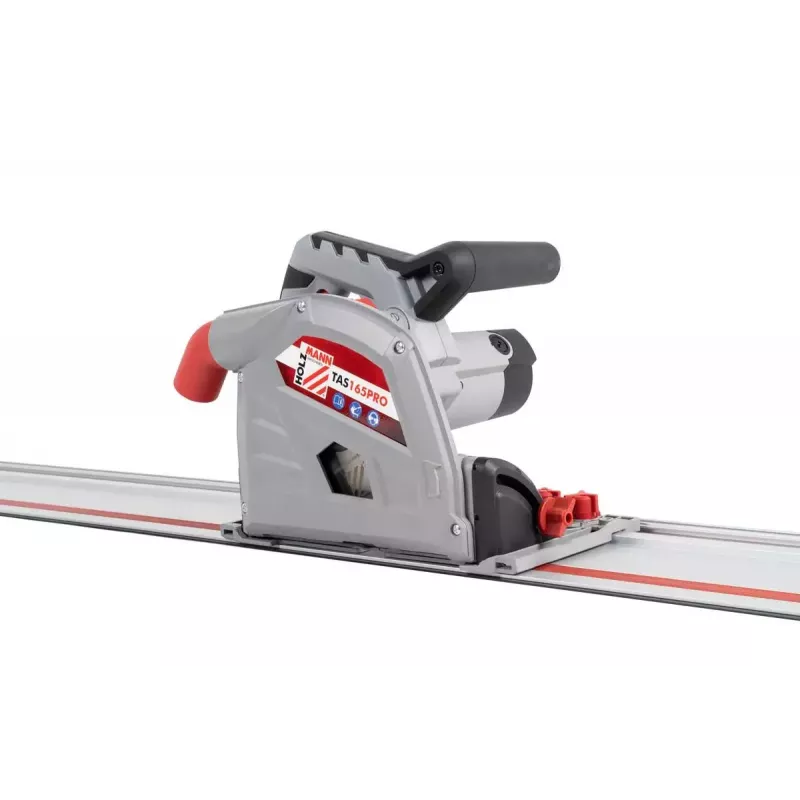

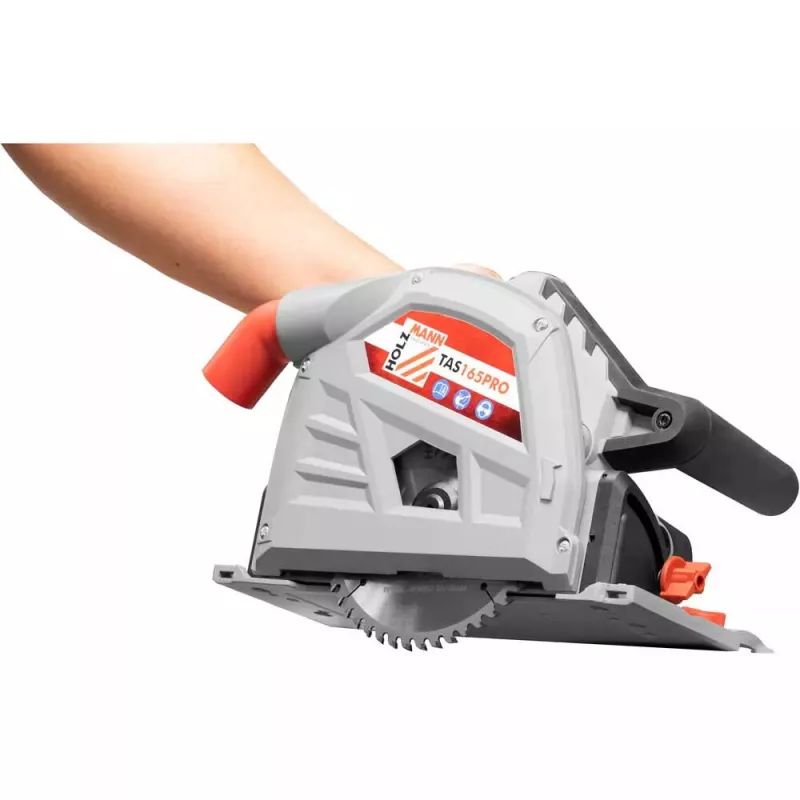

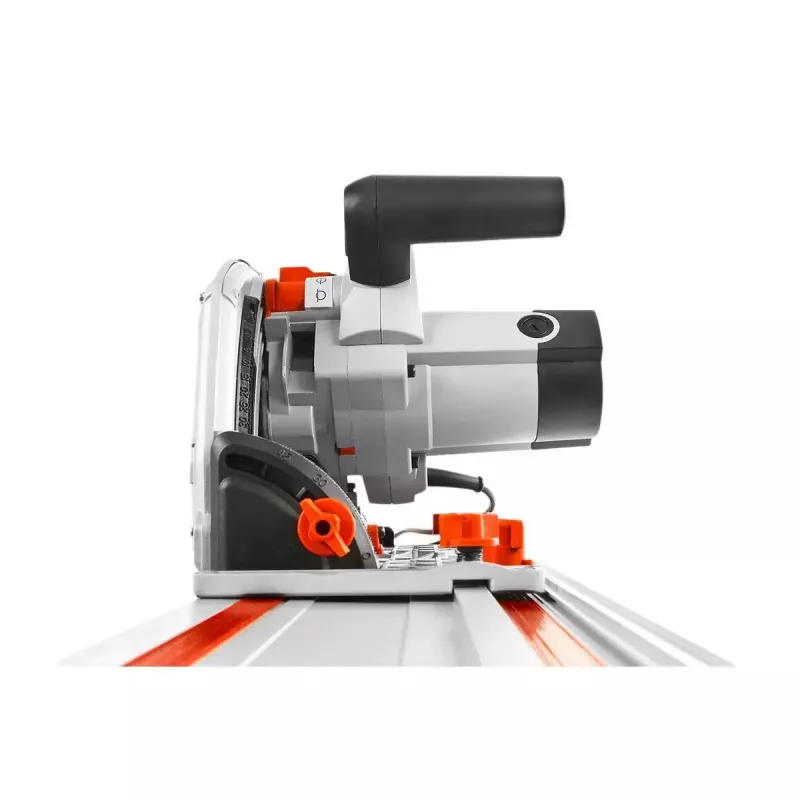

Circular Saw Holzmann TAS165PRO

The Holzmann TAS165PRO is a portable circular saw designed for straightforward woodcutting tasks. It features a 16.5 cm blade diameter and a 1400 W motor that delivers reliable power for rip cuts and crosscuts. The saw runs at a maximum no-load speed of 5000 RPM and achieves a cutting depth of 5.4 cm at 90°, with a blade thickness of 2.5 mm. At 5.5 kg, the tool balances mobility and stability for on-site and workshop use and is mains powered at 230 V.

Advantages

The tool combines a compact 16.5 cm blade with a relatively high-power 1400 W motor, providing efficient cutting performance for common woodworking applications. Its 5000 RPM no-load speed supports smooth blade operation while the 5.4 cm maximum cutting depth at 90° covers most standard board thicknesses. The 2.5 mm blade thickness contributes to stable cuts, and the 5.5 kg weight keeps the saw portable enough for transport without sacrificing handling comfort. The 230 V AC supply ensures compatibility with standard workshop and site power.

Suitable for

• Crosscutting and ripping of softwood and hardwood boards
• On-site carpentry and remodeling work
• Cutting plywood, MDF and other sheet materials
• Precision cuts for furniture assembly and shelving

Key specifications

• Blade diameter: 16.5 cm
• Motor power: 1400 W
• No-load speed: up to 5000 RPM
• Maximum cutting depth at 90°: 5.4 cm
• Blade thickness: 2.5 mm
• Weight: 5.5 kg
• Power supply: AC 230 V

How to use

Secure the workpiece on a stable surface or sawhorses and mark the cutting line. Fit a compatible 16.5 cm blade and check that the blade is tightened and undamaged. Set the cutting depth to slightly greater than the material thickness and confirm the angle is at 90° for straight cuts. Connect the saw to a 230 V mains supply, switch it on and allow it to reach full speed before engaging the cut. Feed the saw steadily along the marked line without forcing the tool; maintain firm grip and control throughout the cut. After finishing, release the trigger, wait for the blade to stop, and disconnect the mains before making adjustments or changing the blade.

Recommendations

Use appropriate personal protective equipment, including eye and ear protection and a dust mask. For cleaner cuts on sheet materials, support the cut edge to reduce splintering and select a blade with a tooth count suited to the material. Regularly inspect and replace worn or damaged blades, and keep the saw’s base plate and fence clean for accurate cutting.
