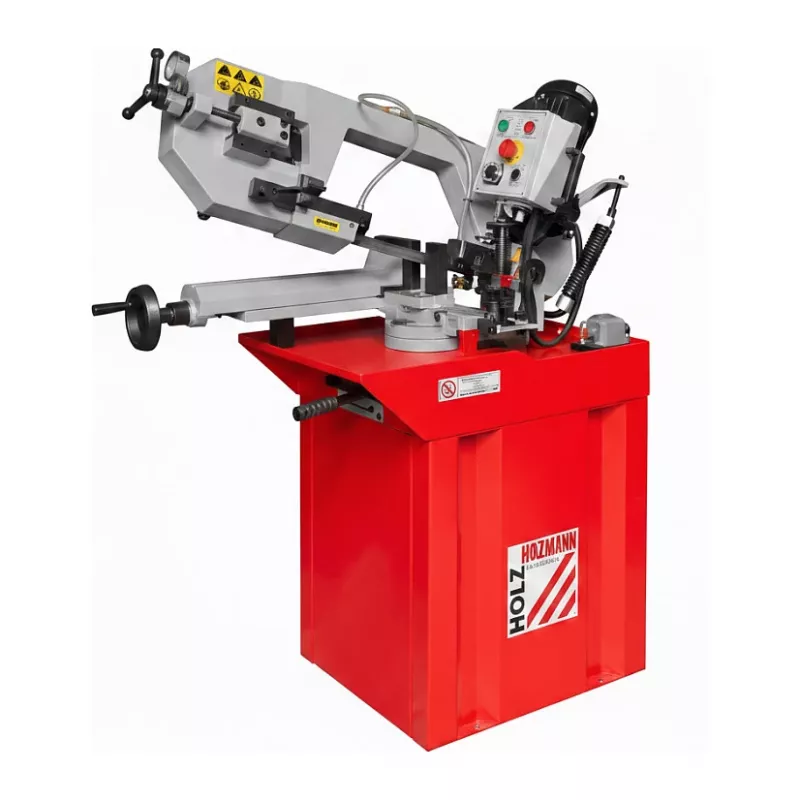

Holzmann BS275TOP 400V Metal Band Saw

In a busy metalworking shop, cutting through solid steel billets and thick-walled profiles demands a machine that combines power, precision, and durability. The Holzmann BS275TOP 400V is a horizontal metal band saw built for exactly that environment. Its robust 1.5 kW motor (S1 100% duty cycle) and 2.1 kW peak output (S6 40%) drive a 2450 mm blade through round stock up to 225 mm in diameter and rectangular sections up to 275 x 180 mm at 90°. Swivel the saw frame to 45° and you still get a 160 mm round or square capacity. Hydraulic blade lowering, a quick-release vice, and automatic shut-off after each cut keep production flowing with minimal operator fatigue.

Key specifications

• Motor power: 1.5 kW (S1 100%) / 2.1 kW (S6 40%)
• Voltage: 400 V / 3-phase / 50 Hz
• Saw blade dimensions: 2450 x 27 x 0.9 mm
• Blade speeds: 45 / 90 m/min
• Cutting capacity at 90°: round Ø 225 mm, square 200 x 200 mm, rectangular 275 x 180 mm
• Cutting capacity at 45°: round Ø 160 mm, square 160 x 160 mm, rectangular 160 x 160 mm
• Saw frame swivel range: 0° to +45°
• Coolant pump power: 40 W
• Blade lowering control: hydraulic cylinder (stepless)
• Automatic shut-off after cut
• Quick-release vice
• Mobile undercarriage with wheels

Why choose it

The BS275TOP 400V stands out for its heavy-duty construction and user-friendly features. The hydraulic feed control ensures smooth, consistent cuts, while the automatic shut-off prevents unnecessary blade wear and saves energy. Its three-phase motor delivers reliable torque for continuous operation, and the mobile base lets you reposition the saw easily in a crowded workshop. This is a machine that grows with your production needs, handling everything from single prototypes to small batch runs.

Ideal use cases

• Cutting solid steel bars and rods up to 225 mm diameter
• Sectioning square and rectangular tubing for frames and structures
• Miter cutting at 45° for welding preparation
• Production cutting in metal fabrication shops
• Maintenance and repair operations requiring accurate, repeatable cuts

Good to know

The saw comes with a coolant system to extend blade life and improve cut quality. The quick-release vice speeds up workpiece changes, and the swiveling saw frame eliminates the need to reposition heavy material for angled cuts. With its robust build and professional features, the Holzmann BS275TOP 400V is a reliable workhorse for any metalworking operation.
